Key Features:
- Universal Compatibility: Works on OBDII compliant vehicles from 1996 and later, including US, European, and Asian models.
- Full OBDII Functions: Supports all OBDII protocols and functions, including reading and clearing DTCs, retrieving live data, and checking monitor and I/M readiness status.
- Large LCD Display: Features a 2.8-inch LCD screen for clear display of test results.
- Over 8,000 Code Definitions: A built-in library helps identify the cause of the check engine light.
- Memory Backup: Allows for off-vehicle data review and analysis.

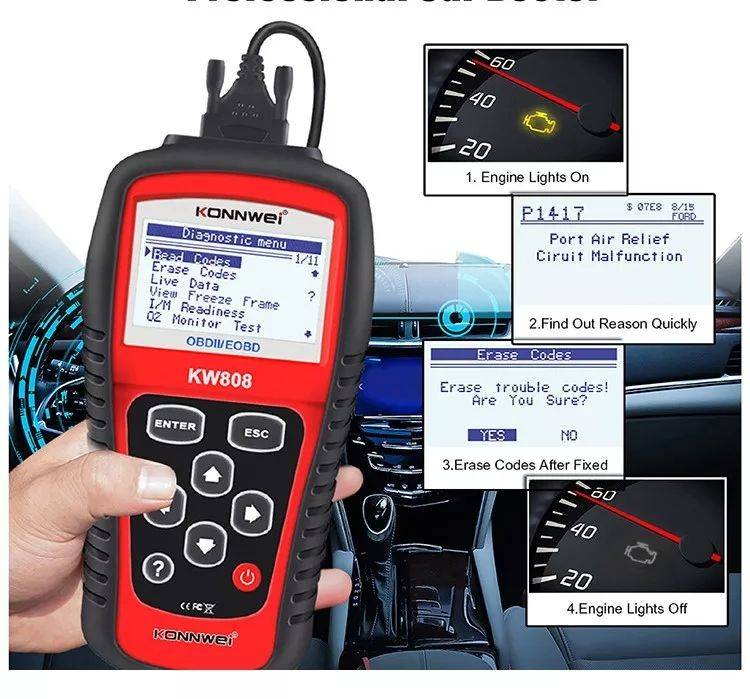

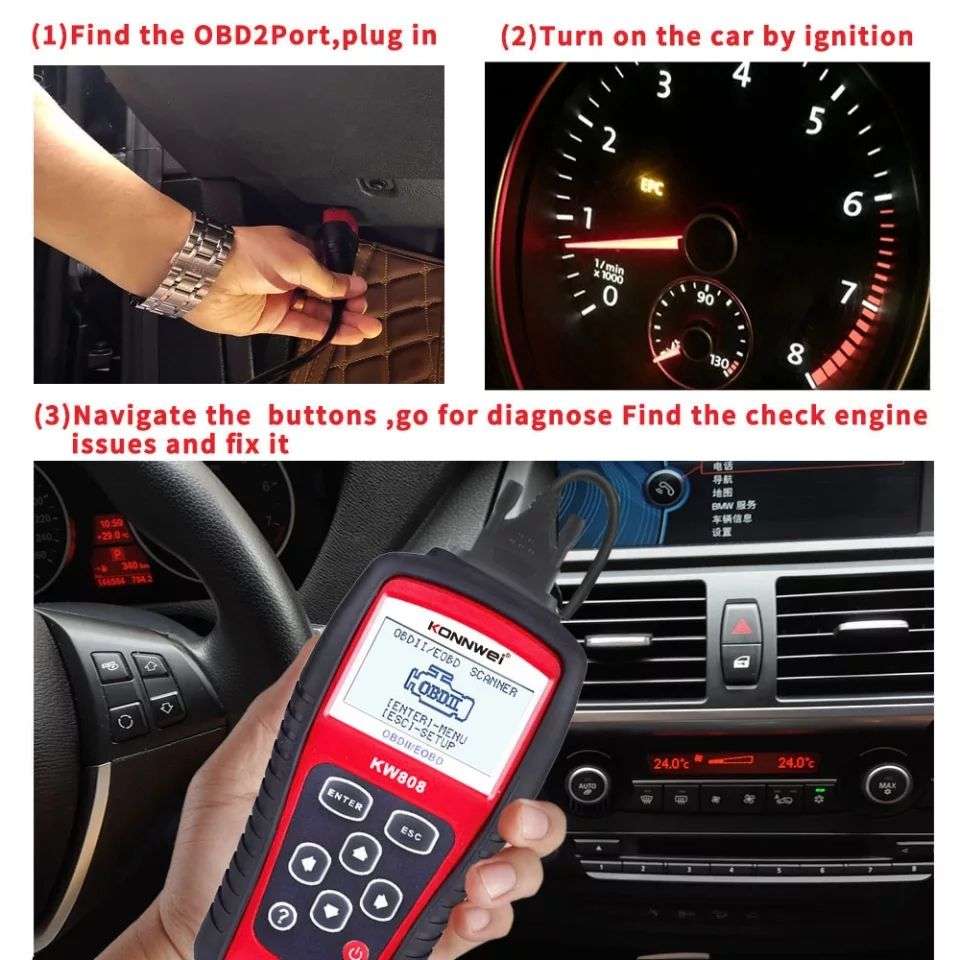

How it Works:
- Plug into OBD II Port: Connect the KW808 to the vehicle's OBD II port, usually located under the steering column.
- Turn on Ignition: Turn the ignition key to the "on" position.
- Start Scanning: The scanner will automatically begin reading and displaying diagnostic information.

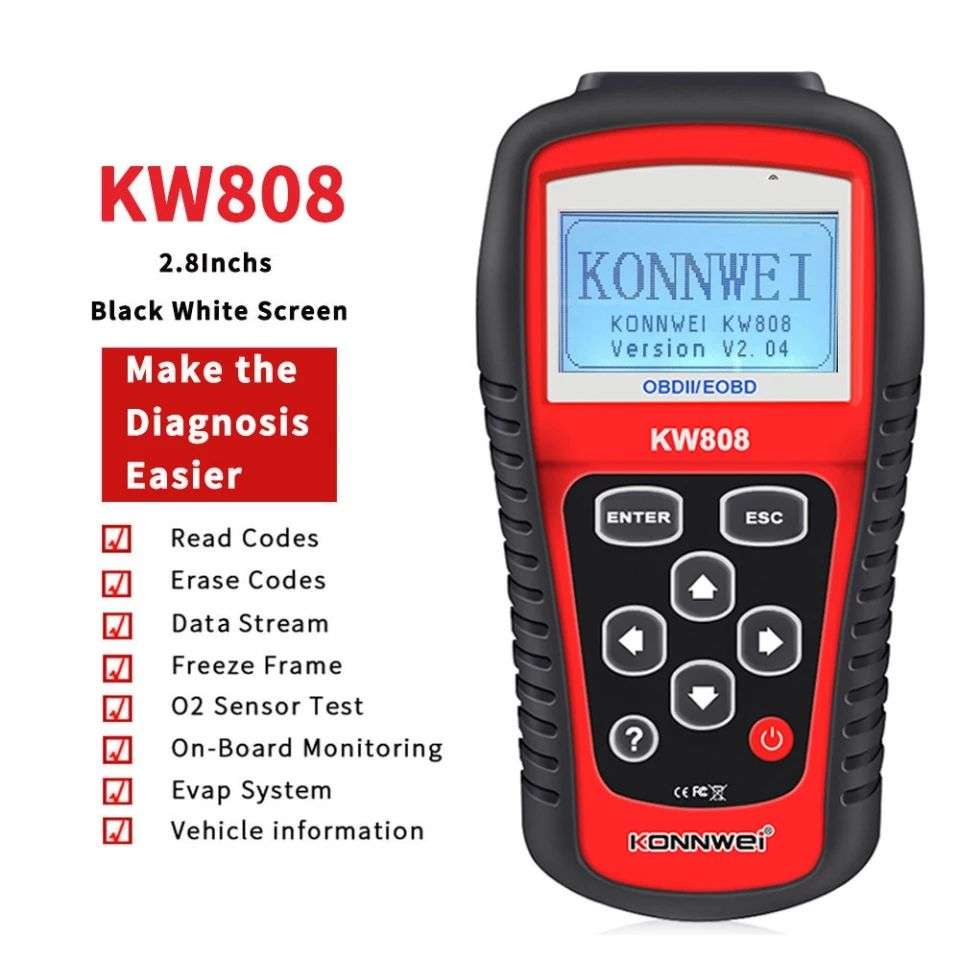

The KW808 OBDII/EOBD Code Reader supports all nine OBDII test modes on all OBDII EOBD compliant vehicles to enable technicians and home users to accurately diagnose even the toughest problems. Sophisticated yet easy-to-use, this hand-held scanning tool enables fast and easy access to engine based EOBD Fault codes, The CAN enabled tool gives clear, concise DTC definitions on its large back-lit LCD screen retrieves generic P0, P2 and P3 and U0 codes for engine emissions and also picks up manufacturer specific P1, P3 and U1 codes, Turns off MIL light, Stores freeze frame data for later evaluation and will also display monitor and I/M readiness status.
Product Features & Functions:
Works on all 1996 and later OBDII compliant US, European and Asian vehicles
Easily determines the cause of the Check Engine Light ( MIL)
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Displays monitor and I/M readiness status (emissions)
Identifies pending codes
Reads live PCM datastream
Displays live O2 sensor test data
Graphs data C (1996 and newer)
Reads, stores & playbacks live sensor data
Memory/battery backup for off-vehicle data review and analysis
Multilingual menu:--- English, Spanish, French,German
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current
OBD-II protocols

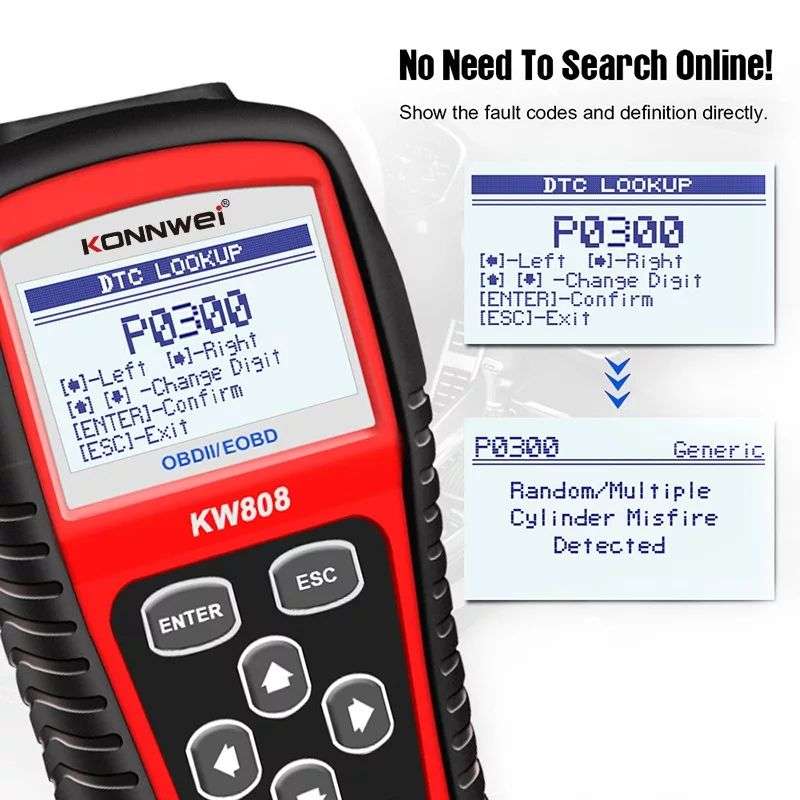

Built-in OBD-II DTC lookup library
Large easy-to-read backlit LCD screen
Software upgradeable via internet
Prints data via PC
Works with the following:
OBDII/EOBD coverage(US, Asian & European) Reads & clears generic and some maunfactures trouble codes.

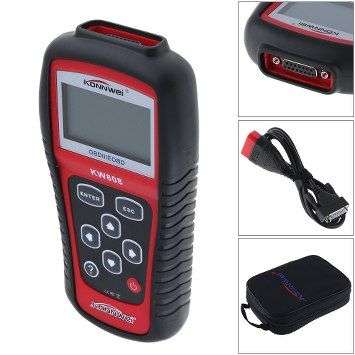

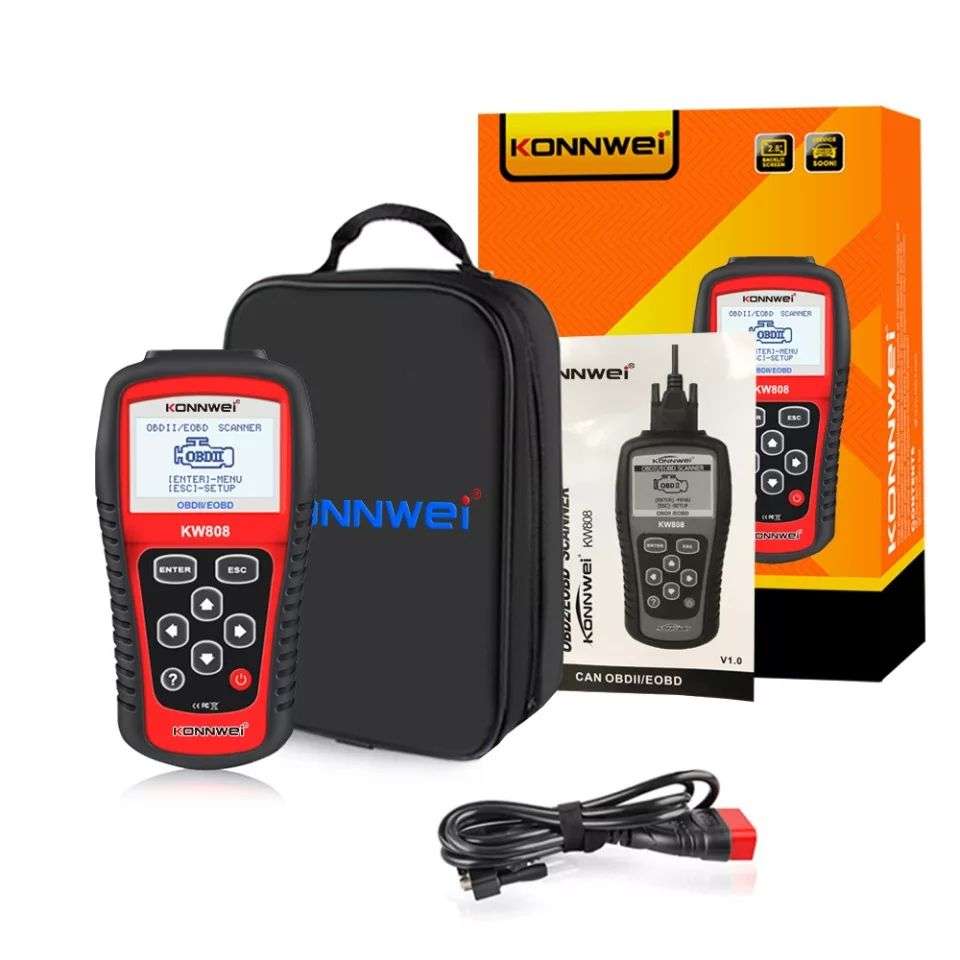

What's in the box
Diagnostic Scanner
6-foot OBDII Cable
CD Software
Manual
Nylon Carry Case
