KONNWEI KW903 Car Auto ELM327 OBD2 OBD-II CAN-BUS Diagnostic Scanner with Bluet

Package weight: 0.08 kg

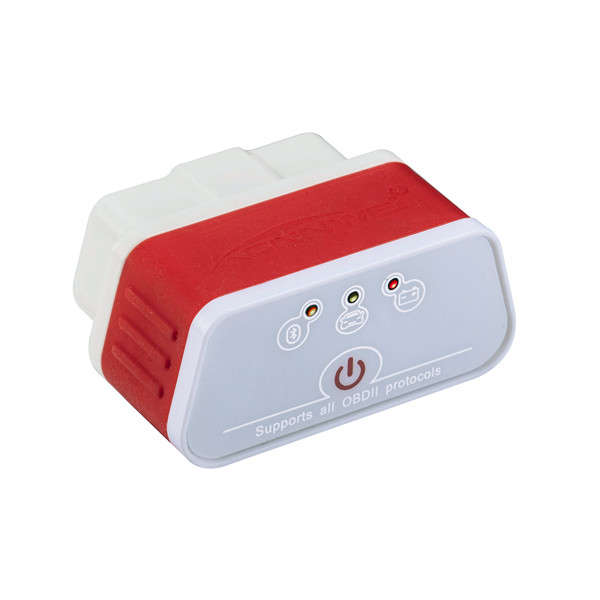

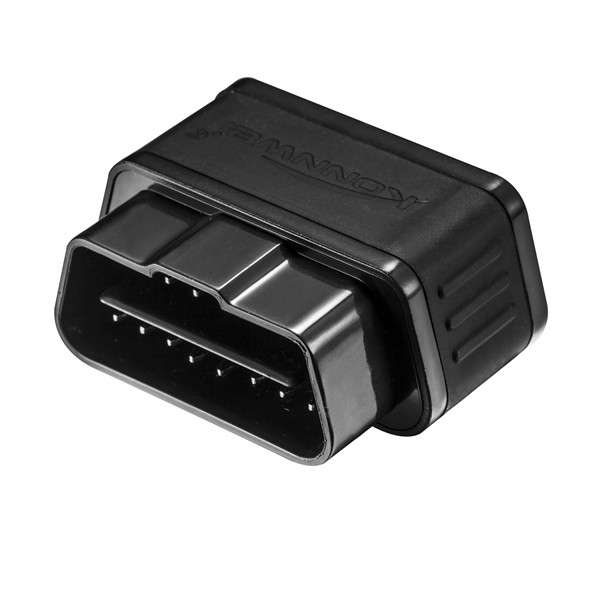

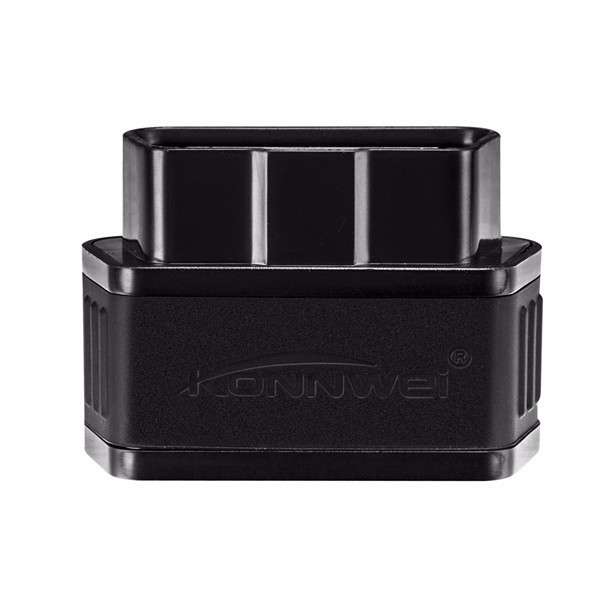

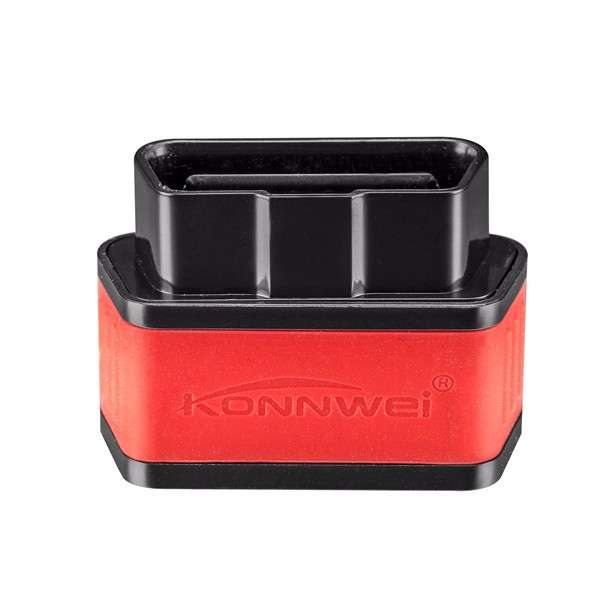

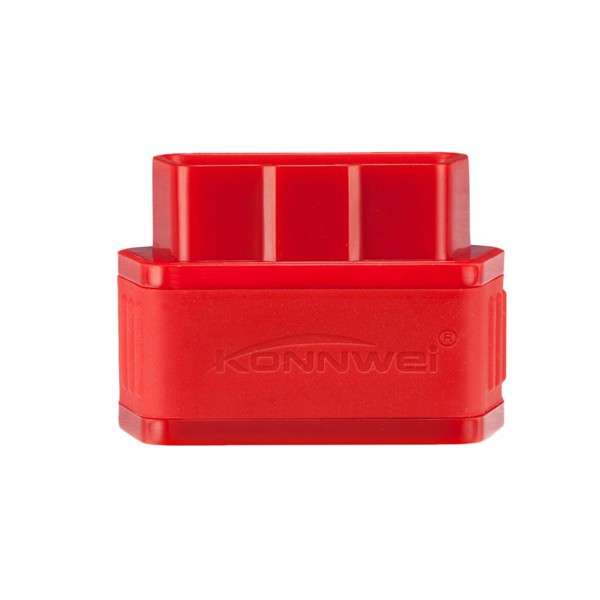

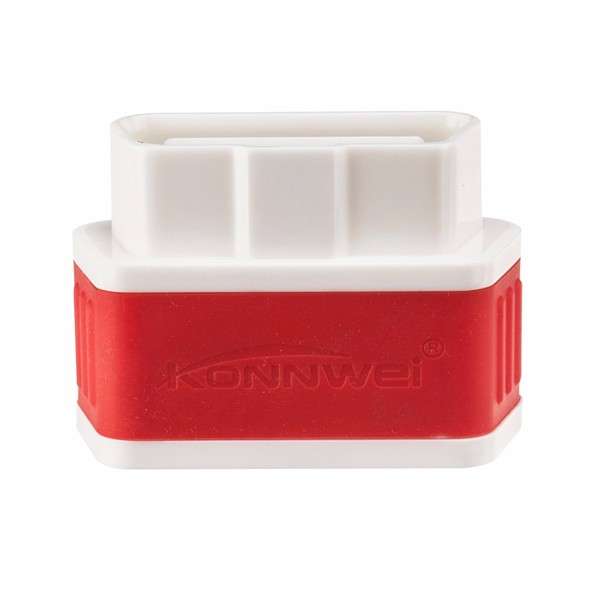

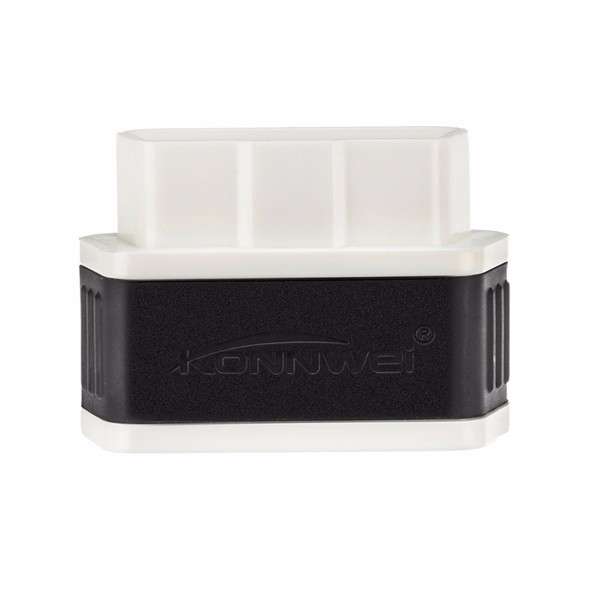

KONNWEI KW903 Car Auto ELM327 OBD2 OBD-II CAN-BUS Diagnostic Scanner with Bluetooth Function
Description:
The device is a small adapter that plugged into the vehicle OBD-connector.On Bluetooth, it connects to any computer, tablet or smartphone,
with associated diagnostic procedures .
Doing these simple operations, you will be able:
Measure the fuel consumption.
Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load,
intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
Turn off the MIL (signal Check Engine).
Download data to external media in a variety of formats for later printing.
Record various parameters, display graphics in real time, and more.
Perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
KW903 scantool is a high-quality automotive scanning tool, supports all OBD-II.
Small size, compact structure. Plug and never unplug
Stable wireless connection
Stop communication, wait half an hour, auto sleep
Supports all OBDII protocols
The adapter uses the fastest and most reliable ARM chips
Feature:

Supply voltage(VDD)	12V
Work temperature range	-20 ~ +70?
Storage temperature range	-40 ~ +125?
RF sensitivity(Basic Rate)	-85db
Modulation Mode	GFSK
Frequency Range	2402 ~ 2480MHZ
Transmission Range	10M
Bluetooth Profile	SPP
UART Params	38400,8,n,1

Protocols:
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
Package Included:
1 X KONNWEI KW903 ELM327 OBD2
