Name: KOWAL 1mm Oversize Actuator for Sanwa JLF Series Joystick (Arcade)(New) - KOWAL 50G
SKU: 9234-1000322517946
Price: 334.00 ZAR
Availability: SoldOut

KOWAL 1mm Oversize Actuator for Sanwa JLF Series Joystick (Arcade)(New) - KOWAL 50G

1 was available / new

R334.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Pwned Games1776

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

9234-1000322517946

Bob Shop ID

613098302

Introduction:

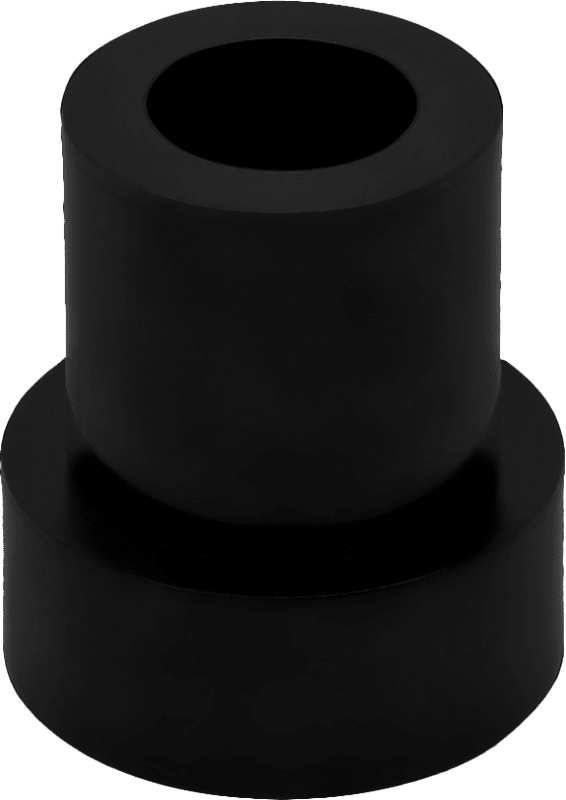

The KOWAL 1mm oversize actuator is a simple, economical, and non-invasive performance modification for Sanwa JLF joysticks. It replaces the original Sanwa JLF-Series actuator, offering a shorter throw (-1mm), plus faster engage and diagonal (+1.5mm), while retaining the original neutral zone - a critical area that allows the joystick to properly return to center and set up the next direction.

Moves such as Mortal Kombat 9's "Instant Air Gas Blast" for Kabal, or Guilty Gear's X's "In Air Dash" are greatly improved. Other moves such as jump cancel specials (canceling the pre-jump frames of a super jump into a special attack, common with UMVC3) are easier to perform.

Features:

The KOWAL 1mm oversize actuator is compatible with all the Sanwa JLF series of joysticks.

KOWAL actuator retains the neutral zone. This allows switches to perform normally.

Actuators, Zones, Throws, and Engage Distance Explained:

Neutral Zone is area in which the actuator does not touch the switches.
Dead Zone is the area that the actuator begins pressing the switch.
Activation Zone is the area where the switch is pressing down.
Throw is the maximum distance/angle the shaft can be moved in a particular direction. Longer throw means that it takes longer to return to neutral for the next move.
Engage Distance is the distance or angle between neutral and the engagement of a given switch or set of switches.

It's important to remember that Dead Zone and Neutral Zone are not the same. Actuators cannot use the neutral zone for faster engage because the switch must have this area in order to function properly. The KOWAL actuator factors in the neutral zone so that it doesn't block the switches' own plungers. This allows the switches to function normally, enabling the actuator to correctly bounce back to the center upon release, ready for the next directional move.

Size Matters:

There are other oversize actuators on the market. However, many of them do not properly factor in the Neutral Zone. Instead, they simply enlarge the entire actuator, cutting off the Neutral Zone and affecting the proper activation of the switches. This messes up the Activation Zone as well, and works against the intended goal of speeding up engage and shortening throw. If you see 1.5mm actuators or larger, keep this in mind -- anything larger than 1mm starts to mess up the proper function of the standard 200gf (operating force) JLF switches. Anything less than 1mm won't shorten engage distance effectively.

Compatibility, Design and Origin of the KOWAL Actuator:

The KOWAL 1mm actuator is tested on both square and octagonal gates and best used with the stock Omron 200gf switches that come with the Sanwa JLF. It is designed in a lightweight nylon material, and its non-tapered shape allows the actuator to engage switches consistently.

Kowal is the name of a well-respected member on Shoryuken.com forums and elsewhere in the arcade community. He has extensive knowledge of the inner workings of many control devices. Kowal originally introduced the oversized actuator as a performance enhancement for SHMUPs (horizontal or vertical space shooters like Gradius, DoDonPachi, etc.) but was later found to work great with many fighting game titles.

Specifications:

Platform: Arcade Machine
Release Date: 2015
Genre: Actuators
