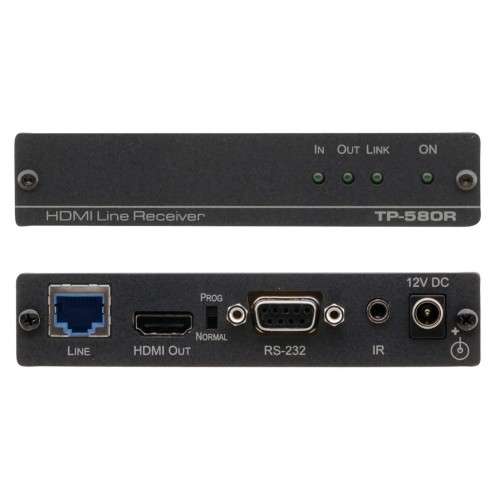

Kramer Electronics TP-580R AV receiver Black

TP580R is a highperformance, longreach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

•  High Performance Standard Extender Professional HDBaseT extender for providing longreach signals over twistedpair copper infrastructures. TP580R is a standard extender that can be connected to any marketavailable HDBaseTcompliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
•  HDMI Signal Extension HDCP 2.2 compliant. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTSHD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
•  IEDIDPro Kramer Intelligent EDID Processing Intelligent EDID handling, processing and passthrough algorithm that ensures Plug and Play operation for HDMI source and display systems.
•  Multichannel Audio Extension Up to 32 channels of digital stereo uncompressed signals for supporting studiograde surround sound.
•  Bidirectional RS232 Extension Serial interface data flows in both directions, allowing data transmission and device control.
•  Bidirectional Infrared Extension IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
•  Costeffective Maintenance Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS232 connection and the KUpload tool ensures lasting, fieldproven deployment.
•  Easy Installation Compact DigiTOOLS® fanless enclosure for droppedceiling mounting, or sidebyside mounting of 3 units in a 1U rack space with the recommended rack adapter.
