Kreg Jig R3 Pocket Hole System

Kreg Jig R3 Pocket Hole System Product Info

Easily join materials from 1/2" to 11/2" thick (12-38mm) in 1/8" (3mm) increments

Positioning sliders allow you to easily adjust within 9 depth settings
Dual wood-chip holes keep your drill bit clear of excess wood chips
Two hardened-steel Kreg drill bit guides feature a lifetime warranty
Comes with Kreg accessories organized in a durable carrying case
Depth-collar gauge is molded into the case for handy reference
Easily attaches to any Kreg Face Clamp, bar clamp, or C-clamp

Specifications:

• Body Material

Glass-filled nylon

• Number of Drill Guides

(2) 3/8" (9mm) diameter standard Kreg pocket holes

• For Use with

Materials from 1/2" to 11/2" thick (12-38mm)

• Drill Guide Spacings

7/8" (22m)

• Clamping Method

Works with any Kreg Face Clamp

• Screw-Centering Ability

1/2", 5/8", 3/4", 7/8", 1", 11/8", 11/4", 13/8", 11/2"
12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 31mm, 35mm, 38mm

• Warranty

Lifetime Kreg Drill Guide warranty

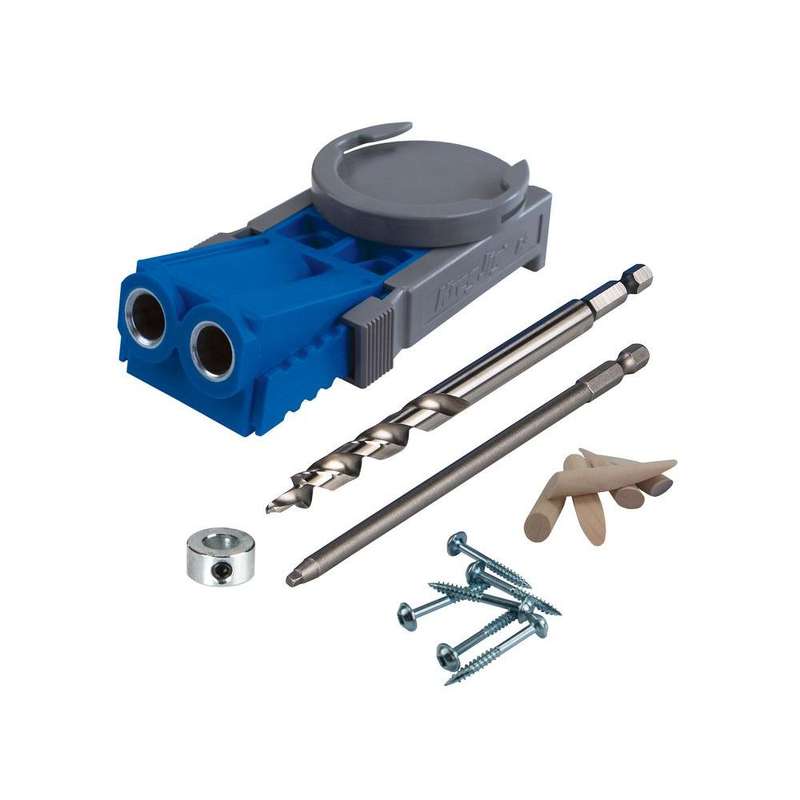

Package Contents:

• Kreg Jig® R3
• Clamp pad adapter
• Stepped drill bit
• 6" (152mm) driver bit
• Depth collar
• Allen wrench
• Starter Kreg Screw set
• Pocket-hole plug set
• Owner’s manual
• Durable compact carrying case
