KST A08 V6.0 Coreless Metal Gear HV Servo Glider DLG
Closed

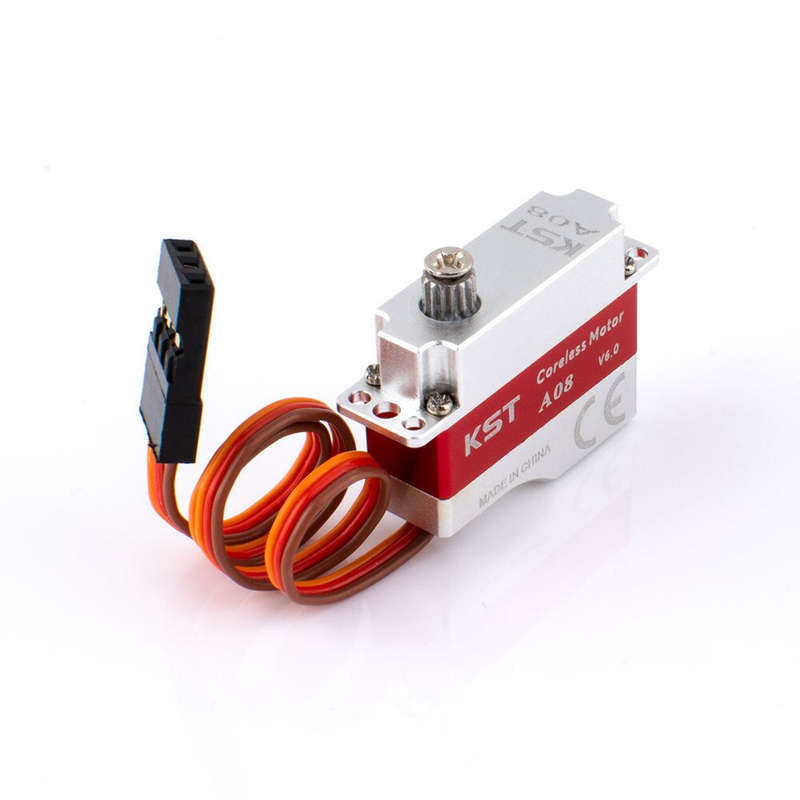

KST A08 V6.0 Coreless Metal Gear HV Servo Glider DLG

5 were available / new
R1,186.90
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
KST003
Bob Shop ID
594796344
KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you. Talk to our sales team today, OEM and ODM services are also available for custom installations.

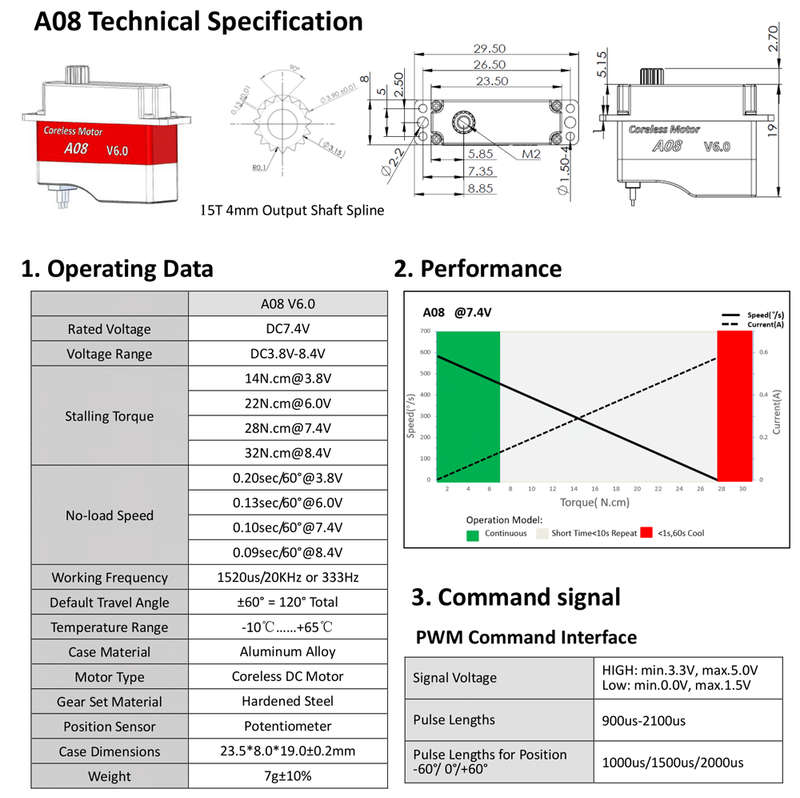

Description:
Rated Voltage: DC7.4V
Voltage Range: DC3.8V-8.4V

Torque
14N.cm@3.8V - 1.4kg.cm@3.8V
22N.cm@6.0V - 2.2kg.cm@6.0V
28N.cm@7.4V - 2.8kg.cm@7.4V
32N.cm@8.4V - 3.2kg.cm@8.4V

Speed
0.20sec/60@3.8V
0.13sec/60@6.0V
0.10sec/60@7.4V
0.09sec/60@8.4V
Working Frequency: 1520us/20KHz or 333Hz
Default Travel Angle: 60 = 120 Total
Temperature Range: -10+65
Soft Start: Yes
Programable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Case Dimensions: 23.5*8.0*19.00.2mm
Weight: 7g10%
Programing box/USB link compatible







We can build servos with features like these and more!
 Torque ranging from 2kg*cm to 700kg*cm
 Travel speeds from 0.03s to 0.5s
 Travel angles: from 40deg to 360deg
 Communication protocols such as TTL. RS232, i2C, RS485 or PWM
 Servo positioning and current feedback
 Gear materials from plastics to titanium
 Voltage ranges are also customizable from 4.8v to 28v
 Size, Shape and design can be customized to your needs
 A variety or motor options such as brushed, coreless & brushless
 We can offer Potentiometer or magnetic induction control
