KTNNKG 433 Mhz DC 12V 10CH Wireless Remote Control Switch Kit 10 Relay Receiver Module + 2 RF Transmitter (10005154)

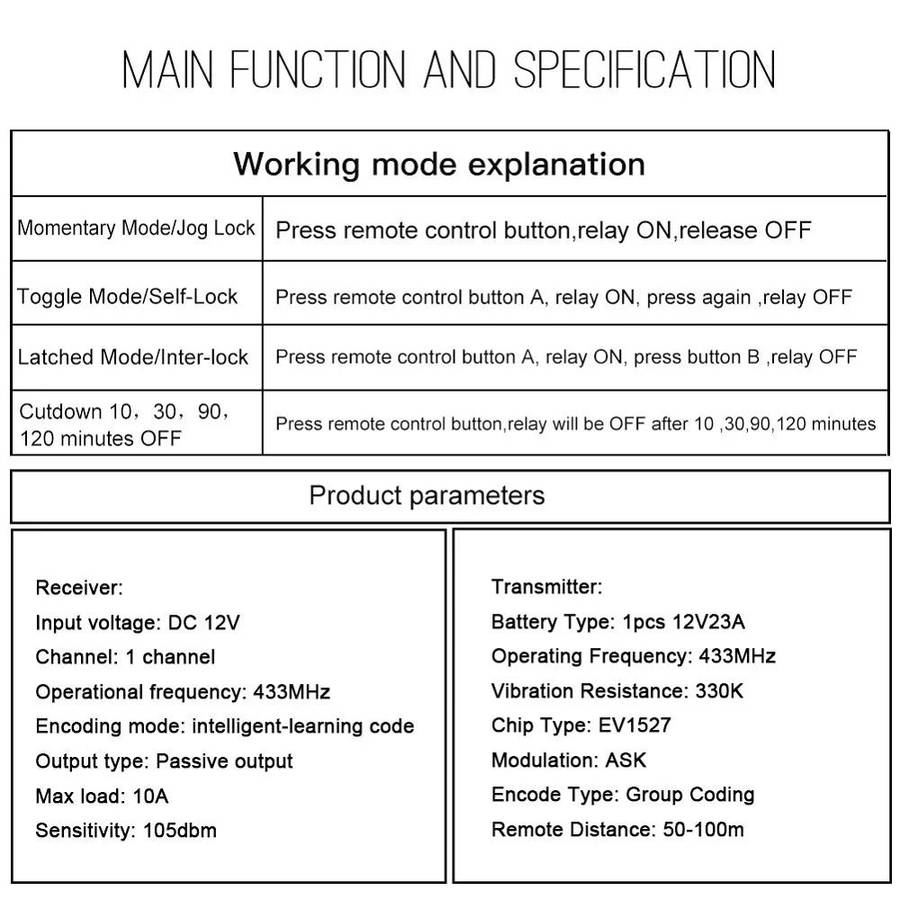

Specification:

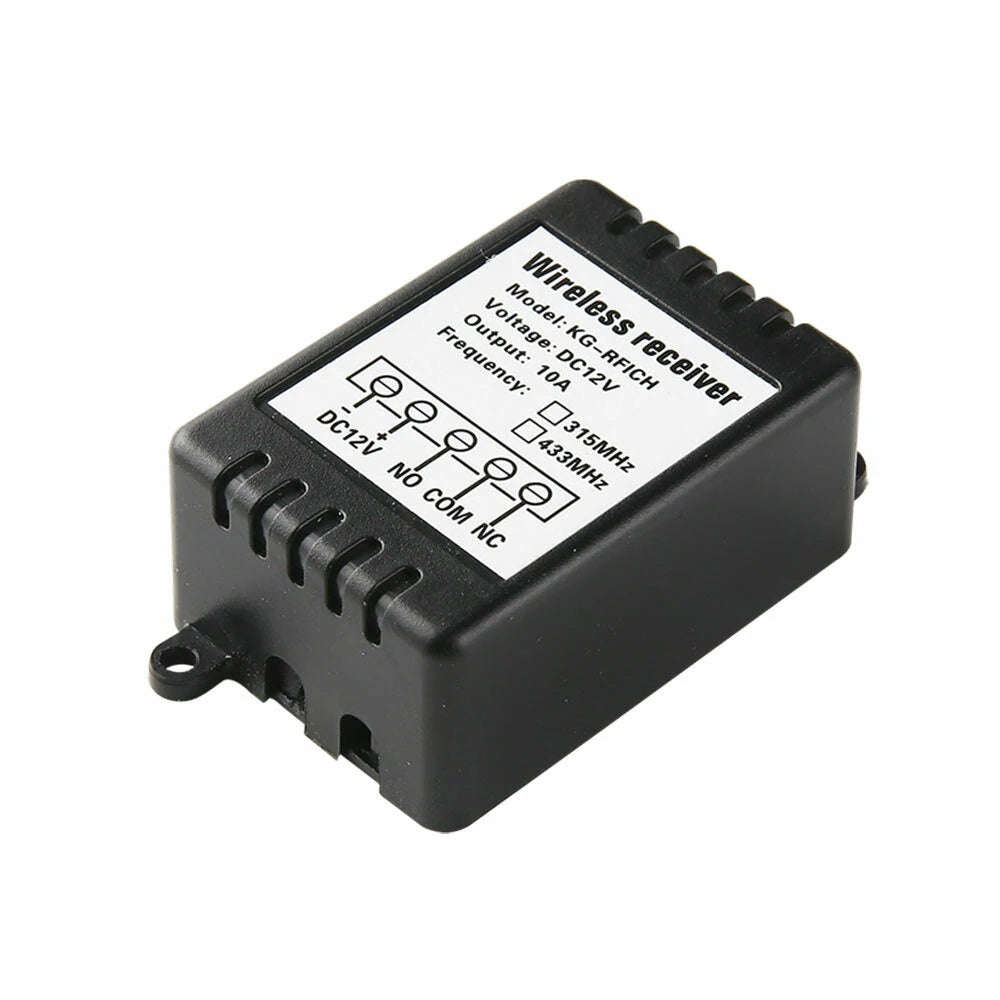

Receiver:

Input voltage: DC 12V

Channel: 10 channel

Operational frequency: 433MHz

Encoding mode: intelligent-learning code

Output type: Passive output

Max load: 10A

Sensitivity: 105dbm

Transmitter:

Battery Type: 1pcs 12V23A

Operating Frequency: 433MHz

Vibration Resistance: 330K

Chip Type: EV1527 Modulation: ASK Encode Type: Group Coding Remote Distance: 50-100m

Function:

1. DC12V input

2. Working model: Jog-lock (Momentary)/ Self-locking/ Interlock

3. Timer Function:10s/30s/90s/120s

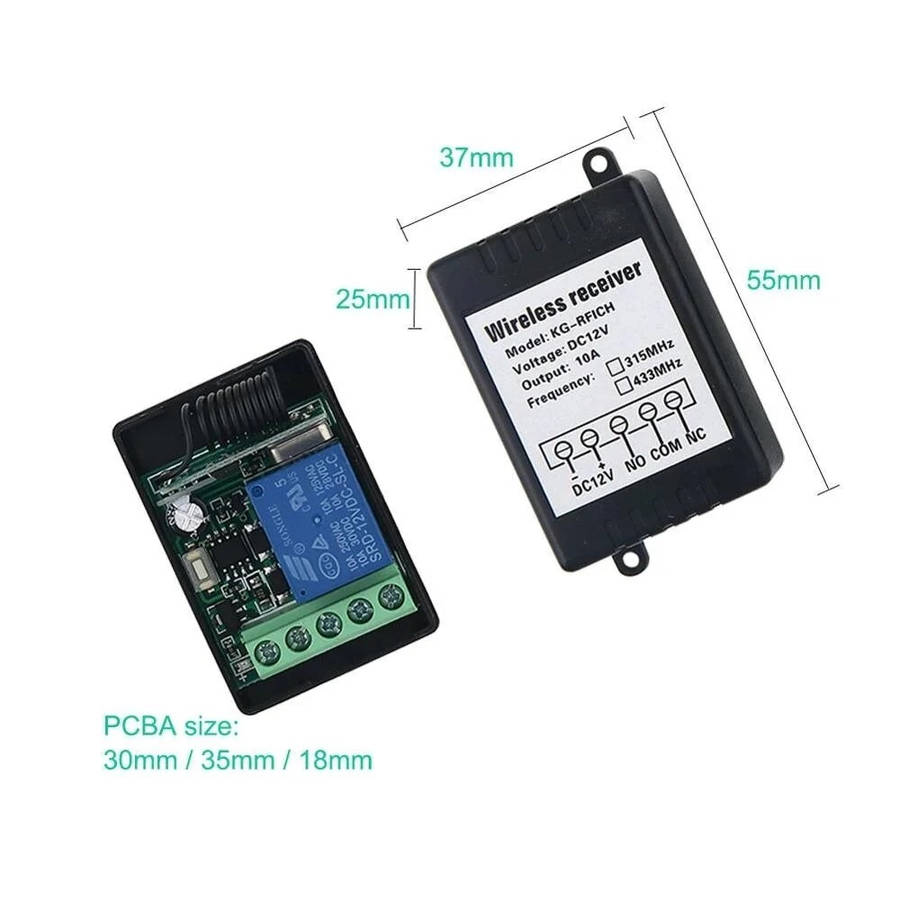

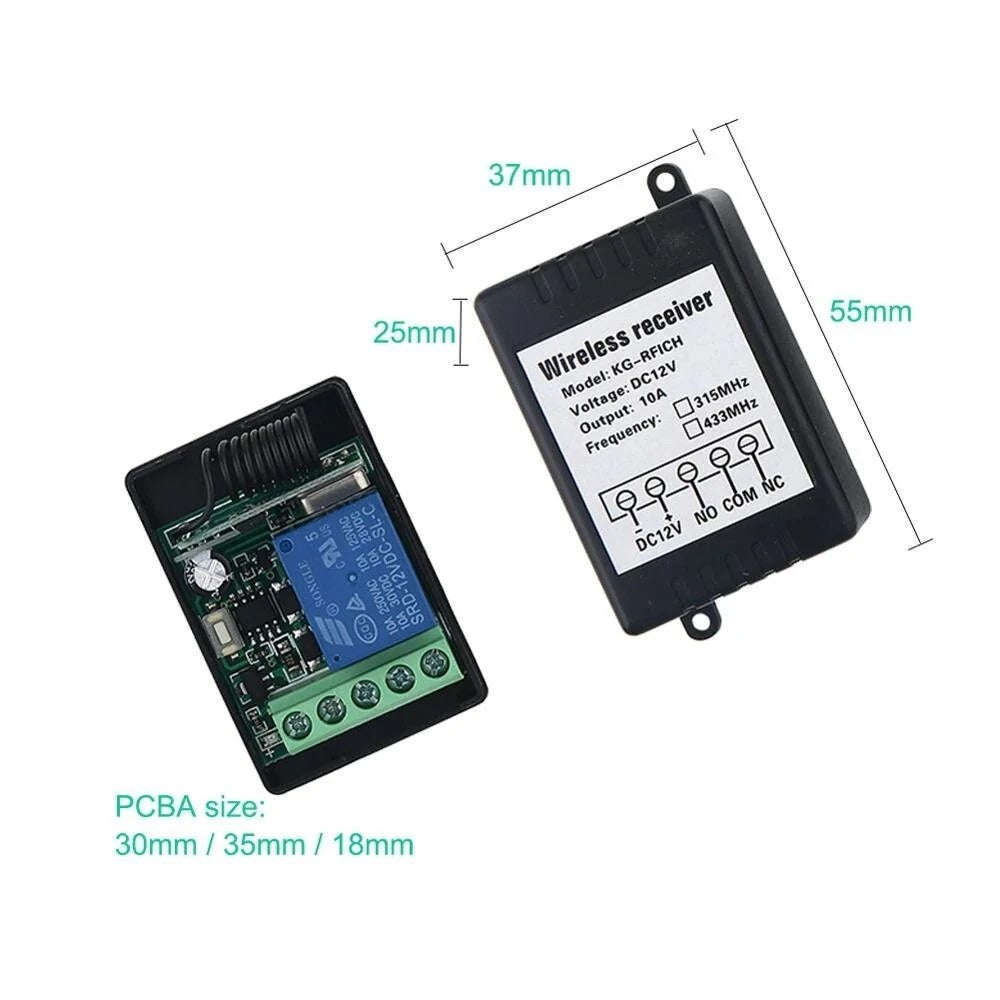

4. PCBA Size:30mm*35mm*18mm

5. Cover Size:55mm*37mm*25mm

6. Can be paired with 35pcs remote control at the same time

How to set working mode:

1.How to clean code:

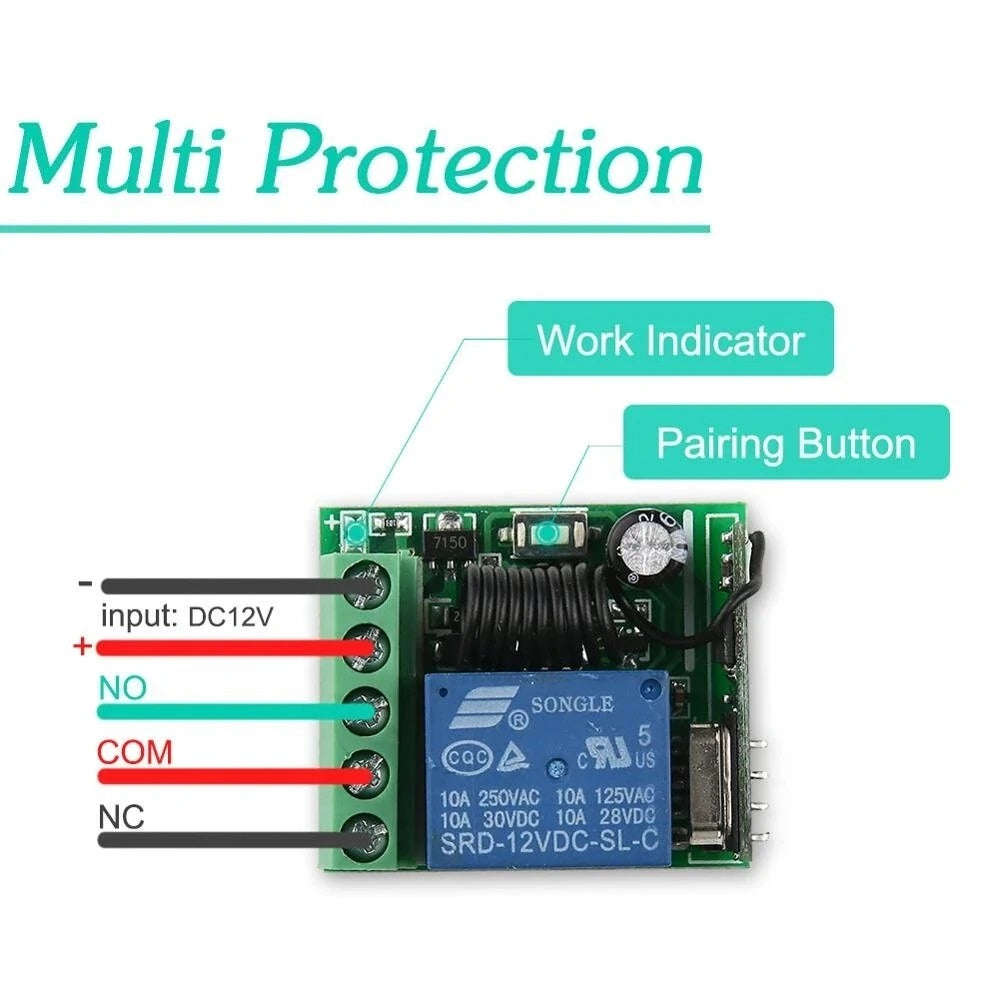

Press the Paired Button on the board 8 times, light flash, cleaning code successfully.

2.How to set the remote working mode:

Power on the switch, then...

Jog-lock(Momentary):

Press "paired button" once ,red light on, then press remote control button, red LED blinks, then off, jog mode completed

Self-locking:

Press "paired button" twice fast, red light on, then press remote control button, red LED blinks, then off, Self-locking mode completed

Interlock:(you need a remote with 2 buttons)

Press "paired button" 3 times fast, red light on, then press remote control button, red LED blinks, then off, Self-locking mode completed

3.How to set timer mode:

10s Timer: press the "paired button"4 times fast, Then press remote control button

30s Timer: press the "paired button"5 times fast, Then press remote control button

90s Timer: press the "paired button"6 times fast, Then press remote control button

120s Timer: press the "paired button" 7 times fast, Then press remote control button

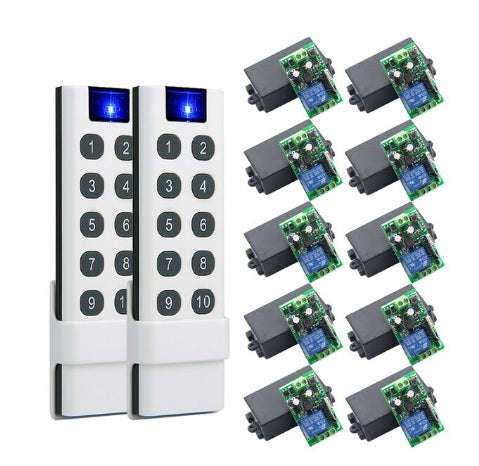

Package Contents:

2 x Transmitter

10 x Receiver
