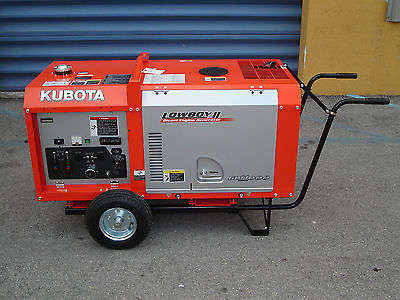

MODELUnitGL11000
Type-Rotating field single-phase AC generator
Frequency Hz 50
Standby Output kVA (kW)11.0 (11.0)
Prime OutputkVA (kW)10.0 (10.0)
Voltage - Single Phase V220/230
Armature Connection-Series
Phase / Wire-1/3
Power Factor-1.0
No. of Poles-2
Insulation Class Rotor coil; class F, Stator coil; class B Type of Coupling-Direct coupled
TERMINAL Terminal-N/A DIESEL ENGINE
Type-Vertical, liquid-cooled, 4-cycle diesel engine
Model- Kubota D722
No. of Cylinders-3
Bore x Strokemm (in.)67.0 x 68.0 (2.6 x 2.7)
DisplacementL (cu. in.)0.719 (43.9)
Engine Speed rpm 3600
Continuous Rated Output kW (HP)12.2 (16.3)
Lubricant (API classification)-Above CD grade
Oil CapacityL (qts.)3.4 (0.9)
Coolant CapacityL (qts.)4.1 (1.1)
Starting System-Electric - 12 volt DC
SET Fuel-Diesel
fuel No.2(ASTM D975)
Fuel Consumptionat Full LoadL/h (gal./h)4.1 (1.09) at 3/4 LoadL/h (gal./h)3.3 (0.86)at 1/2 LoadL/h (gal./h)2.7 (0.71)at 1/4 LoadL/h (gal./h)2.2 (0.59)
Fuel Tank CapacityL (gal.)28.0 (7.4)
Continous Operation Hours at Full Load h7.0at 3/4 Loadh8.5at 1/2 Loadh10.4at 1/4 Loadh12.7
Battery (Ah/5h)-55B24R (12V x 36Ah)
Dimensions L x W x Hmm (in.)1281 x 618 x 698
(50.4 x 24.3 x 27.5)
Approx. Net Weight kg (lbs.)295 (650)
Sound Level (Full Load at 23 ft. [7m])dB (A)68
Emergency Stop System-In case of abnormal: Oil pressure, water temperature, or When the access terminal cover is opened (terminal type only)
