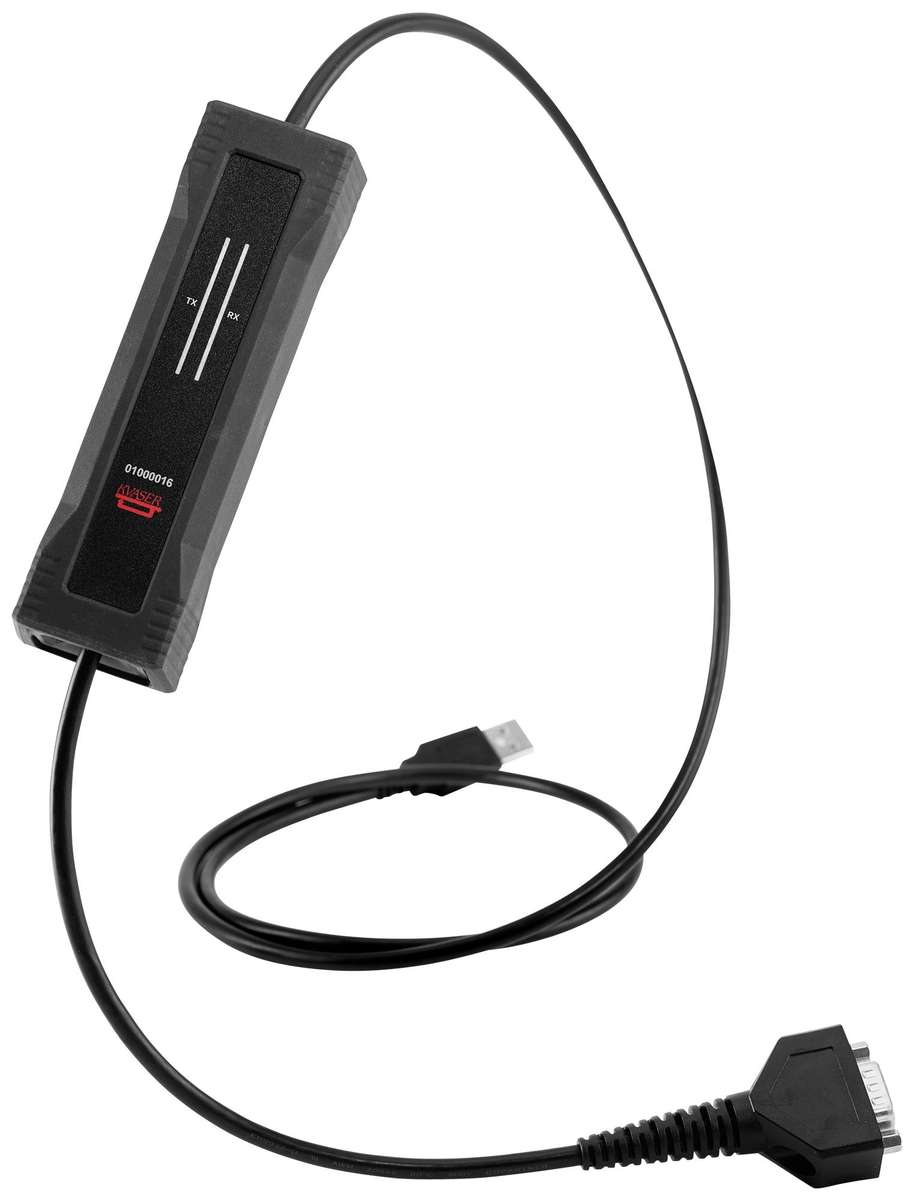

Kvaser (73-30130-01173-1) Interface Module, Kvaser U100, CAN, 8MBPS

Interface Module, Kvaser U100, CAN, 8MBPS, 1 channel, -40 °C to 85 °CProduct InformationData Transmission Distance: -Module Interface: CANData Rate: 8MbpsProduct Range: -Product OverviewKvaser U100 is a robust, single-channel CAN/CAN FD to USB interface withreinforced galvanic isolation that squarely addresses the needs of the evolvingautomotive development market. Fully compatible with J1939, CANopen, NMEA 2000®and DeviceNet, this is the first in a new range of interfaces that is alsosuited to rugged applications in marine, industrial, heavy duty vehicle andheavy industries.Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation)Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiersPowered through the USB connectorSupports bit rates from 10 Kbit/sec up to 1 Mbit/secLightweight, glass fibre reinforced polyamide housing, overmoulded with TPEIP67 rated, industrial grade temperature range, -40°C to +85°CDB-9 connector, Intelligent LED UI, support for SocketCANReinforced galvanic isolation, design validated with 5000 VAC rms applied for 60seconds20000msg/s, each timestamped with a resolution of 100µsCompatible with J1939, CANopen, NMEA 2000® and DeviceNet
