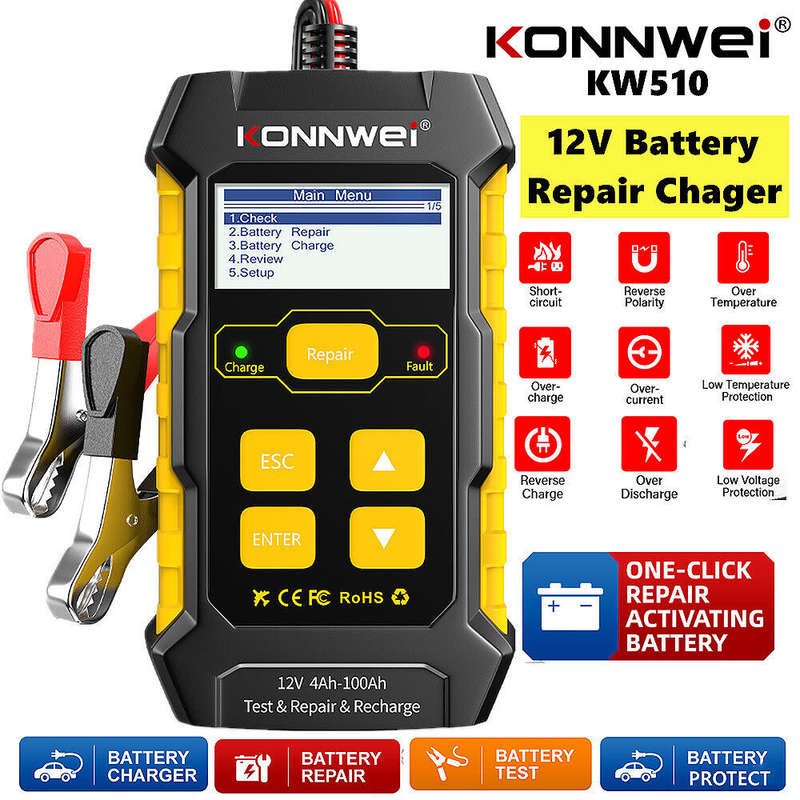

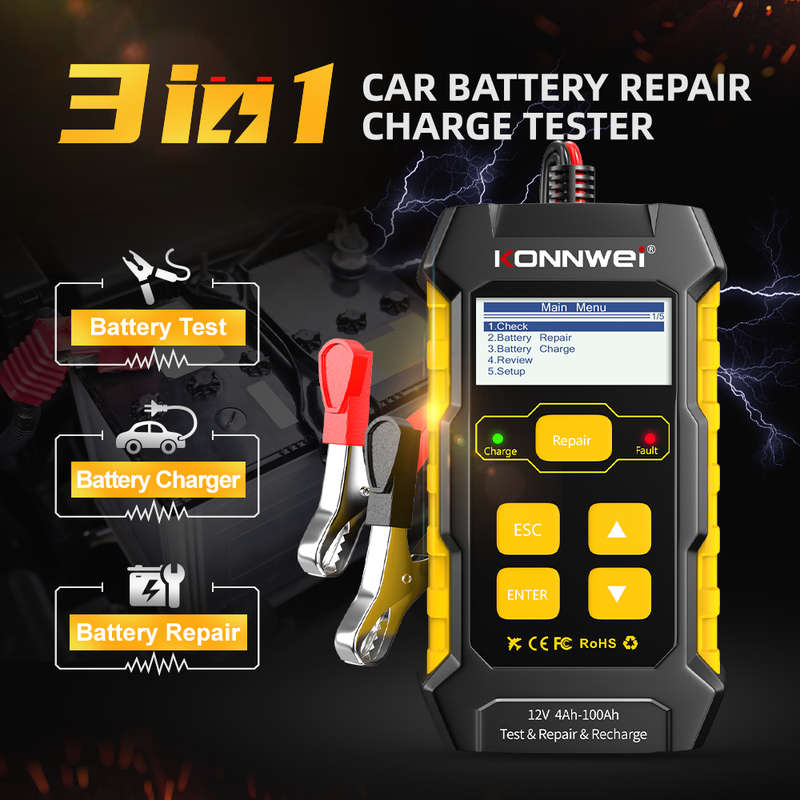

KW510 Car Battery Tester Vehicle Battery Charging System Tester Professional Diagnostic Equipment

KW510 Car Battery Tester Vehicle Battery Charging System Tester Professional Diagnostic Equipment

NOTES:

(Courier Fee only R30 for normal areas or R60 for outlying areas,

no matter how many items on your order.)

Limited time and quantity.

Wish you good luck!

Product introduction:

Features:

- KONNWEI KW510 support charge all 12V Lead-acid batteries

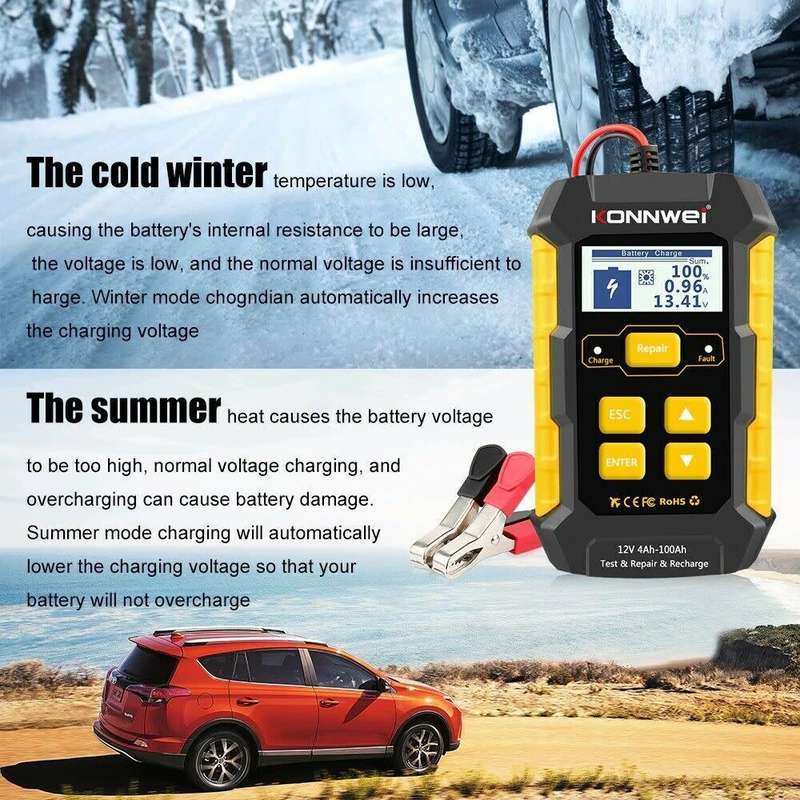

- Automatically detect the ambient temperature, keep warm in winter and cool in summer.

- Maximum output 12V 5A, input 100-230V, charge dead batteries as low as 2-volt

- Designed to testing and charging 12-volt lead-acid automotive, marine, and deep-cycle batteries,

including flooded, gel, AGM, and maintenance-free, plus lithium-ion batteries.

- Compatible with all types of vehicles:

charge and maintain cars, motorcycles, lawn mowers, ATVs, lawn tractors, trucks, SUVs, boats, PWCs, classic cars, and more.

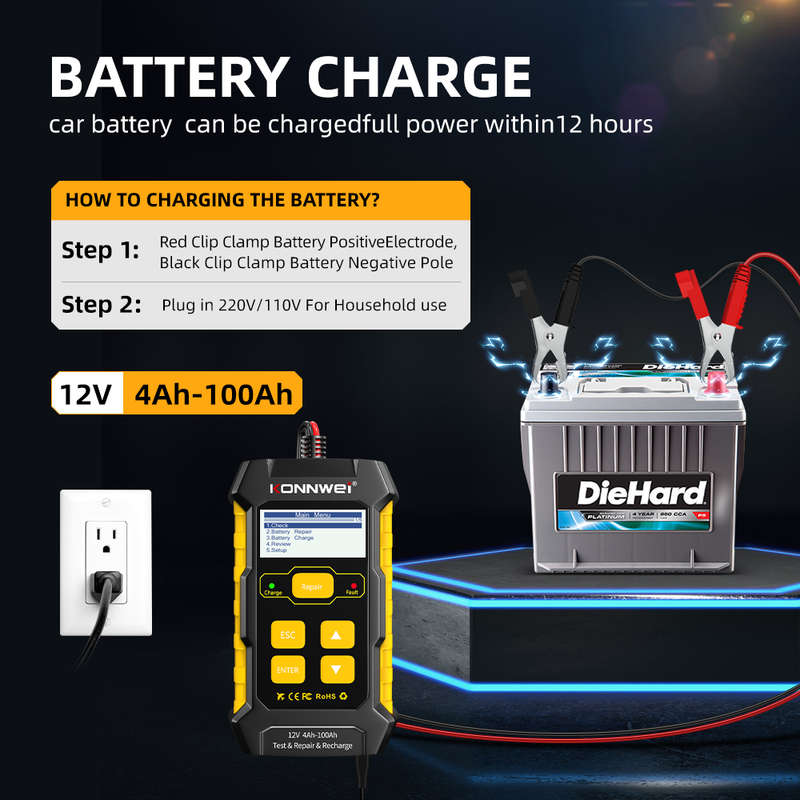

Battery Charge and Repair Operation

- Step 1: Connect the red clip to battery positive pole of the battery, and the black clip to negative pole.

(KW510 has reverse connection protection, reverse connection will not damage the battery but cannot be charged or repaired)

- Step 2: Connect the KW510 power side to A/C supply. 50/60hz, 110-230V, see about Pic2.

- Step 3: Select the battery charge option from the main menu.

The KW510 will automatically charge the battery with 7-stages output, and keep it at trickle currect at last, so no need to worry about the overcharge or overheat issues.

(Note: The pulse repair function can only be used when the car battery is disconnected from the car).

Specifications:

- AC input: 100-240V/50-60Hz

- Output: Voltage 12V

- Output: Current 5A

- Output Volt No Load: 13.8V

- Minimum Start Volt: >2.0V

- Input Power with Load: Max 80W

- Input Power No Load: 3W

- Cooling: Fan

- Charging Capacity Range: 4AH-100AH

- Temperature Compensation: Yes, Winter & Summer Mode

- Compatible Battery Type: All types of Lead-acid batteries

Package:

- KONNWEI KW510 battery test & charger & repair tool

- Multi-language user manual

- Charging Cable (EU Plug)
