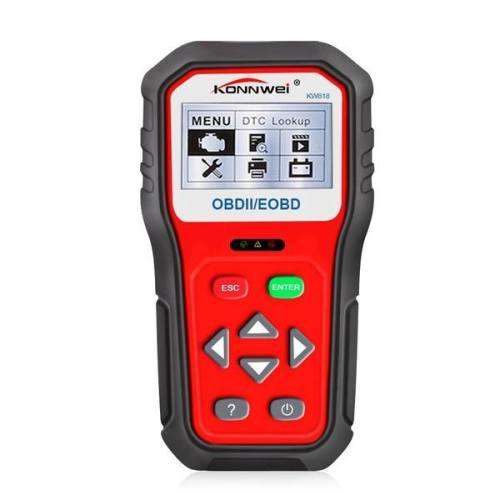

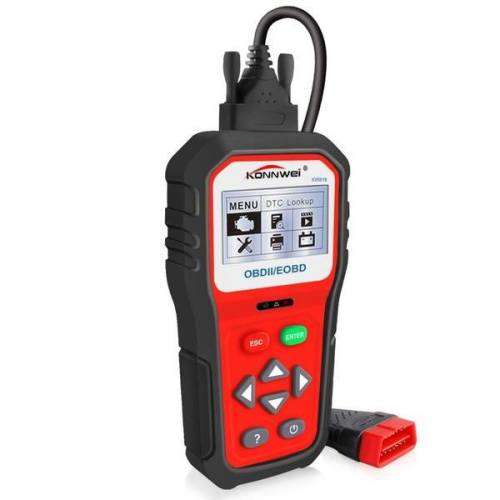

KW818 UNIVERSAL SCANNER OBD2 CODE READER

 KW818 ODB2 Scanner Function List: Basic FULL OBD2 Function 1. Read and erase fault code from engine, find out failure reason for check engine light coming on. 3. Turns off Check Engine Light (MIL), warning light, clears codes and resets monitors 4. Directly show difination of OBDII Codes, without check online. 5. Displays monitor and I/M readiness status (emission status) 6. Reads and display live PCM data stream, live sensor readings, up to 50 PID/S, and show it in graphical mode. 7. Views freeze frame data to analyze the real cause of engine failures 8. Displays live O2 oxygen sensor test data 9. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems. 10. EVAP System test data 11. Retrieves vehicle information (VIN code, CIN and CVN Number) Extra Function for KW818 1. 12V car battery status check, compare with user manual to verify if your battery need to be replacement. 2. Data stream storage, and playback even off vehicles. 3. Allows you to print out 3 kinds of stored data: DTCs, Freeze frame, Live sensor readings. DIY your diagnostic reports available. 4. Troubleshooter code tips guide you to find the root cause of a trouble code faster, save diagnosis and repair time. KONNWEI KW818 specification: Display: 2.8" (320*240dpi) color screen Operating Temperature: 0 to 60 (32 to 140 ) Storage Temperature: -20 to 70 (-4 to 158 ) Power: 8 to 18 V provided via vehicle Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898) Dimensions: 199mm 7.83in x 104.5mm (4.11\'\') x 37.5mm (1.48\'\') Weight: 0.5KG
