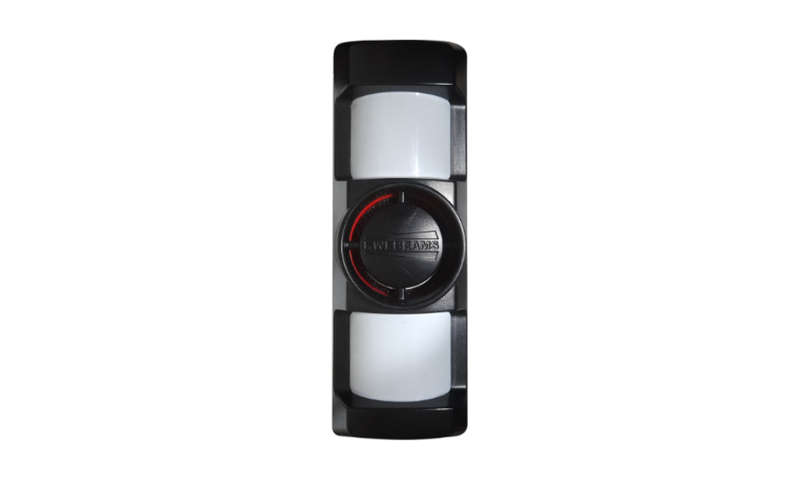

Kwebeams anti-masking beam

ANTI-MASKING MOTION SENSOR

The Kwêbeam outdoor alarm system is fully functional with only one beam and one keypad, however multiple keypads & beams can be added to the same alarm system.

The Kwêbeam system has been designed to be effective & easy to install. One outdoor sensor with a keypad completes a fully operational outdoor alarm system. Additional sensors, keypads, SMS control units, repeaters and interface modules can be added as required. A fully programmable built-in siren provides an unexpected element of surprise next to an intruder. No additional siren installation is required.

The outdoor motion sensor features dual PIR detection to ignore pets & detect people. Both top & bottom detectors must sense a moving heat source for a valid alarm signal. False alarms are further reduced with software algorithms to differentiate true detection from environmental noise.

The system is completely wireless and powered by standard AA alkaline cells. All wireless beams can transmit & receive signals for reliable 2-way communication. Built-in repeater functionality strengthens wireless performance and overcomes wireless range issues.

A Tilt sensor reports orientation changes while the system is armed or disarmed. To prevent theft & vandalism the built-in siren will sound when the sensor is forcibly removed.

The Anti-Masking version includes Active Infrared sensors that detects damaged lenses or unwanted objects in front of the lens. This prevents masking attempts while the system is armed or disarmed.

MAIN FEATURES:	KB-S	KB-AM
Dual PIR beams for minimal false alarms.
Built-in 95-decibel programmable siren. Panic sounds all sirens simultaneously.
Built-in 'Repeater' functionality for extended wireless range.
Two-way wireless communication 868 MHz frequency
8 adjustable sensitivity settings.
18m detection range, 90 degrees wide.
The Beam operates up to 3 years from 3 standard AA alkaline batteries.
Orientation protection: Any change in the orientation will trigger the built-in Siren, whether the system is Armed or Disarmed.
Active Infrared detects masking attempts in the near-field vision. A Tamper notification will be sent to the Wireless Control Unit and the SMS Control Unit.

KweBeams-Technical-Specification_V1.3
