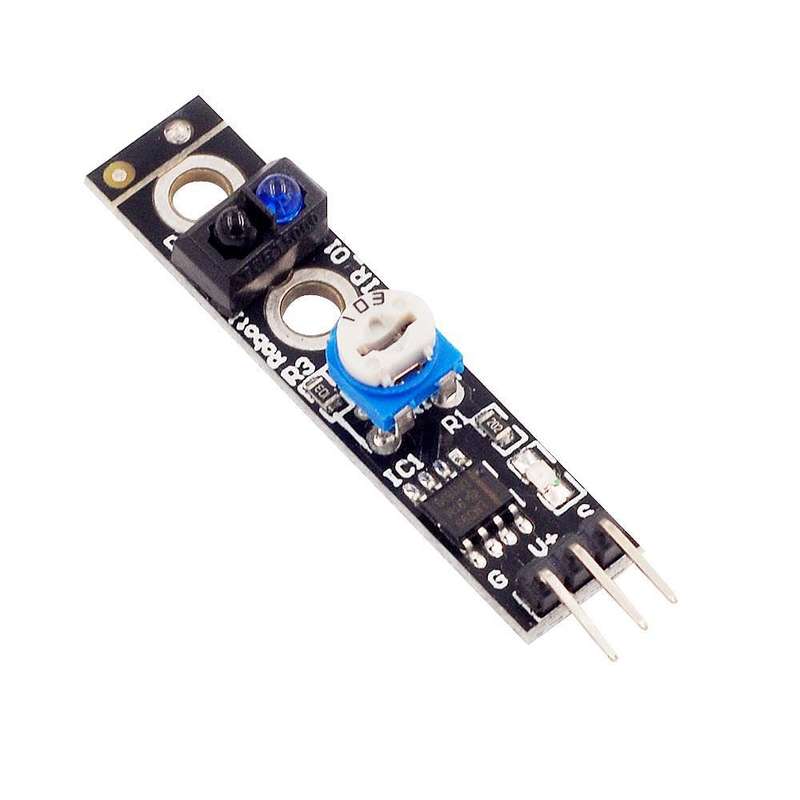

KY-033 TCRT5000 Line Track Sensor Module Reflection Infrared Follower Sensor Switch Obstacle Avoidan

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;} null Features:
1. Detect the distance and test the white paper about 2 cm. The different distances of different colors are whiter. 2. Power supply voltage: 2.5 volts to 12 volts, no more than 12 volts (Note: The power supply voltage is low, the power supply voltage is too high, the sensor life will be shorter, and the 5 volt power supply is the preferred power source). 3. Working current, 5 V 18-20ma. After many tests, the sensor hardware is set to the best performance of the current working 18 mA and 20 mA, mainly in the anti-capacity interference. If you need small power consumption, we can modify it, at least they can do 5 mA. A message can be displayed. 4. The detected object, the final output signal level is low; no object is detected, and the final output signal is high. 5. TTL level sensor output, can be directly connected to the microcontroller IO port 3.3 volts or 5 volts.
Package Included:
1 x KY-033 TCRT5000 Line Track Sensor Module
