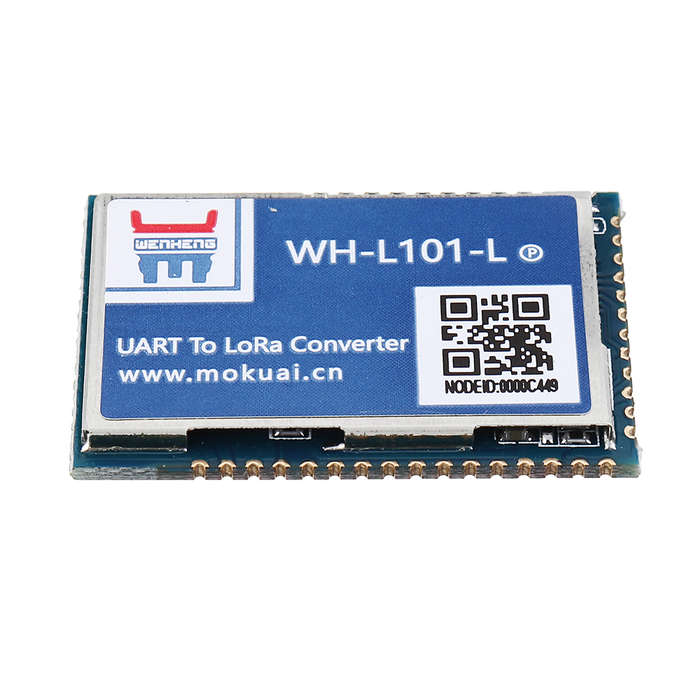

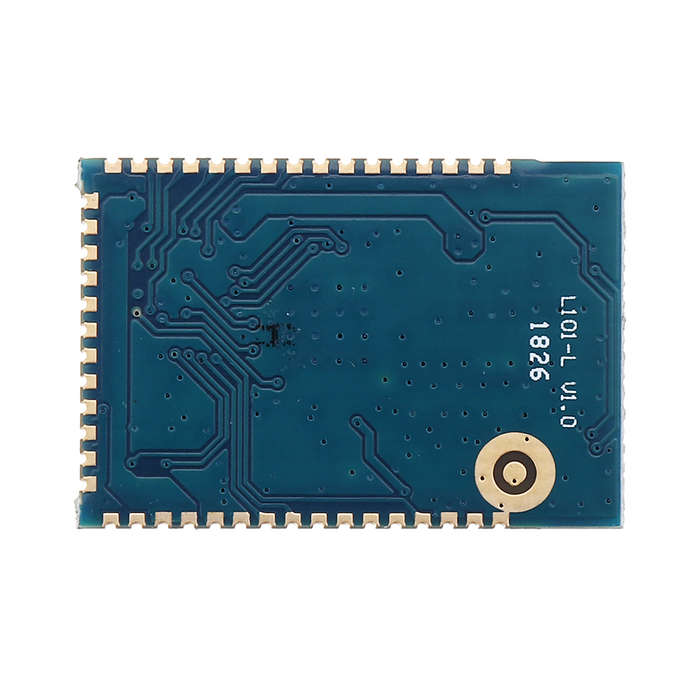

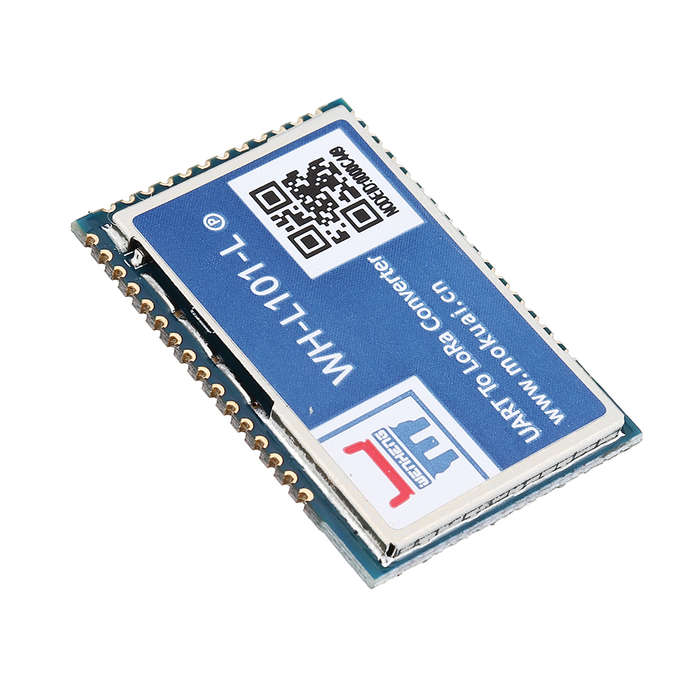

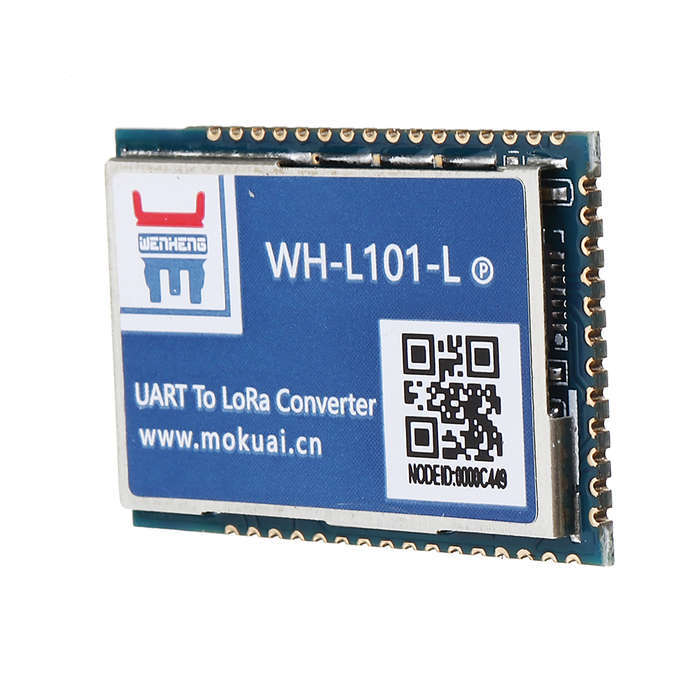

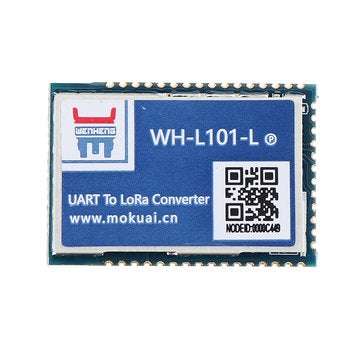

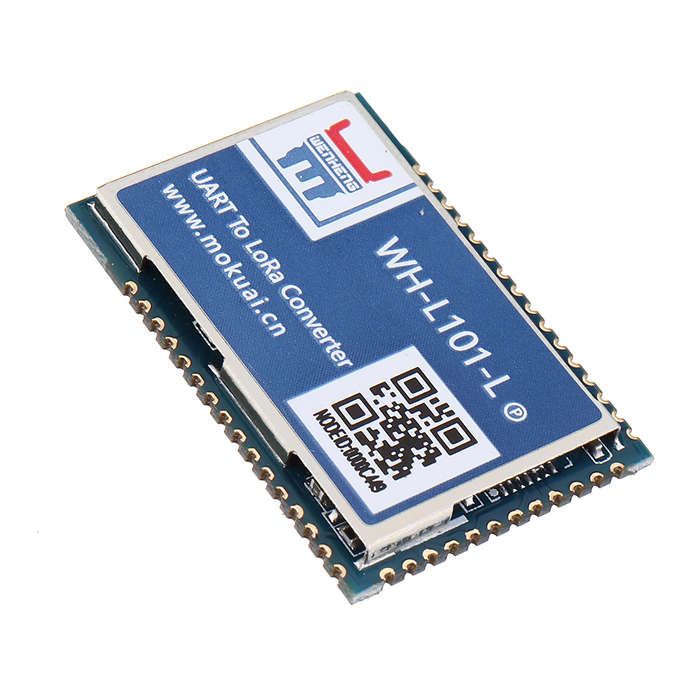

L101-L-P UART to LoRa Converter Module Wireless Data Transmission point-to-point Support Broadcast

New

20 available

R507.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3921

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651231625

Feature:

Classification	Parameter	Value
Wireless parameter	Working frequency	398~525MHz
	Transmit power	When the module voltage is 1.8V~2.4V, the transmit power can be set to 10dBm~17dBm.
	Transmit power	When the module voltage is 2.4V~3.6V, the transmit power can be set to 10dBm~20dBm.
	Receiving sensitivity	-138.5dBm@0.268Kbps
	Transmission distance	3500m (test conditions: clear, open, maximum power, antenna gain 5dBi, height greater than 2m, 2.5K airspeed
	Antenna option	Pad
Hardware parameter	Data interface	UART: 1200bps - 115200bps
	Operating Voltage	1.8V ~ 3.6V
	Working current	@3.3V
		Emission current 130mA
		Receive current 16mA
		Wake up receiving current 8A
	Operating temperature	-40ﾣC ~ +85ﾣC
	storage temperature	-45ﾣC ~ +90ﾣC
	Working humidity	10~90% RH (no condensation)
	Storage humidity	10~90% RH (no condensation)

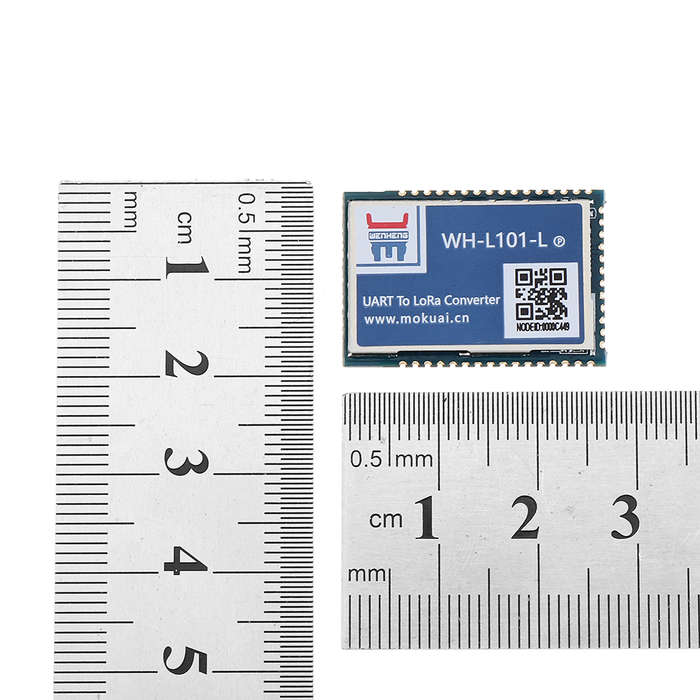

	Size	18.2mm x 26.6mm x 2.6mm
	Package interface	SMT surface sticker
