L298P Shield DC motor driver use high-power motor driver dedicated chip L298P,
can directly drive 2 DC motors, the drive current up to 2A. The motor output
interfaces use 8 high-speed Schottky diodes as protect. It can be directly plugged into
the Arduino.
L298P Shield DC motor driver with PWM speed control mode and the PLL mode,
using jumper to switch.
Description:
Can drive two dc motors at 2A Max with L298P, output uses 8 high-speed schottky diodes as protection. Compatible with Arduino. with Bluetooth, Servo interface and An
Parameters:
Logical input voltage VD: 5V
Drive input voltage: VIN 6.5 - 12V, PWR IN 4.8 - 24V
Logical working current Iss: 36mA
Drive working current Io: 2A
Maximum power dissipation: 25W (T= 75°C)
Control signal input electric level:
High level: 2.3V Vin 5V
Low level: -0.3 V Vin 15V
Operating temperature: -25°C ~ +130°C
Features:

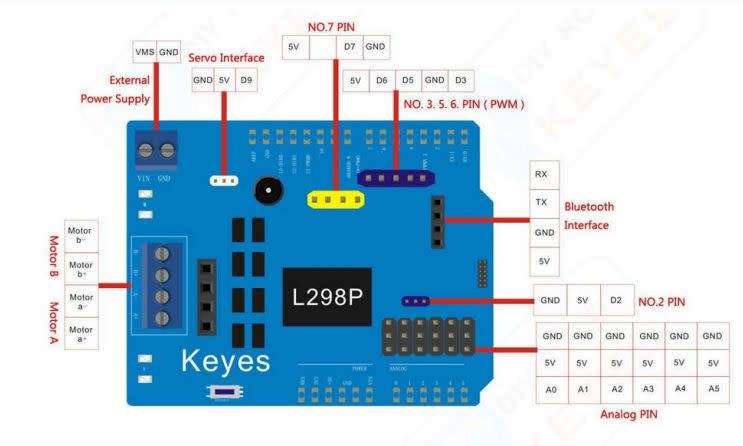

1. There is L298P motor driver chip on the board so that you can use digit IO
interface(D .D10. D11. D12) without cumbersome wiring connection.
2. Onboard buzzer (D4), you can set the astern alarm ringtone.
3. Convenient motor interface can be two routes motor output.
4. Two-way bluetooth interface requires no wiring and you can plug directly.
5. It has seven digital interface that are not occupied(including D 2 , D 3 , D 5 , D 6 ,
D 7 , D 9 , D).
6. It has six analog interfaces(A0, A1, A2, A3, A4, A5).
7. It has indicator for forward and backward changing direction .
