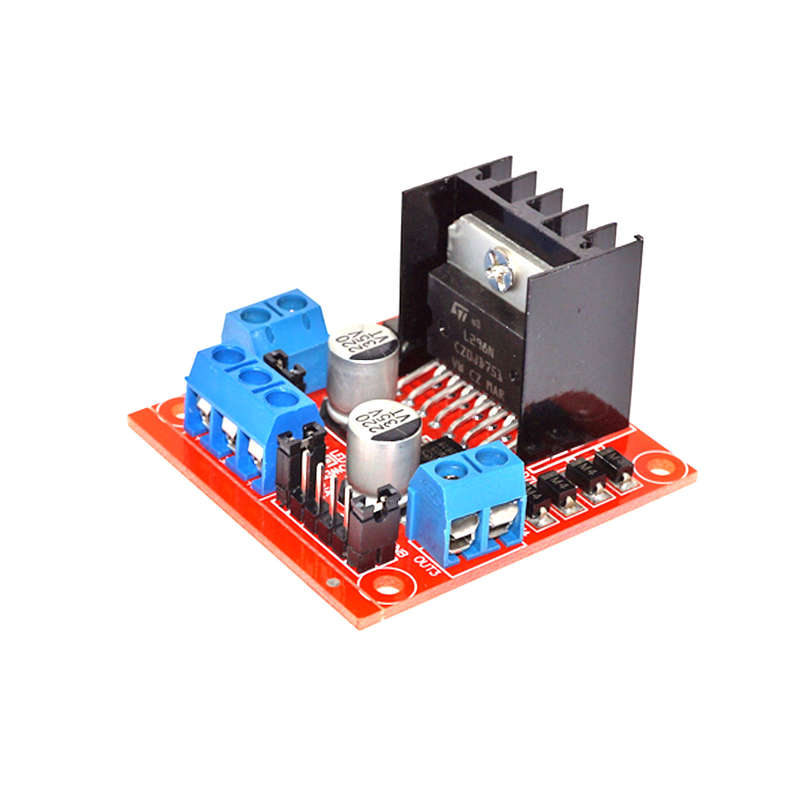

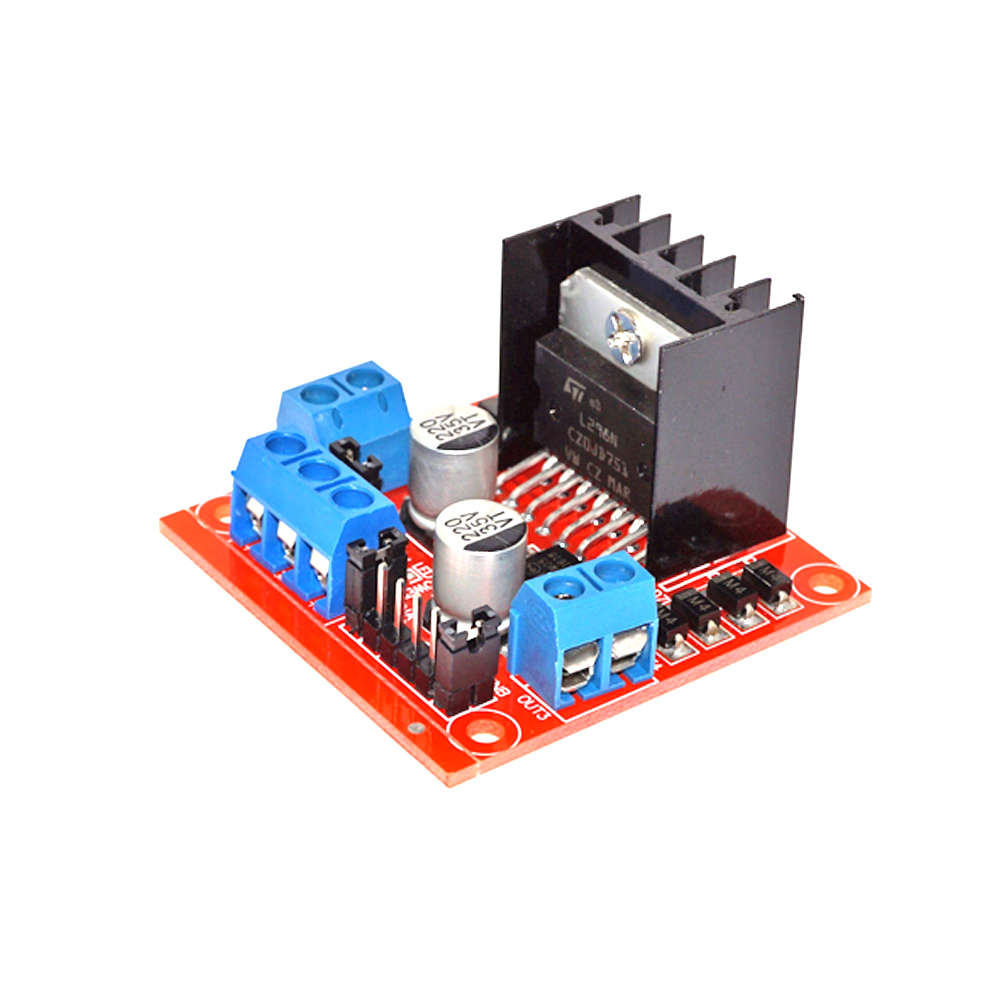

Name: L298N Motor Shield Dual DC Motor Driver Shield
Input voltage VD: 5V
Input voltage VS: VIN input from 12V to 6.5V
working current Iss: < 36ma
Drive part working current Io: < 2a
Maximum dissipation power: 25 w (T = 75 )
Control signal input level: High level < Vin < 5 V, 2.3 V low level < Vin < 0.3 V to 1.5 V
Working temperature: - 25~ + 130
Driver: Dual power H bridge driver
Feature:
1. Driver chip: L298N dual H-bridge driver chip
2. Drive section terminal supply area VMS: +5 V ~+35 V
3. Drive section peak current Io: 2A / Bridge
4. Logical part of the terminal supply area Vss :4.5-5.5V
5. Logical part of the operating current range: 0 ~ 36mA
6. Control signal input voltage range: 4.5-5.5V HIGH LOW 0V
7. Maximum power consumption: 20W
8. Storage temperature: -25 ~ +130
9. Driver Board Size: 55mm * 60mm * 30mm
