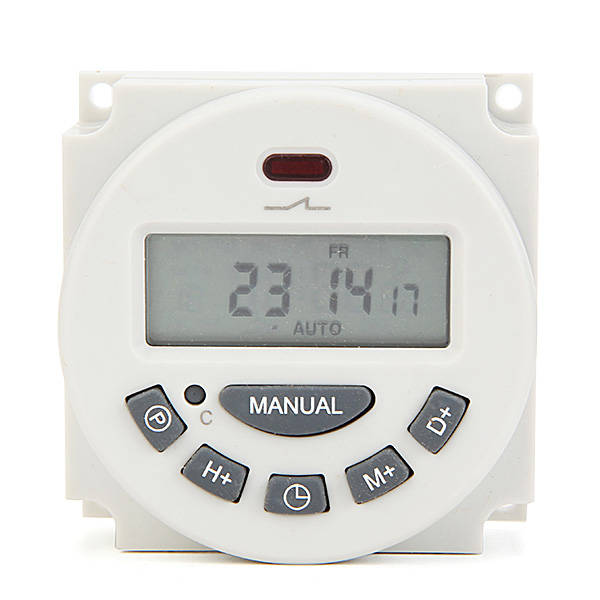

L701 Digital LCD Power Programmable Timer Switch Controller 16A 12V For LED Str

Package weight: 0.03 kg
Description:
The timer switch of L701 is controlling the equipment on-off by user setting the time of out product, so as to achieve energy saving and efficient
intelligent.  Our products are widely used for street lights, adverstising lights, neon lights, production equipment, household electrical appliances
which need setting an reqularly time period.

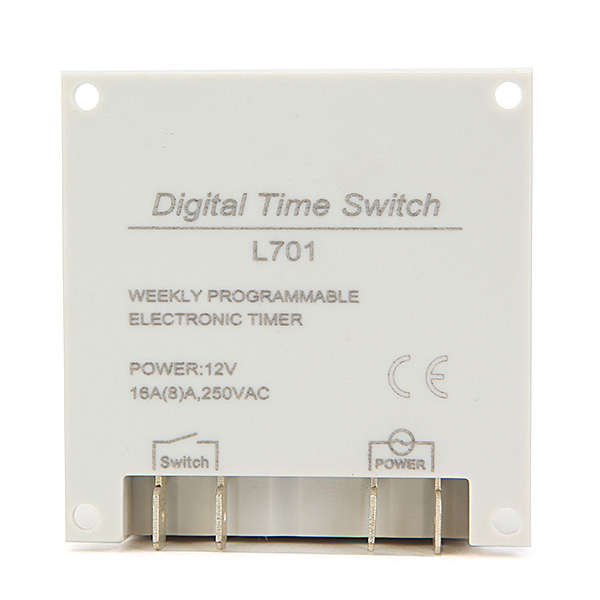

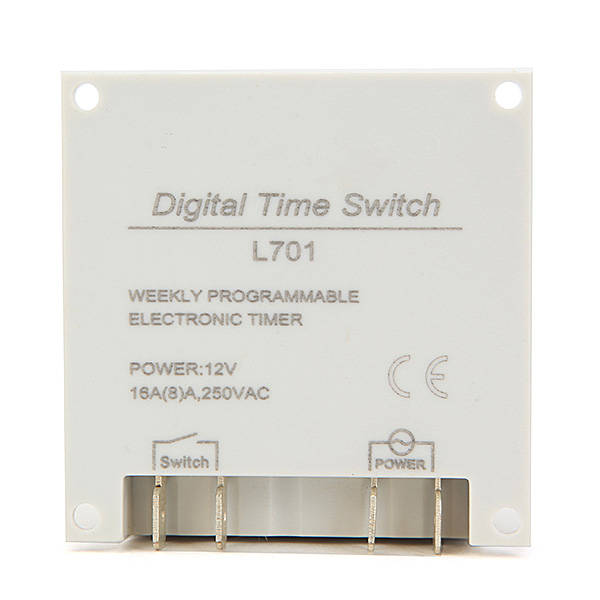

Technical Data:
Voltage rating: DC 12V
Timing range: 1min~168h
Hysteresis:≤ 1sec/day(25?)
ON/OFF operation: 16 ON & 16 OFF
Power consumption: 2VA(max)
Display: LCD
Switching contact: 1 changeover swith
Power reserve: 3 years (Lithium battery)
Minimum interval: 1 minute
Ambient temperature: -20~+55?
Ambient humidity: 35~85%RH
Weight: approx 40g
Dimensions : 60x60x32mm

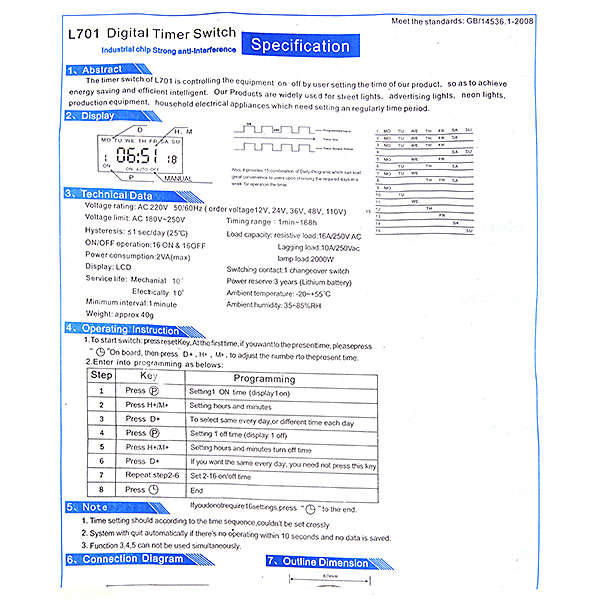

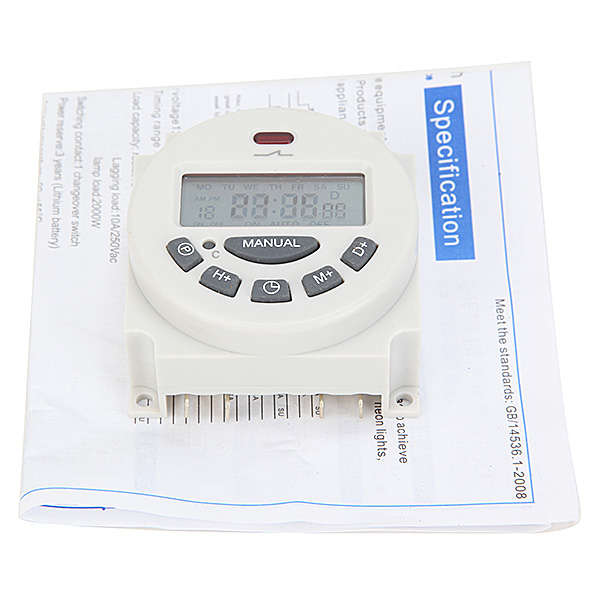

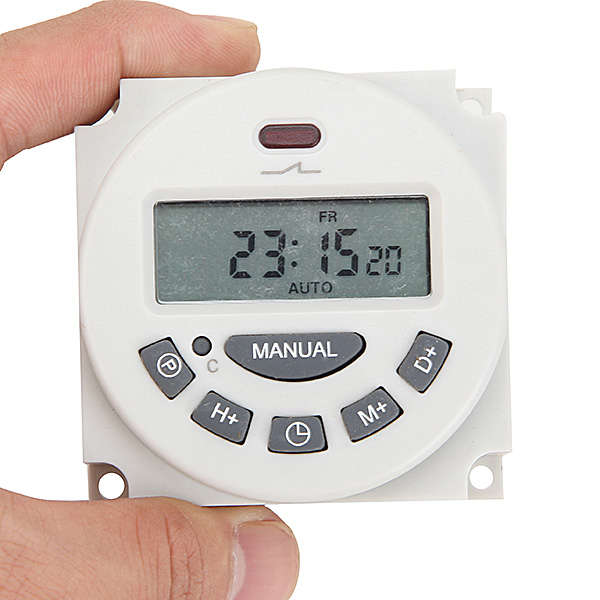

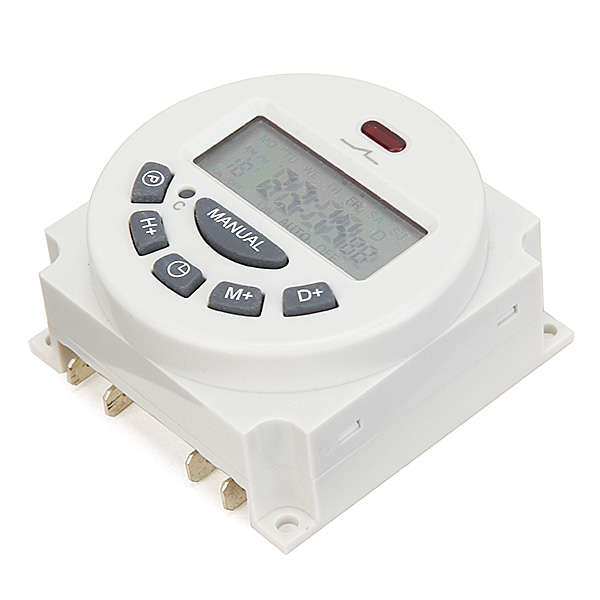

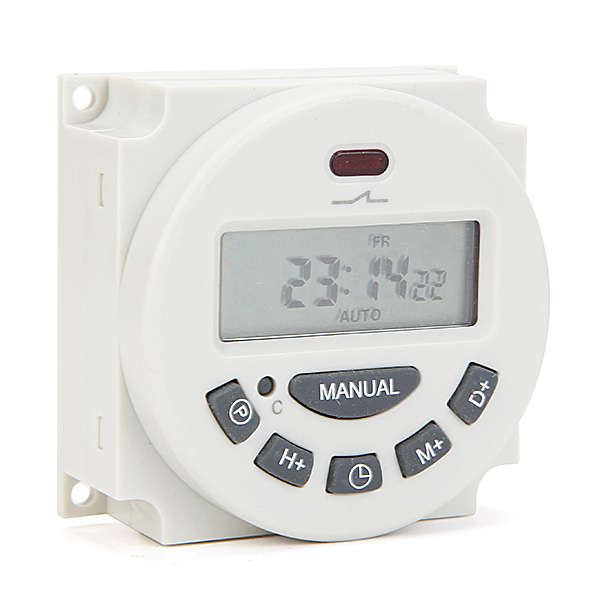

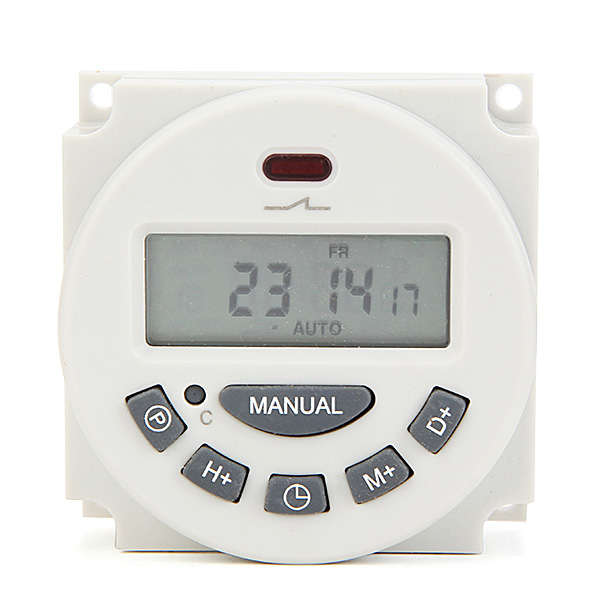

Operating Instruction:
1. To start switch: press reset Key. At the first time, if you want to the present time, please press "Clock" on board, then press D+, H+, M+ to
adjust the number to the present time.
2. Enter into programming as belows:

Step	Key	Programming
1	PresS "P"	Setting 1 ON time (display 1 on)
2	Press H+/M+	Setting hours and minutes
3	Press D+	to select same every day, or different time each day
4	Press "P"	setting 1 off time (display 1 off)
5	PressH+/M+	setting hours and minutes turn off time
6	Press D+	if you want the same every day, you don't need press this key
7	Repeat step 2-6	set 2-16 on/off time
8	Press "Clock"	end

Note:
1. Time setting should according to the time sequence, couldn't be set crossly.
2. System with quit automatically if there's no operating within 10 seconds and no data is saved.
3. Function 3, 4, 5 can not be used simultaneously.
Package Included:
1 x L701 Digital Timer Switch
1 x English/Chinese User Manual
