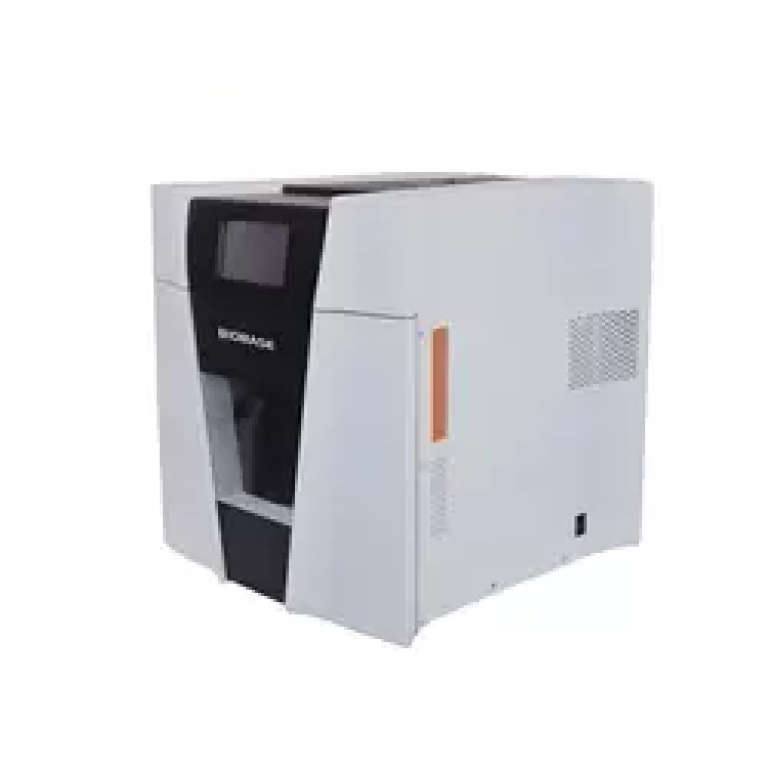

Laboratory Microwave Digestor System
Microwave Digester
Lab Digestion Equipment For Kjeldahl Regular Type High Security Microwave Digester
Description:
- Laboratory Microwave Digestor System
- Lab Digestion Equipment For Kjeldahl
Microwave Digester System adopts the international advanced double magnetron frequency microwave heatingsystem and realizes the high-power microwave balanced magnetic field safety heating.
lt is widely used in food, textle, plastic, geological, metallurgical, coal, biological medicine, petroleum chemical industry,environmental monitoring, sewage treatment, battery manufacturing, cosmetics, etc.
Features:
* Double magnetron variable frequency control system.
* High accuracy pressure sensor
* 7"LCD color touch screen display the temperature and pressure curve in real time.
* Built-in prestored methods and other programmable methods.
* Optical fiber temperature control system
* Multiple safety protection function
- lt has more than ten safety protection measures to ensure experiment safety，including temperature control system, pressure control system, explosion-proof security doors
- High-power exhaust system, program with suspend or start at any time.
- Ladder-style control temperature system.
- Video monitoring function for the BMD-1 model.
Model | BMD-1 | BMD-2 |
Cavity | 48L Resonant Cavity |
Digestion Method | 50 preinstalled methods, | 20 preinstalled methods, |
programmable 100 methods | programmable 50 methods |
Max. Temp. | 305 |
Temp. Accuracy | ±1 |
Pressure Accuracy | ±0.01Mpa |
Temperature Sensor | Optical Fiber Sensor |
Vessel Pressure Capacity | 80 Mpa | 75 Mpa |
Vessel Quantity | 12 Vessels | 10 Vessels |
Vessel Volume | 100ml |
Cooling Method | Forced air cooling |
Power Consumption | 1600W |
Power Supply | AC220±10%, 50Hz |
External Size(W*D*H) | 520*593*660mm |
Package Size(W*D*H) | 830*900*970mm |
Gross Weight | 107kg |
