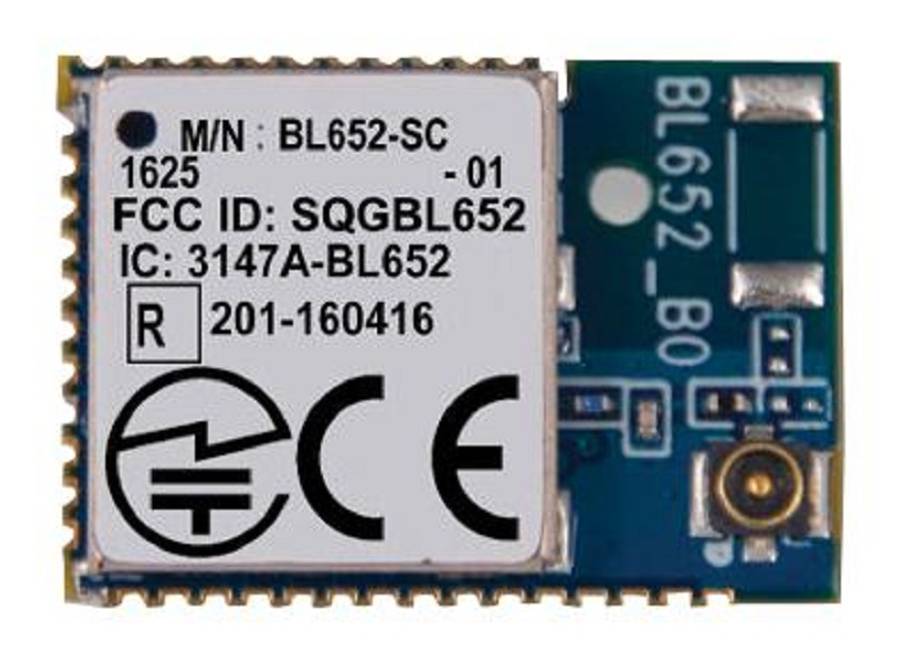

Laird Connectivity (BL652-SC-01) Bluetooth Module, 2.402 to 2.48GHz

Bluetooth Module BLE v4.2 Module NFC External Antenna, 2.402 to 2.48GHz, -96DbmProduct OverviewThe BL652-SC-01 is an intelligent BTv4.2 module featuring smartBASIC (externalantenna - connection via IPEX MH4). The BL652 series module designed to enableOEMs to add single-mode Bluetooth Low Energy (BLE) v4.2 to small, portable,power conscious devices. The BL652 modules are supported with Laird'ssmartBASIC, an event driven programming language that enables OEMs to make theirBLE product development quicker and simpler, significantly reducing time tomarket. smartBASIC enables customers to develop a complete embedded applicationinside the compact BL652 hardware, connecting to a wide array of externalsensors via its I2C, SPI, UART, ADC or GPIO interfaces. The BL652 also providesflexibility in the OEM's application development choice with full support forusing Nordic's SDK and firmware tools.Bluetooth v4.2 single mode, NFC-A listen mode compliantCompact footprint, frequency range from 2.402GHz to 2.480GHzProgrammable Tx power +4dBm to -20dBm, Tx whisper mode (-40dBm) & -96dBm RxsensitivityUltra low power consumption, 1.2µA typical standby doze, fast time to marketUART, GPIO, ADC, PWM, FREQ output, timers, I2C and SPI interfacesFCC, CE, IC and Japan certified, full Bluetooth declaration IDNo external components requiredIndustrial temperature range from -40°C to + 85°CPhysical dimensions of 14mm x 10mm x 2.1mm (TBC) with 0.75mm pad pitchWeight
