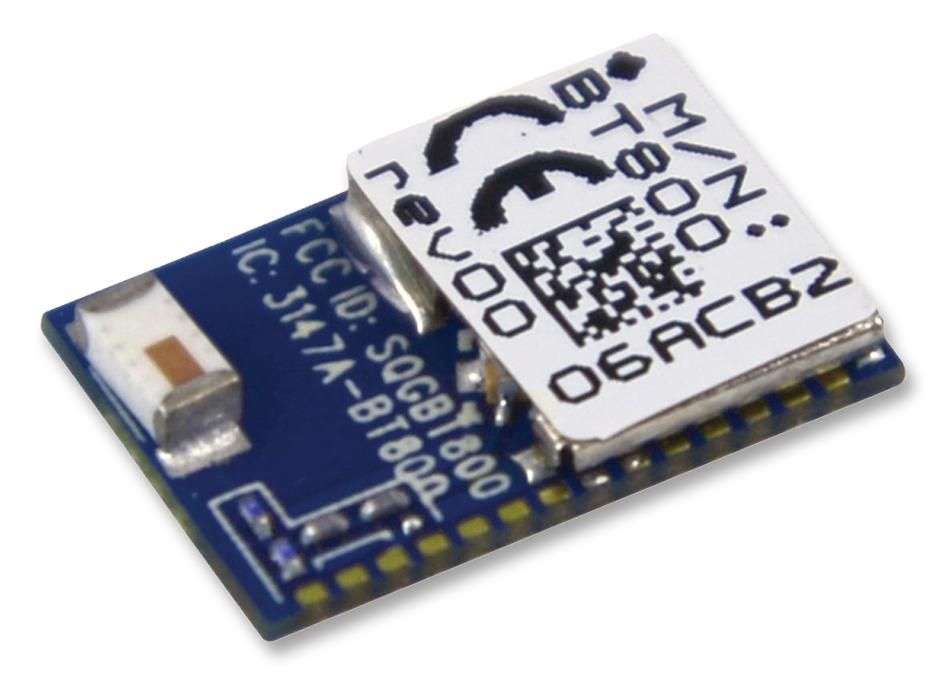

Laird Connectivity (BT800) Bluetooth v4.0 Class 1 USB HCI Module

Product OverviewThe BT800 provides exceptionally low power consumption with outstanding range.Supporting the latest Bluetooth v4.0 Specification with EDR (Enhanced DataRate), the module enables OEMs to accelerate their development time forleveraging either Classic Bluetooth or Bluetooth Low Energy (BLE) into theiroperating system based devices. The module presents an HCI interface and hasnative support for Windows and Linux Bluetooth software stacks. The BT800 deviceis fully qualified by the Bluetooth SIG. This also allows designers to integratetheir existing pre-approved Bluetooth Host and Profile subsystem stacks to gaina Bluetooth END product approval for their products.Bluetooth v4.0 - Dual ModeCompact FootprintClass 1 output - 8dBmUSB, GPIO, I2S & PCMIndustrial Temperature Range64k EEPROM support for HID Proxy ModeBluetooth SIG approvalsApplicationsWireless, RF Communications, Medical, Industrial, AutomotiveProduct InformationBluetooth Version: Bluetooth 4.0 + EDRSupply Voltage Min: 1.7VSupply Voltage Max: 3.6VSignal Range Max: 100mData Rate: 3MbpsBluetooth Class: Class 1Receive Sensitivity: -89dBmOperating Temperature Min: -30°COperating Temperature Max: 85°CProduct Range: BT800 series
