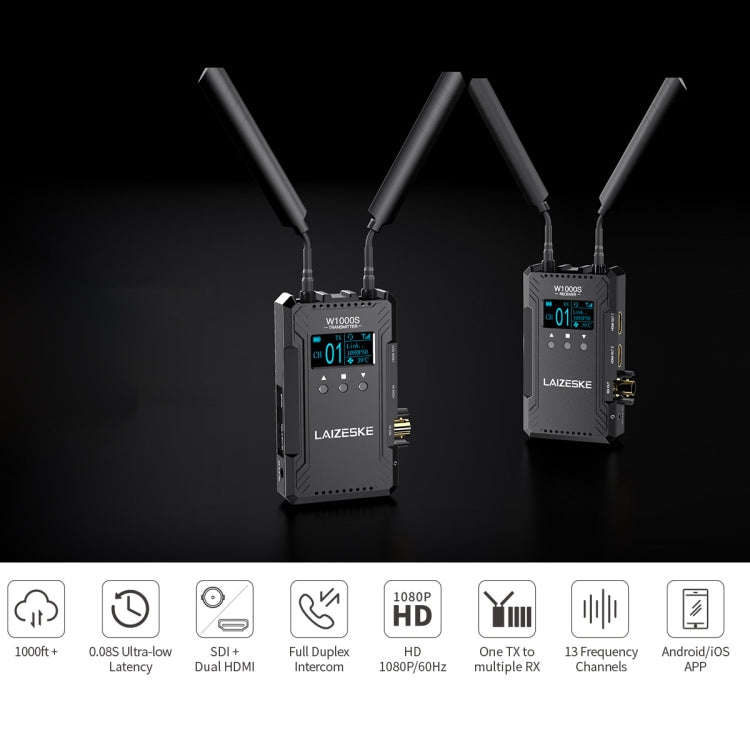

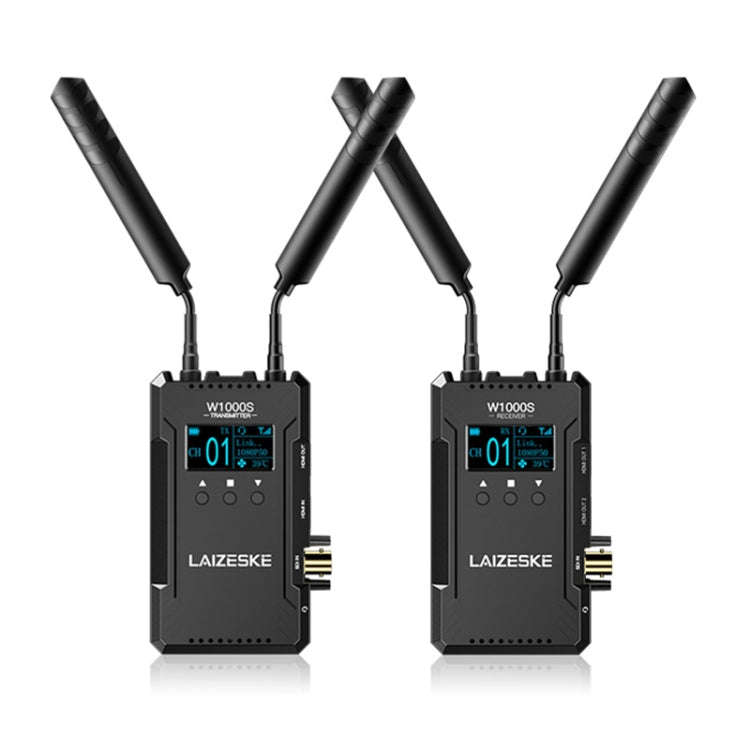

LAIZESKE W1000S 1000FT Dual HDMI + SDI Wireless Video Transmission System (Black)
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
DCA1466B
Bob Shop ID
614424292
Features
1. Dual HDMI-compatble + SDI signal interfaces, meet your different needs

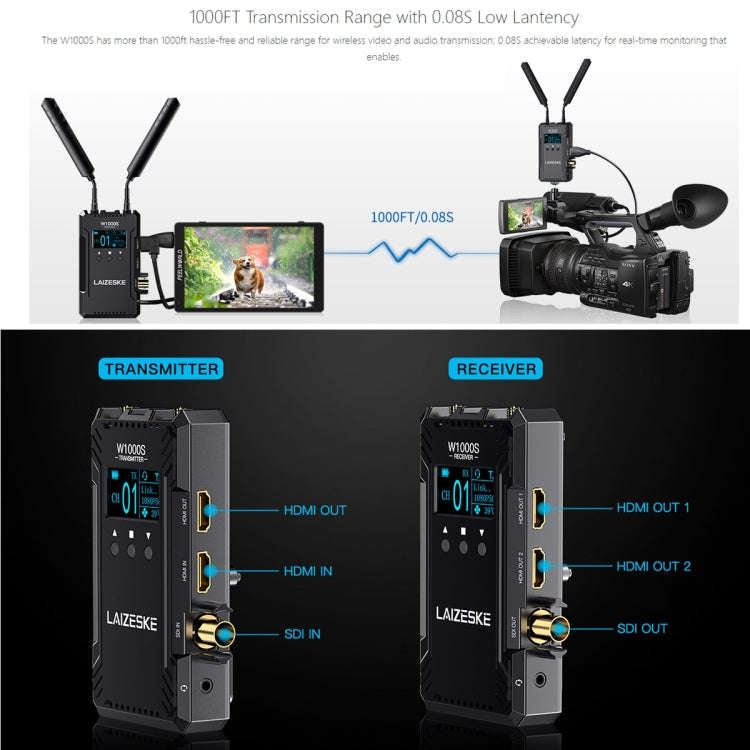

2. More than 1000ft transmission range with 0.08S ultra-low latency
3. Up to 1080P at 60Hz, provide high quality image

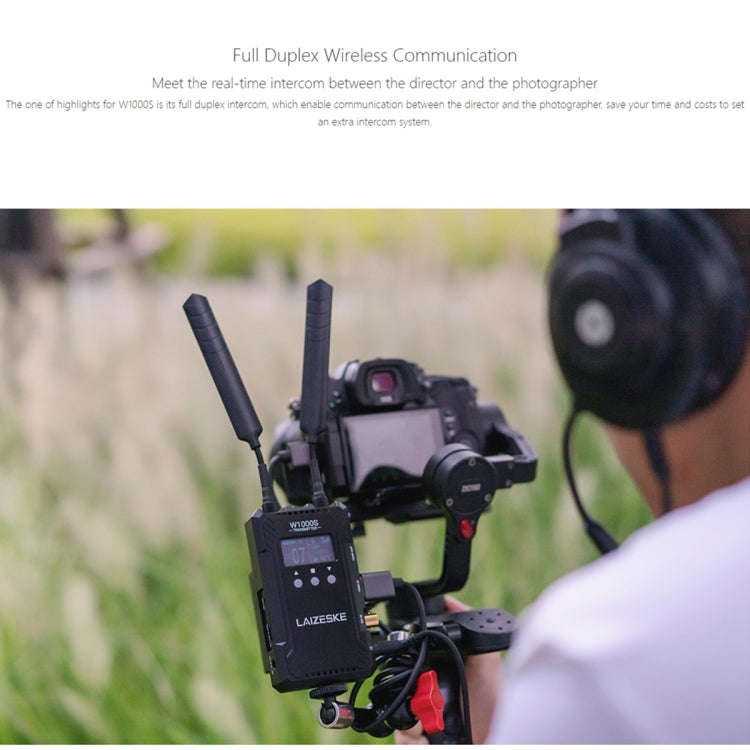

4. Wireless full-duplex talkback, real-time intercom between the director and the photographer

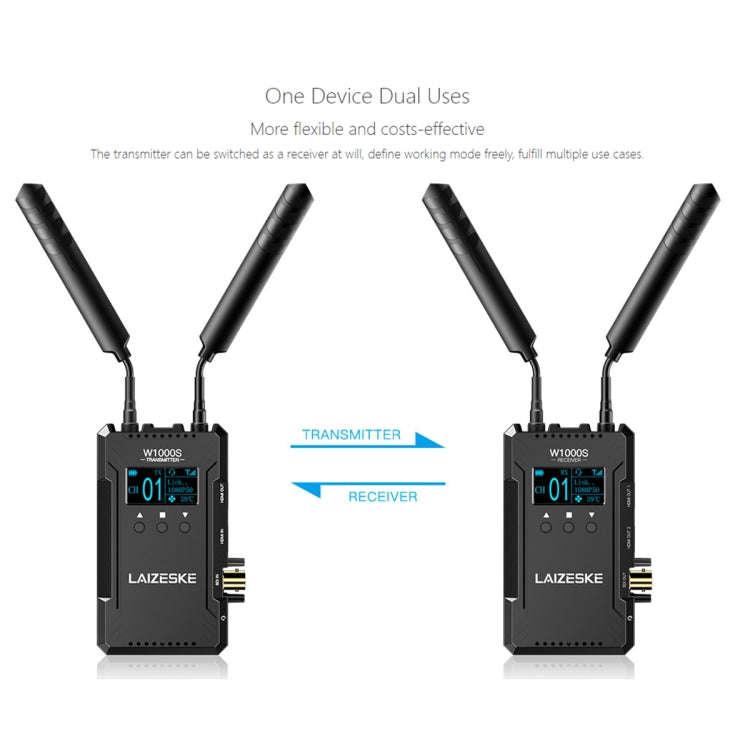

5. The transmitter can be switched as a receiver at will
6. One TX to multiple RX, monitoring for everyone on set
7. Real-time APP monitoring for Android/iOS system

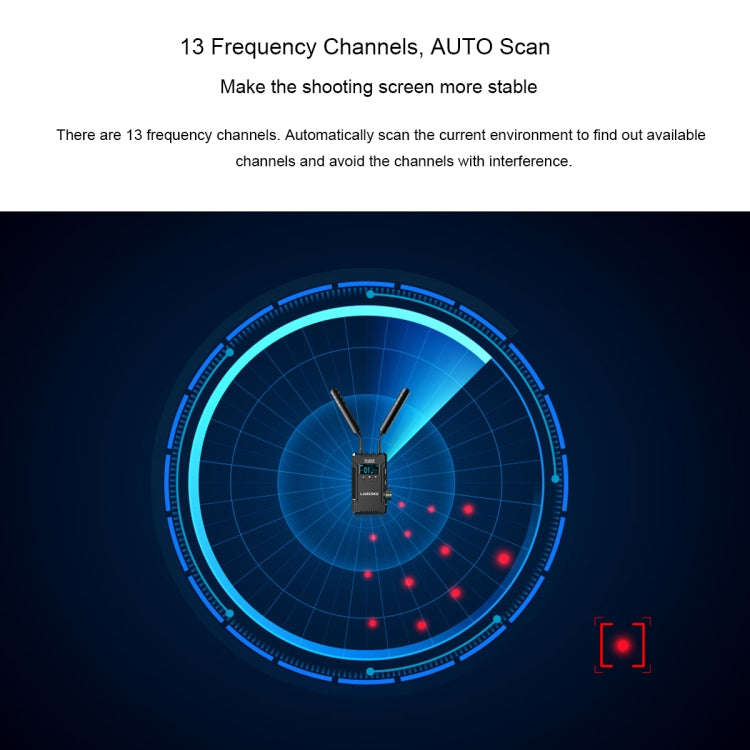

8. 13 frequency channels, AUTO channel scan
Transmitter Specifications

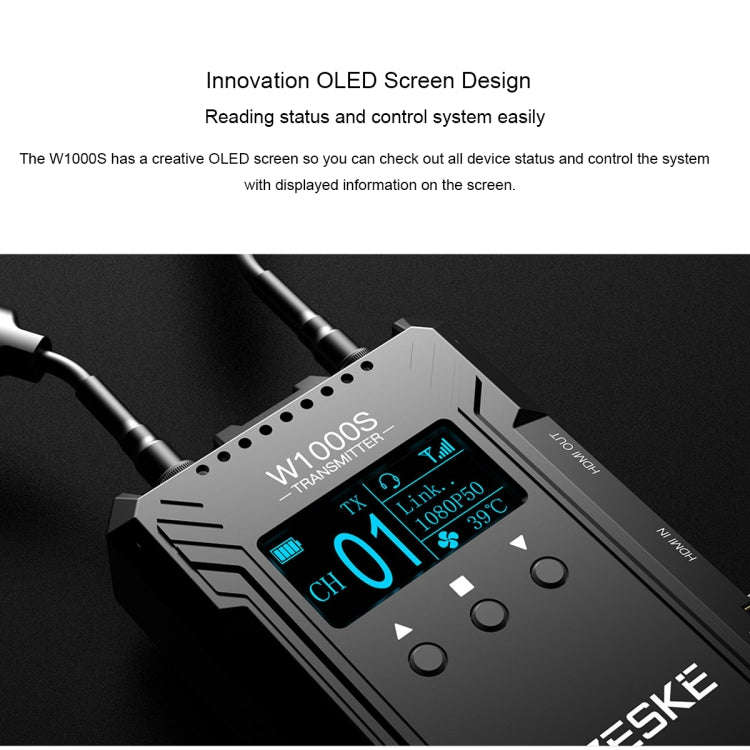

1. Screen: OLED
2. Interface
- SDI input
- HDMI input
- HDMI output
- Antenna port (RP-SMA Male)x 2
- DC power input
- 3.5mm headphone jack
- Type-C
3. Power Supply Way/Voltage:
- F970 battery (not included)
- Type-C: 5V/1.5A
- DC adapter: 6-16V
4. Power Consumption: Less than 7.5W
5. HDMI Format
- 480P 60, 576P 60
- 720P 60/59.94/50 /60
- 1080P 60/59.94/50/30/29.97/25/24/23.98 60
- 1080I 60/59.94/50/60fps
- HDMI: Type A
6. SDI Format
- 480P 60, 576P 60
- 720P 60/59.94/50
- 1080 P60/59.94/50/30/29.97/25/24/23.98
- 1080I 60/59.94/50
- 1*BNC
7. Frequency: 5.1-5.9GHz
8. Modulation Mode: OFDM
9. Transmission Power: 17dBm
10. Band Width: 20MHZ
11. Occupied Bandwidth: 20/40MHz
12. Latency: 0.08S
13. Intercom Frequency Response Range: 20Hz~20KHz
14. Operating Temperature: 0 degree C to 40 degree C
15. Storage Temperature: -20 degree C to 60 degree C

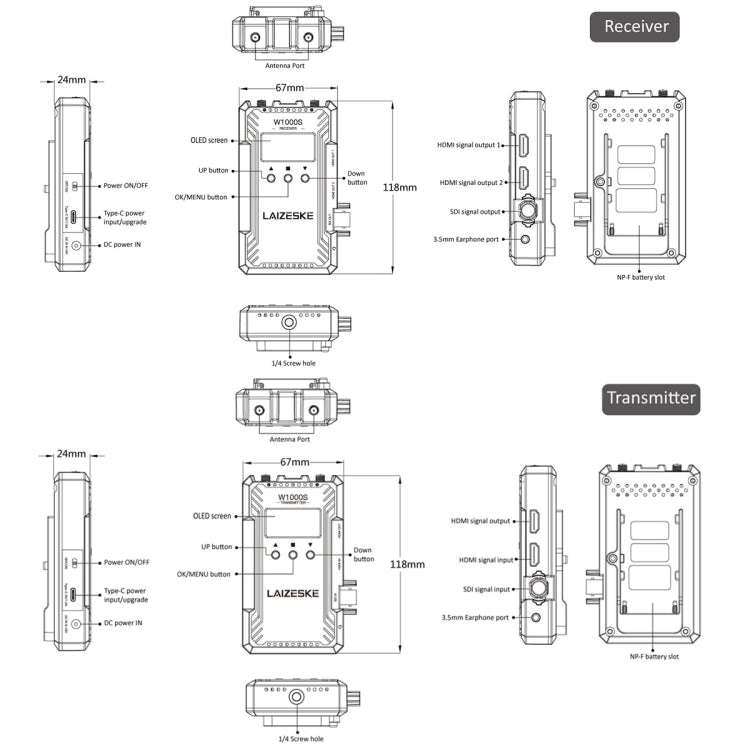

16. Unit Size(mm): 67L x 24W x 118H (excluding antenna)
17. Unit Weight: 128g
Receiver Specifications
1. Screen: OLED
2. Interface
- SDI input
- HDMI output x 2
- Antenna port (RP-SMA Male)x 2
- DC power input
- 3.5mm headphone jack
- Type-C
3. Power Supply Way/Voltage:
- F970 battery (not included)
- Type-C: 5V/1.5A
- DC adapter: 6-16V
4. Power Consumption: Less than 6.5W
5. HDMI Format
- 480P 60, 576P 60
- 720P 60/59.94/50 /60
- 1080P 60/59.94/50/30/29.97/25/24/23.98 60
- 1080I 60/59.94/50/60fps
- HDMI: Type A
6. SDI Format
- 480P 60, 576P 60
- 720P 60/59.94/50
- 1080 P60/59.94/50/30/29.97/25/24/23.98
- 1080I 60/59.94/50
- 1*BNC
7. Frequency: 5.1-5.9GHz
8. Modulation Mode: OFDM
9. Transmission Power: 17dBm
10. Band Width: 20MHZ
11. Occupied Bandwidth: 20/40MHz
12. Latency: 0.08S
13. Intercom Frequency Response Range: 20Hz~20KHz
14. Operating Temperature: 0 degree C ??? 40 degree C
15. Storage Temperature: -20 degree C ??? 60 degree C
16. Unit Size(mm): 67L x 24W x 118H (excluding antenna???
17. Unit Weight: 128g

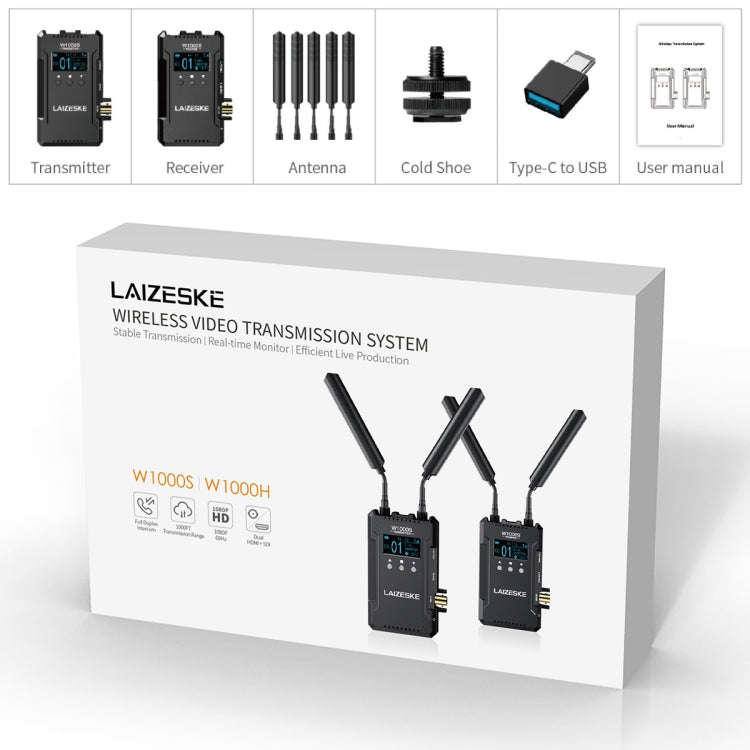

Package List
1. Transmitter x 1
2. Receiver x 1
3. Antenna x 5
4. Cold Shoe x 1
5. Type-C to USB x 1
6. User Manual x 1
