Introduction:
>>>Manual: Click here to open<<<
- 53 animations: the switching, speed, direction and color of the animation can be adjusted by themselves. Among them, 36 kinds of animations can be adjusted by themselves, and the rest are all seven color animations, with 4 pieces of custom colors (4 pieces: top layer, middle upper layer, middle lower layer and bottom layer)
- 13 animation spectrum: 12 music spectrum and 1 mixed spectrum
- Built in amplifier module and speaker: no need to connect external speaker
- Multiple control modes: support infrared remote control and Android App control
- Bluetooth music player: support Bluetooth 5.0
Parameter:
Size: 100 * 100 * 1000mm (lamp ring version) / 100 * 100 * 800mm (ordinary version)

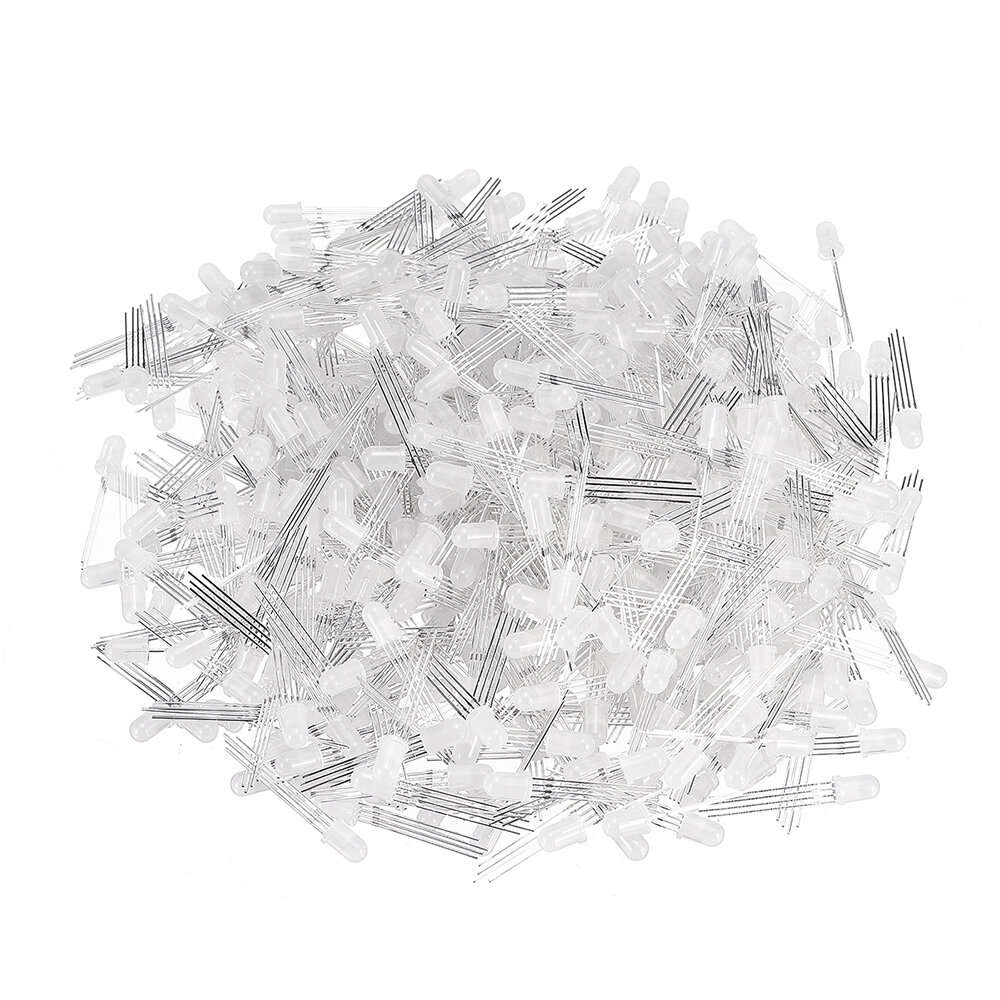

Number of lamp beads: about 550
Product weight: 450g (without shell)
Animation effect: 53 kinds
Animation editing: app custom animation effect
Offline Animation: loop animation
Audio cable: 3.5mm audio cable
LED Driver: MCU control 74hc573, ULN2803 chip driver
Horn type: 3W / 4
Control mode: infrared remote control, Android App control
Connection type: Bluetooth connection, 3.5mm audio interface
Power parameter: DC5V / 3A (to be purchased separately)

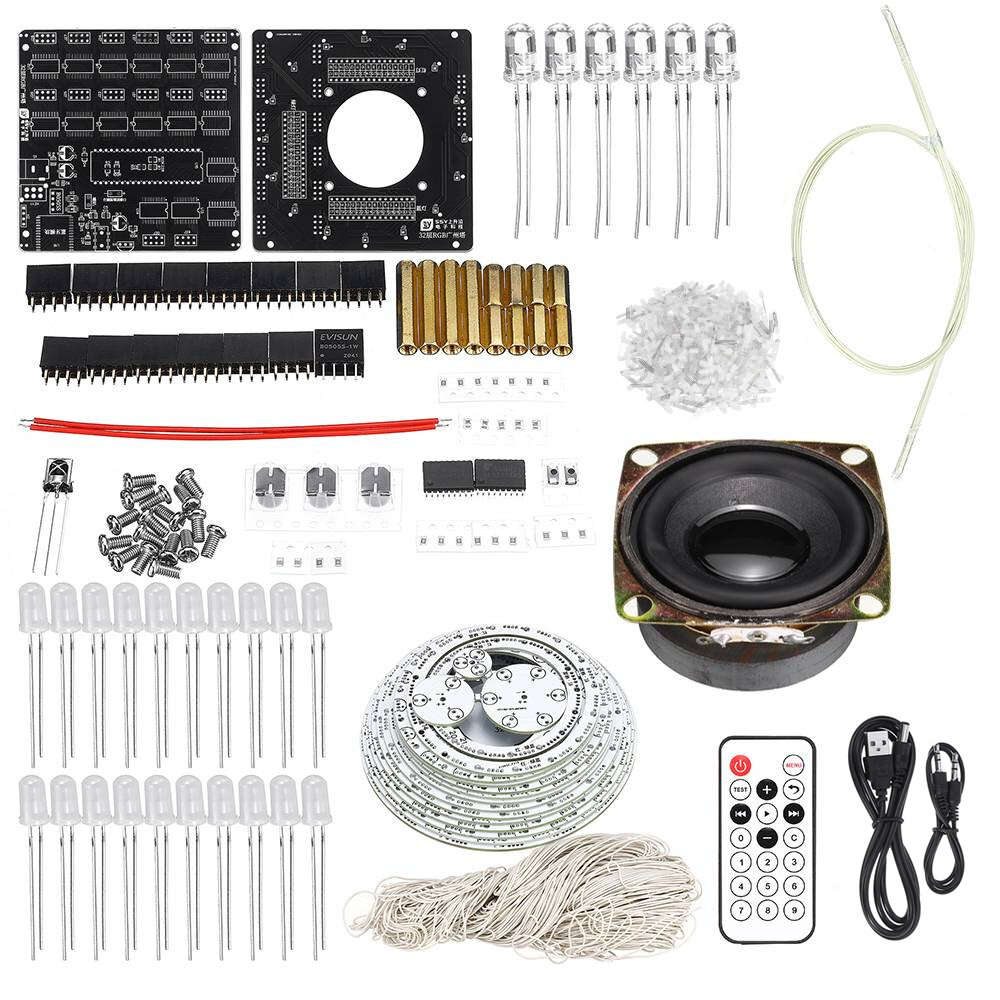

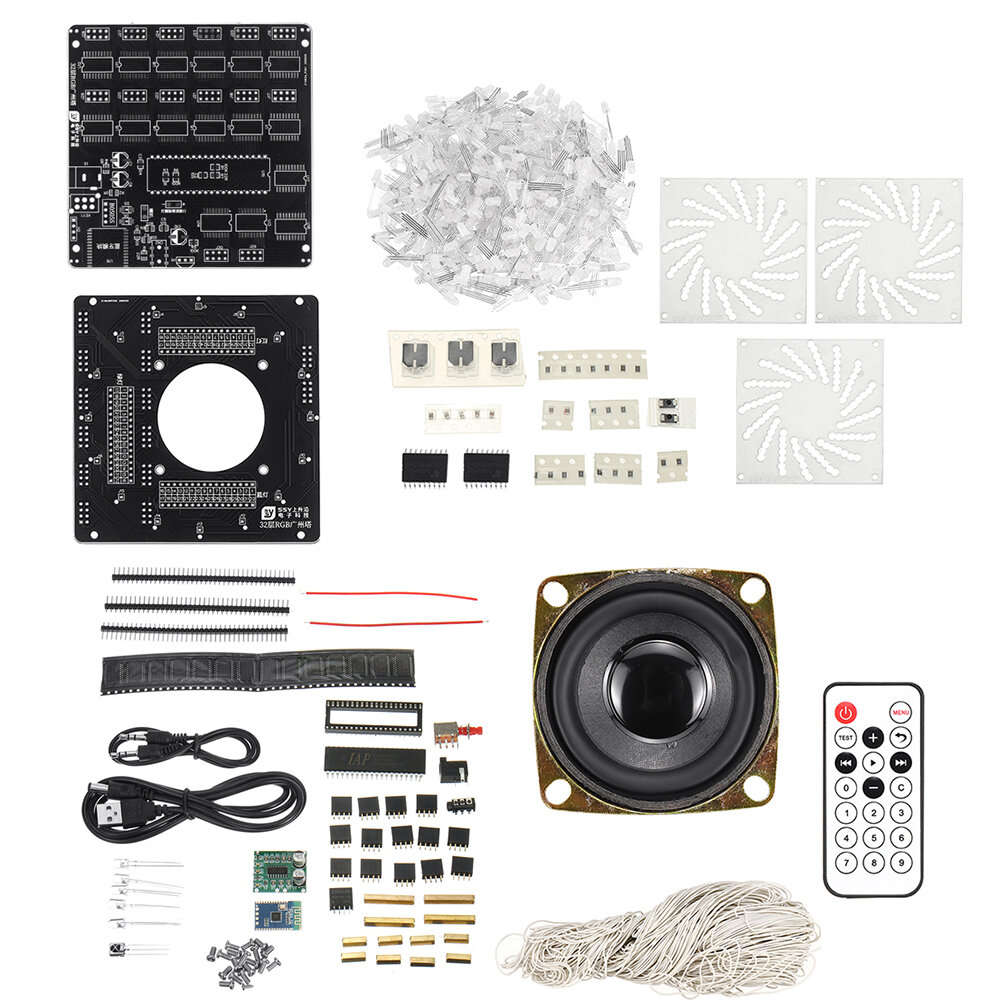

Component list
| Name | Welding position | Number |
| Patch 74HC573D | U1--U12U17,U17 | 14 |
| Patch ULN2803 | U13,U14 | 2 |
| 8p Female Socket(4x2) | 14 | |
| 40p Chip Socket | U15 | 1 |
| 10v 470uf SMD Electrolytic Capacitor | C1,C10,C5 | 3 |
| Infrared Receiver | H1 | 1 |
| Audio Socket | 1 | |
| DC2.1 Power Socket | S1 | 1 |
| Red Self locking Switch | KEY1 | 1 |
| Singlechip IAP15W4K58S4 | 1 | |
| Chip Diode SS24 | D5,D6 | 2 |
| 5mm Plug In Highlight Colorful | D1,D2,D3,D4 | 5 |
| Bt401 Dual Mode Bluetooth Module | U16 | 1 |
| 4230e Power Amplifier Module | U22 | 1 |
| Chip Resistor 100k 0805 | R1,R5 | 3 |
| Chip Resistor 22r 0805 | R7,R8,R9 | 4 |
| Chip Resistor 100r 0805 | R6 | 2 |
| Chip Resistor 1k 0805 | R3 | 2 |
| Chip Resistor 0r 0805 | R4,R2 | 3 |
| Chip Capacitor 104 0805 | C3 | 2 |
| Chip Capacitor 105 0805 | C2,C5,C4,C8 | 5 |
| b0505s Isolated Power Module | 1 | |
| 12mm Copper Pillar | 8 | |
| 25mm Copper Pillar | for horn | 4 |
| m3x6 Screw | 18 | |
| White Ok Line | 40m | |
| Audio Cable |
