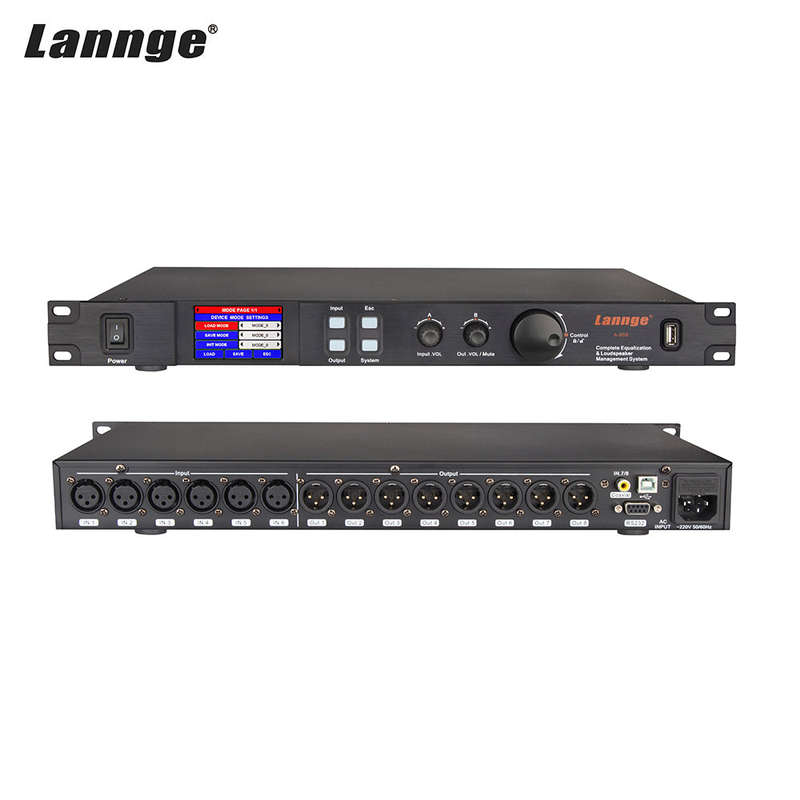

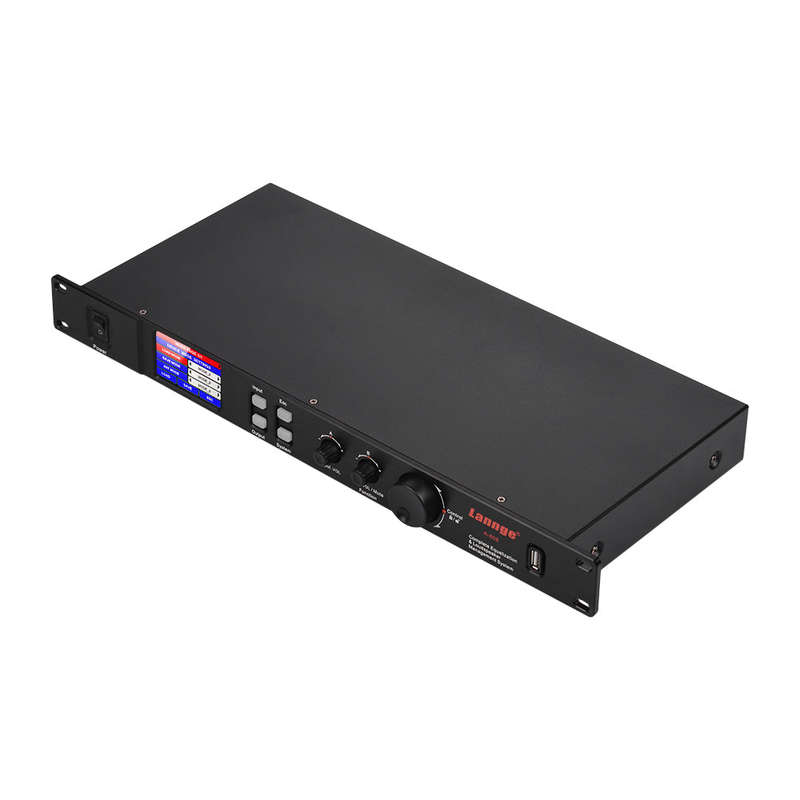

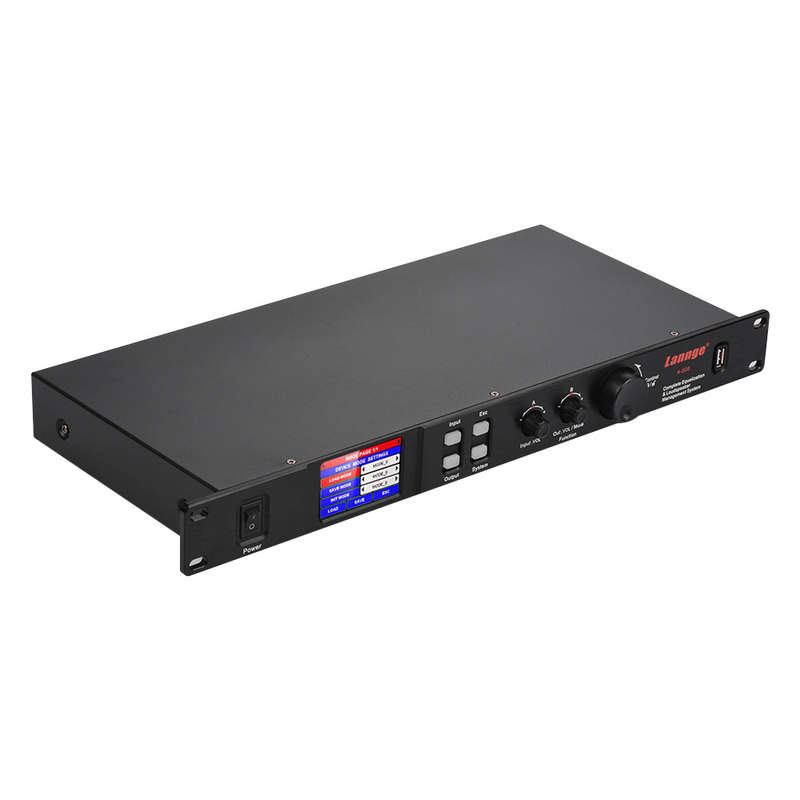

Lannge A-808 8 IN & 8 OUT Digital Audio Processor LCD Touchscreen 32bit DSP with USB RS232 Co

Features:
8 IN & 8 OUT digital audio processor with 2.75 inches colorful touchscreen, is easy and convenient to operate and suitable for multifunctional auditoriums, stages, Pubs, large conference rooms and etc.
6 ways analogue and 1 group of S/PDIF coaxial stereo inputs, each way can be independently set 7 bands parameter EQ, with high/low pass filter, compressor, noise gate, phase and route.
8 ways output, each way can be independently set 7 bands parameter EQ, with high/low pass filter, compressor, phase and etc, to fit more occasions.
High power floating decimal 32 bit DSP, makes frequency band wider and dynamic range larger; 6 signal generator: frequency sweep, sine wave, square wave, pulse, white noise, pink noise, easy to set and test audio system.
Users can easily set parameters on software after connecting the digital audio processor with PC via USB or RS232 interface, and supports 10 modes of preset parameters. Customized system key/password lock can prevent settings from being mistakenly modified.
Routing bus, uses can quickly send input signal to specific output channels, easy to build a complex audio system. 1U rack mount case, unique streamline design with brushed aluminum alloy front panel.

Specification:
Brand: Lannge
Model: A-808
SNR: 115dB(1-6 input), 120dB(7-8 input)
THD: <=0.01%(1-6 input), <=0.005%(7-8 input)
Frequency response: 20Hz-20KHz￯ﾼﾈￂﾱ1dB￯ﾼﾉ
Max input level: +7dBu(1-6 input), +2dBu(7-8 input)
Max output level: +12dBu
Input impedance: 10K Ohm
Output impedance: 300 Ohm
DSP processor: 32bit
AD/DA: 192KHz 24bit
Supply Voltage: AC 220V/50HZ ￂﾱ10% or AC 110V/60HZ ￂﾱ10%
Item Size: 48.2 * 19.8 * 4.5cm/ 19 * 7.8 * 1.8in
Item Weight: 2800g/ 6.2lbs
Package Size: 53 * 38.5 * 9cm/ 20.9 * 15.2 * 3.5in
Package Weight: 3630g/ 8lbs

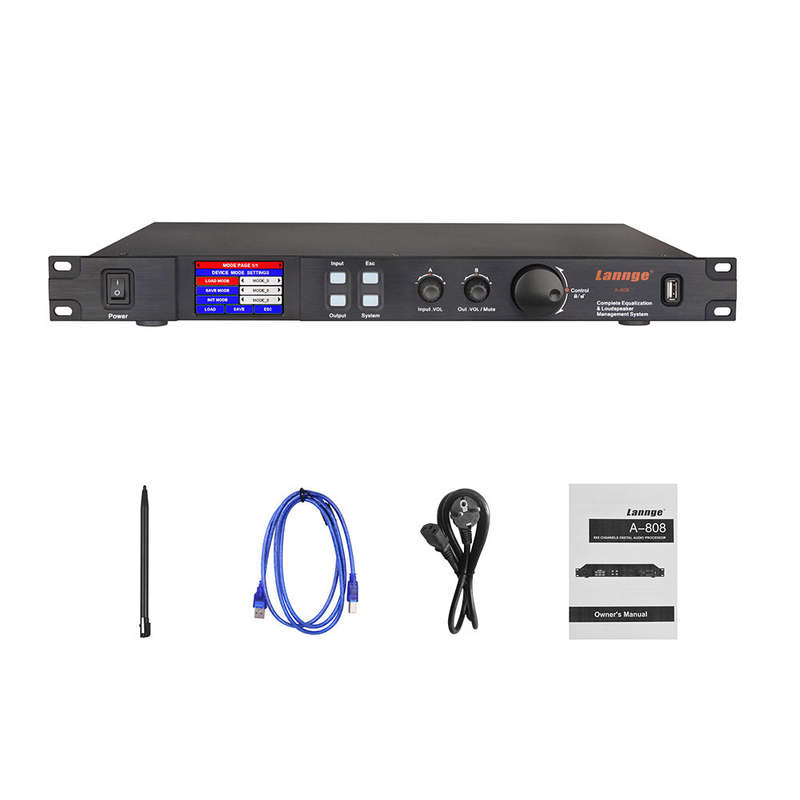

Package List:
1 * Audio Processor
1 * USB Cable
1 * Power Cord
1 * Touchscreen Pen
1 * Users Manual(English)
