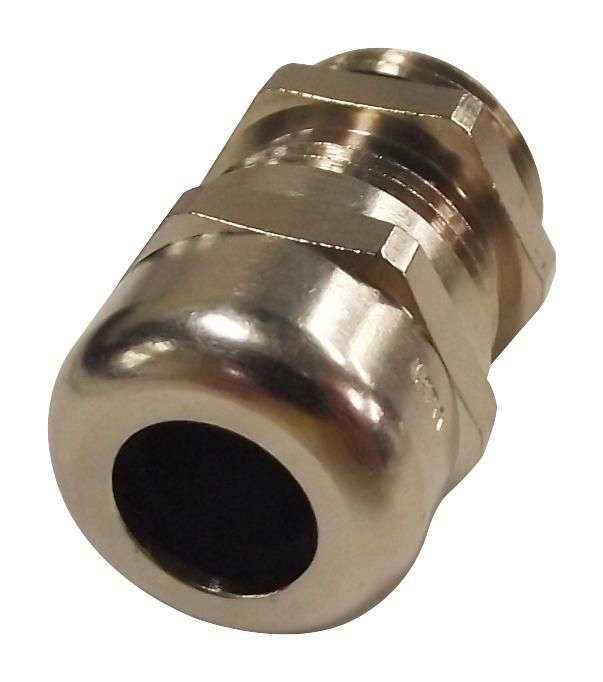

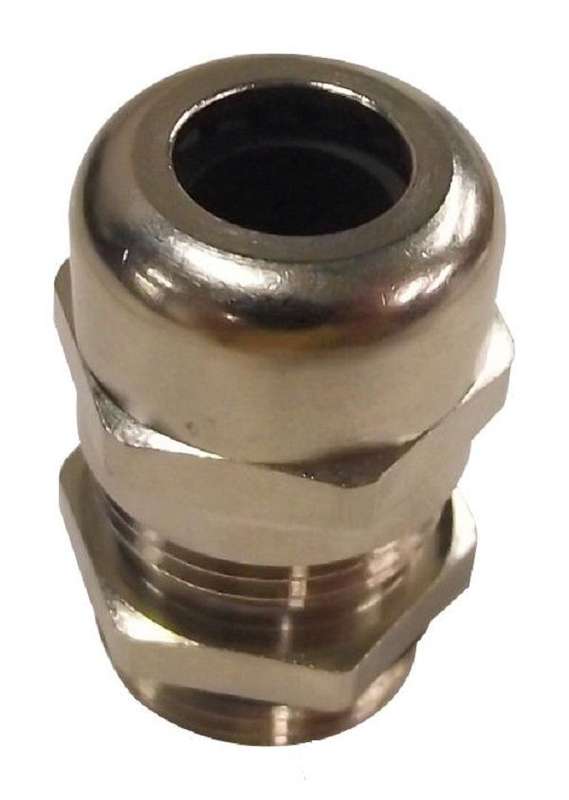

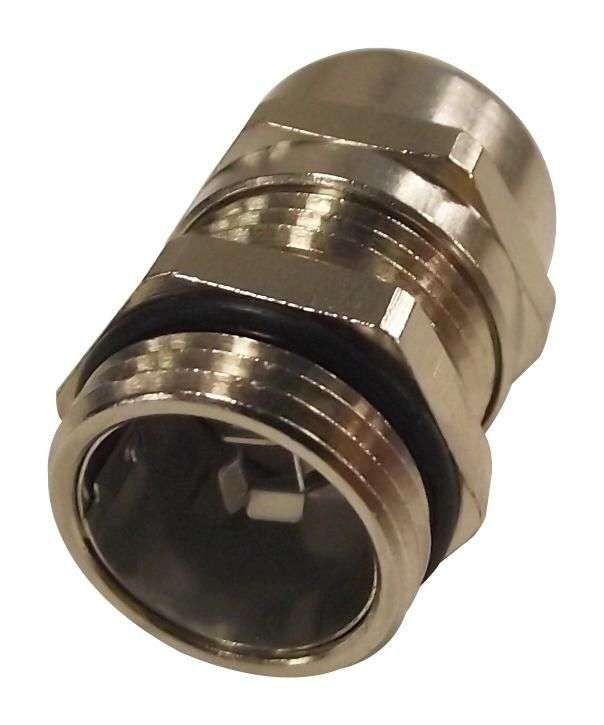

Lapp Kabel (53112220) Cable Gland, PG11, 4 mm, 10 mm, Brass

Cable Gland, PG11, 4 mm, 10 mm, Brass, Metallic - Nickel FinishProduct InformationThread Size - Imperial: PG11Cable Diameter Min: 4mmCable Diameter Max: 10mmCable Gland Material: BrassGland Colour: Metallic - Nickel FinishIP / NEMA Rating: IP68Product OverviewThe 53112220 is a SKINTOP® MS-SC PG11 silver Cable Gland made of brass withnickel plated finish, polyamide insert, CR sealing ring and NBR O-ring. Thisgland is highly conductive, flexible EMC contact for clamping various screendiameters. The SKINTOP® MS-SC screen connection is the ideal gland for allcopper-screened cables. The widely variable clamping ranges greatly simplifymounting and allocation and thus permit economic storage. With the SKINTOP®MS-SC the cable's screening braid is not only there for mechanical strength, butalso helps achieve an optimum low resistance screen contact. Suitable for cableswith and without inner sheath and also continuing the cable screen to anotherconnection. For EMC-compliant earthing of the copper braiding or for cables withcopper shaft sheath.Centralized, attached, strain-relieved and hermetically sealed cableLow-resistance screen contact, optimum EMC protectionFew operation steps, easy to assemble-30 to 100°C Temperature rangeApplicationsTest & Measurement, Automation & Process Control, Communications & Networking,Industrial
