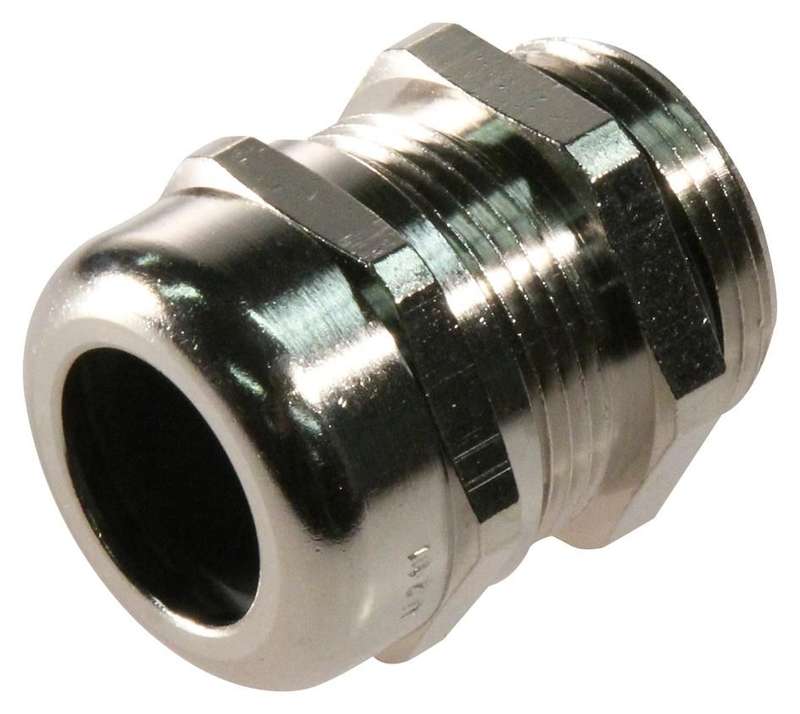

Lapp Kabel (53112630) Cable Gland, Skintop MS-SC-M, IP/NEMA

Cable Gland, Skintop® MS-SC-M, IP/NEMA, M20 x 1.5, 7 mm, 13 mm, Brass, Metallic- Nickel FinishProduct InformationThread Size - Metric: M20 x 1.5Cable Diameter Min: 7mmCable Diameter Max: 13mmCable Gland Material: BrassGland Colour: Metallic - Nickel FinishIP / NEMA Rating: IP68, IP69, NEMA 1, NEMA 4X, NEMA 6, NEMA 12Product Range: Skintop MS-SC-MProduct OverviewThe 53112630 is a Cable Gland with low-resistance screen contact and highlyconductive, flexible EMC contact easy to assemble. The SKINTOP® MS-SC-M cablegland is made of nickel-plated brass suitable for cables with and without innersheath. Also suitable for continuing the cable screen to another connection. Fewoperation steps, easy to assemble. For EMC-compliant earthing of the copperbraiding or for cables with copper shaft sheath.Low-resistance screen contact, optimum EMC protectionHighly conductive, flexible EMC contact for clamping various screen diametersFew operation steps, easy to assemble-25°C Dynamic/-40°C Statically to +100°C Temperature rangeSuitable for cables with and without inner sheath and for continuing cablescreen to another connectionApplicationsTest & Measurement, Automation & Process Control, Telecommunications, Industrial
