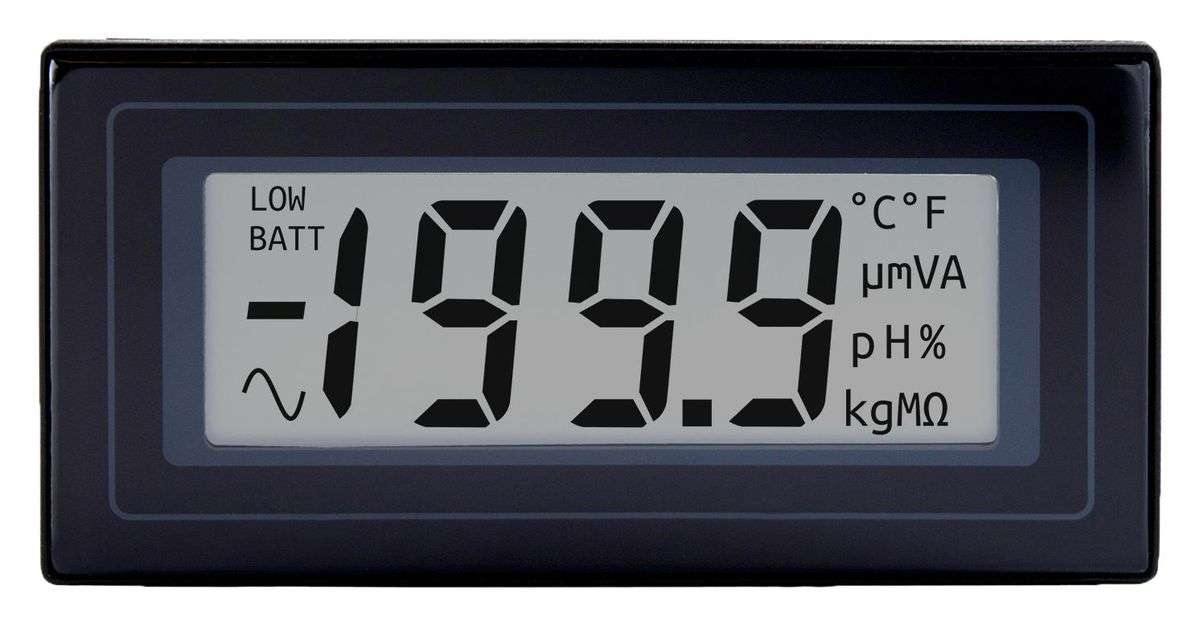

Lascar (DPM 2000) Digital Panel Meter, LCD, 3-1/2 Digits, DC Voltage

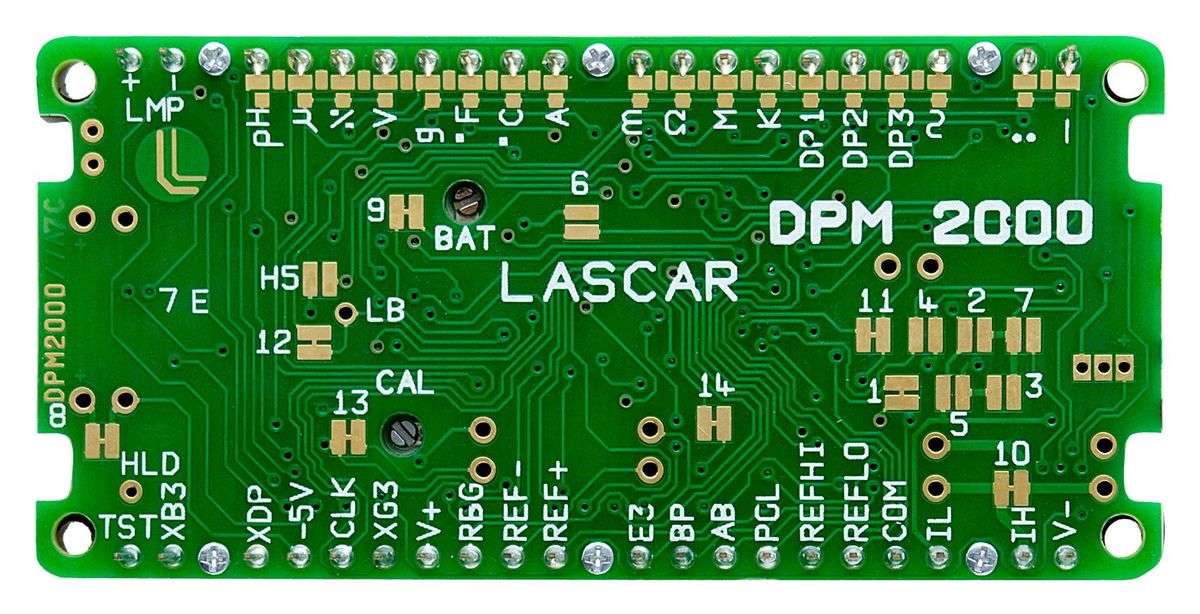

Digital Panel Meter, LCD, 3-1/2 Digits, DC Voltage, 0mV to 200mVProduct InformationNo. of Digits / Alpha: 3-1/2Meter Function: DC VoltageMeter Range: 0mV to 200mVDigit Height: 15mmPanel Cutout Height: 33mmPanel Cutout Width: 68mmSupply Voltage Min: 7.5VSupply Voltage Max: 14VOperating Temperature Min: 0°COperating Temperature Max: 50°CProduct OverviewThe DPM 2000 is a 3-1/2-digit compact panel LCD Voltmeter with 15mm digit heightand a low-profile bezel for mounting. With a 200mVDC full scale reading,auto-zero, auto-polarity and programmable decimal points, this meter plugsdirectly into a single-in-line (SIL) socket or can be panel mounted using thesnap-in bezel and window supplied.Single rail version3 Samples/sec rateApplicationsIndustrial, Clock & Timing, Test & Measurement, Portable Devices
