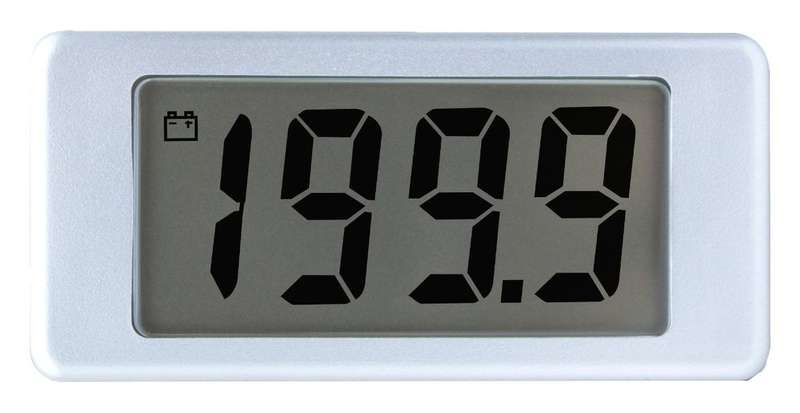

Lascar (EMV 1025S-01) Digital Panel Meter, 3-1/2 Digits, DC Voltag

Digital Panel Meter, 3-1/2 Digits, DC Voltage, 0mV to 200mVProduct InformationNo. of Digits / Alpha: 3-1/2Meter Function: DC VoltageMeter Range: 0mV to 200mVDigit Height: 12.5mmPanel Cutout Height: 15mmPanel Cutout Width: 30.99mmSupply Voltage Min: 3.5VDCSupply Voltage Max: 7VDCOperating Temperature Min: 0°COperating Temperature Max: 50°CProduct OverviewThe EMV 1025S-01 is a LCD Digital Voltmeter is fitted to the panel by locatingits screw threaded stud through the hole, adding the washer and tightening thenut provided. Installation time is greatly reduced with only 3-wires to connect.It features a full scale reading of 200mV and a decimal point fixed at 199.9.The meter can be panel mounted by drilling a 5.5mm (0.22") hole. Connection tothe meter is via three wires. This is a popular part, normally stocked in highquantity and suitable for new designs.Single hole mounting thermometer12.5mm Digit heightAuto-zero and Auto-polaritySplash-proof protectionLow battery warning-0 to 50°C Operating temperature rangeApplicationsIndustrial, Automation & Process Control
