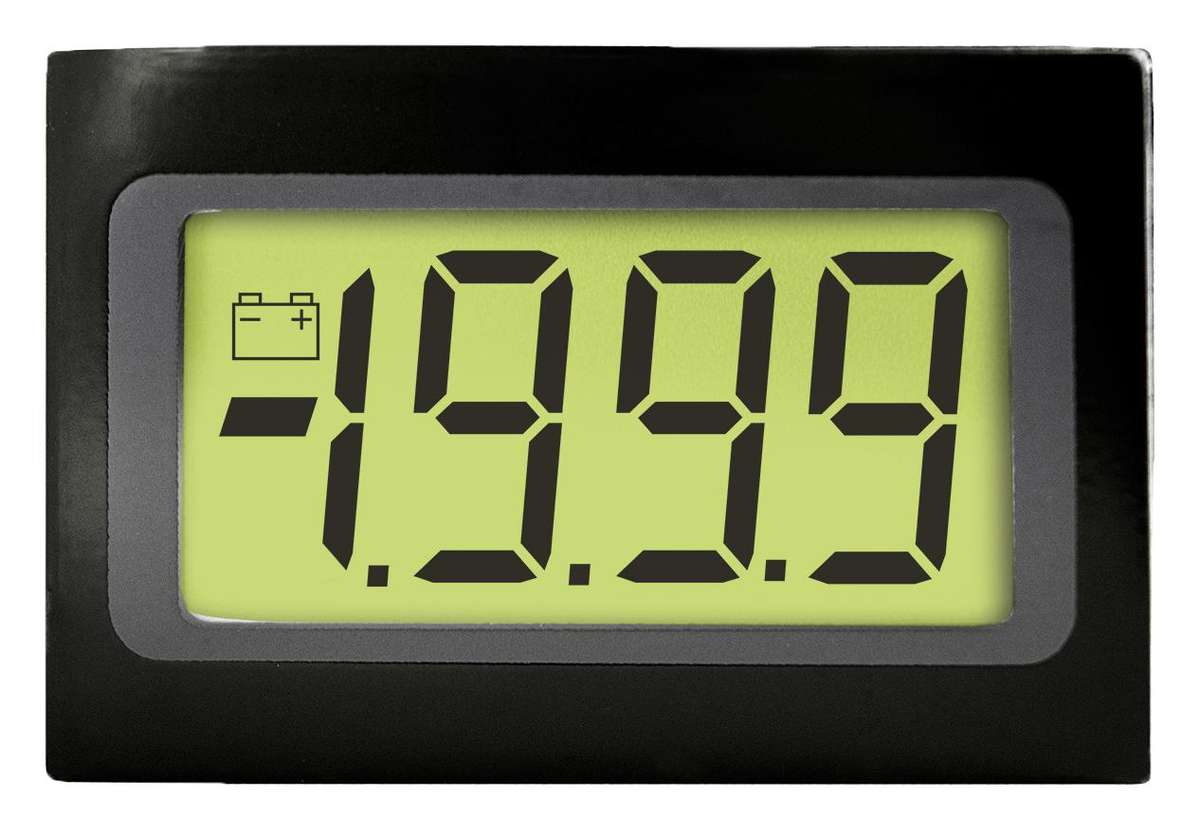

Lascar (SP200) Digital Digital Panel Meter, 3-1/2 Digits, DC Voltage

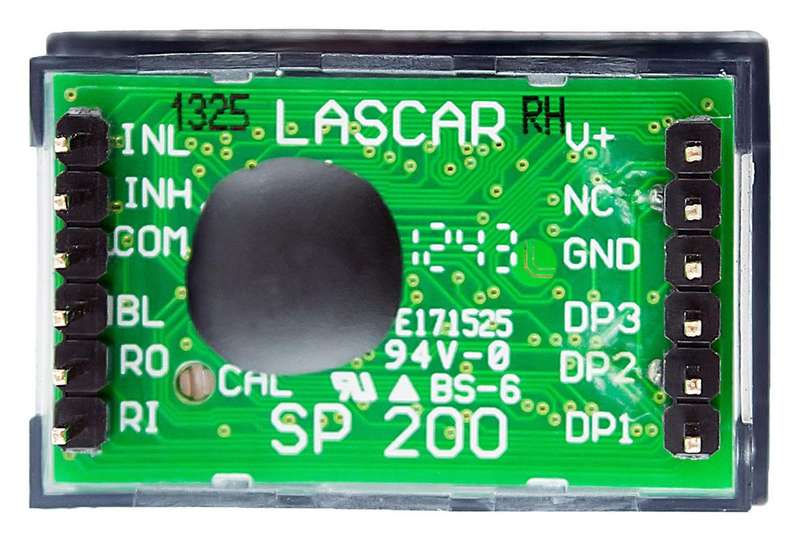

Digital Panel Meter, 3-1/2 Digits, DC Voltage, 0mV to 200mVProduct InformationNo. of Digits / Alpha: 3-1/2Meter Function: DC VoltageMeter Range: 0mV to 200mVDigit Height: 9.75mmPanel Cutout Height: 21.3mmPanel Cutout Width: 34mmSupply Voltage Min: 3.5VSupply Voltage Max: 5.25VOperating Temperature Min: 0°COperating Temperature Max: 50°CProduct OverviewThe SP200 is a 3.5-digit Backlit LCD Voltmeter features a 200mVDC measurementrange with auto-zero and auto-polarity. Decimal points are user selectable. TheSP200 features a negative rail generator which enables the meter to measure asignal referenced to its own power supply GND. LED backlighting ensuresexcellent readability under low light conditions. The design of the panelmeter's housing ensures splash-proofing using the supplied seal.Programmable decimal points9.75mm Digit heightLED backlightingAuto-zero and Auto-polarityLow battery warningSplash-proof protection-0 to 50°C Operating temperature rangeApplicationsPower Management, System Monitoring, Automation & Process Control
