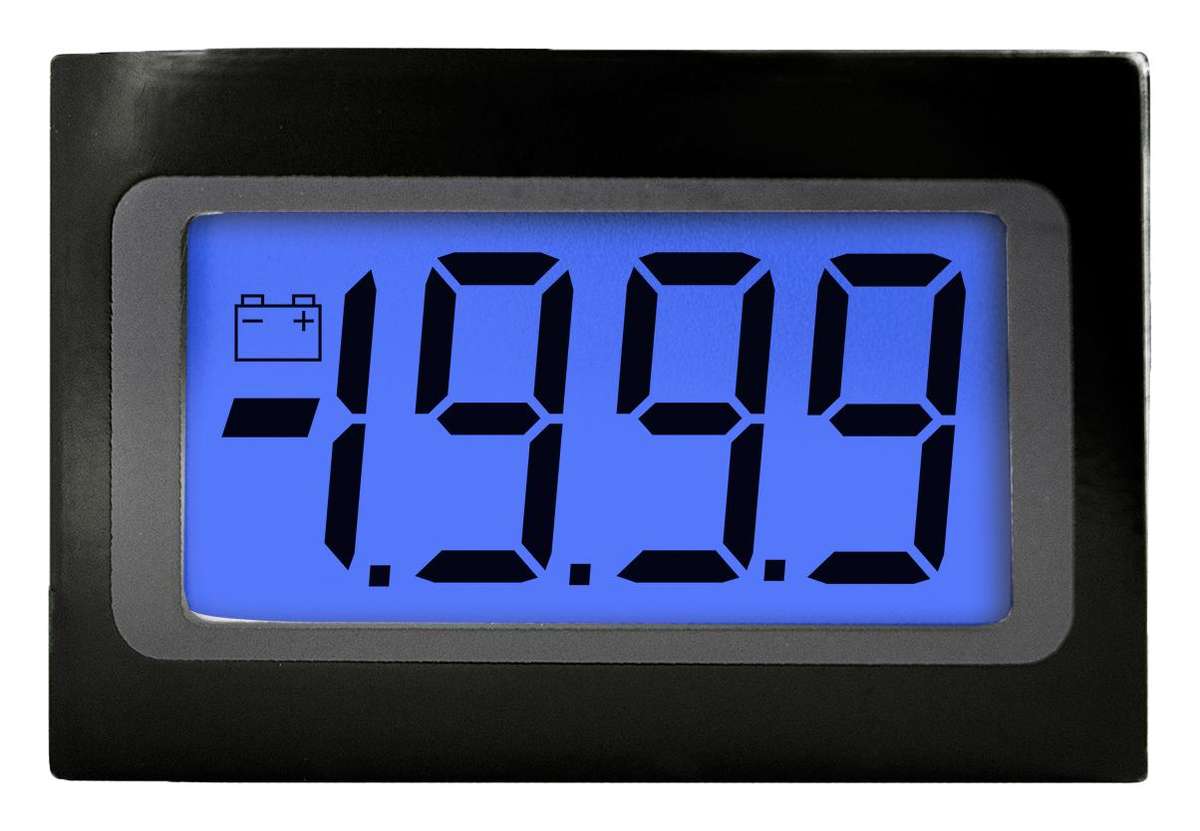

Lascar (SP400-BLUE) Digital Panel Meter, , 3-1/2 Digits, DC Voltage

Digital Panel Meter, , 3-1/2 Digits, DC Voltage, 0mV to 200mVProduct InformationNo. of Digits / Alpha: 3-1/2Meter Function: DC VoltageMeter Range: 0mV to 200mVDigit Height: 9.75mmPanel Cutout Height: 21.3mmPanel Cutout Width: 34.1mmSupply Voltage Min: 3VDCSupply Voltage Max: 15VDCOperating Temperature Min: 0°COperating Temperature Max: 50°CProduct OverviewThe SP400-BLUE is a 3.5-digit LED Voltmeter features a 200mVDC measurement rangewith auto-zero and auto-polarity. Decimal points are user selectable. The SP400-BLUE features a negative rail generator which enables the meter to measure asignal referenced to its own power supply GND. Blue LED backlighting ensuresexcellent readability under low light conditions. The module is easily fittedinto the panel, using the fixing clip provided.Programmable decimal points9.75mm Digit heightBlue LED displayAuto-zero and Auto-polarityLow battery warningSplash-proof protection-0 to 50°C Operating temperature rangeApplicationsPower Management, System Monitoring, Automation & Process Control
