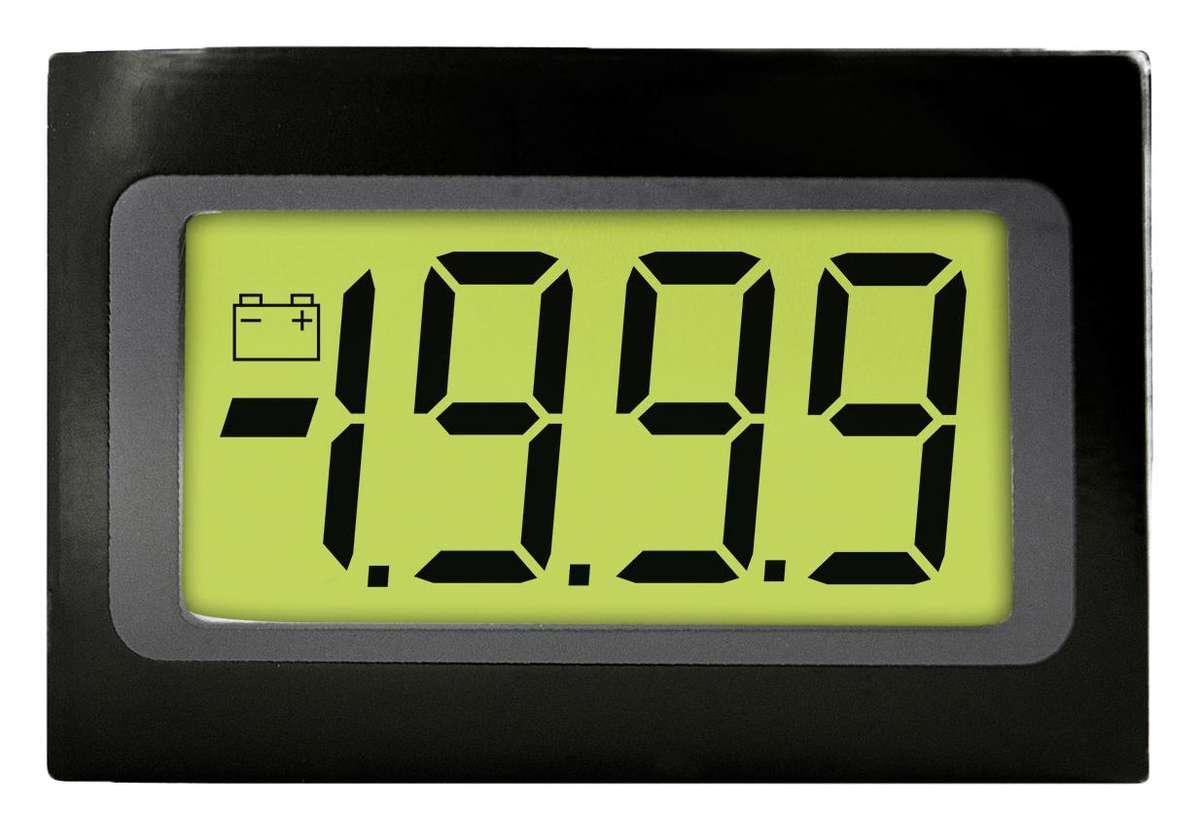

Lascar (SP400) Digital Panel Meter, , 3-1/2 Digits, DC Voltage

Digital Panel Meter, , 3-1/2 Digits, DC Voltage, 0mV to 200mVProduct InformationNo. of Digits / Alpha: 3-1/2Meter Function: DC VoltageMeter Range: 0mV to 200mVDigit Height: 9.75mmPanel Cutout Height: 21.3mmPanel Cutout Width: 34mmSupply Voltage Min: 3VSupply Voltage Max: 15VOperating Temperature Min: 0°COperating Temperature Max: 50°CProduct OverviewThe SP400 is a LCD Voltmeter with LED backlighting and features 200mVDC fullscale reading, auto-zero and auto-polarity. The meter plugs directly into a9-way SIL socket and can be fitted into a panel via the fixing clip. LEDbacklighting ensures excellent readability under low light conditions andhousing ensures splash-proofing using the supplied seal.3-1/2" Digits size0.38" HeightProgrammable decimal pointsLow battery warningIP65 Protection ratingApplicationsSensing & Instrumentation
