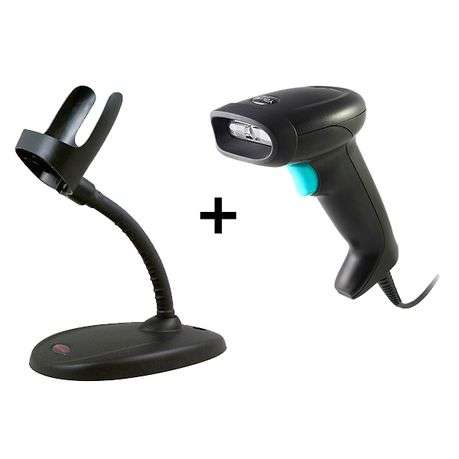

Laser Barcode Scanner

Features:
- Superior Hand-held Scanning Performance: Increases throughput with intuitive handheld scanning performance.
- Comfort, Ergonomic Design: Ensures operator comfort and productivity with a gun-shaped form factor optimized for intensive hand-held scanning.
- Class-Leading Reliability: Increases up time and reduces additional service costs with a reliable design that utilizes no moving parts and full impact resistant bumpers.
- The Latest 1D Imaging Scan Engine: Enables long distance and high speed scanning with a superior linear decoding software.

Youjie HH360 Technical Specifications:
Mechanical/ Electrical:
- Dimensions ( L x W x H ): 98mm×126mm×155mm
- Weight: 140g Input Voltage: 5 ± 0.5VDC Operating Power: 900mW, 180mA(Typical) @5VDC Standby Power: 500mW, 100mA(Typical)@5VDC Interface: USB, RS232, KBW

Environmental:
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -40°C to 60°C
- Humidity: 95%
- Drop: 1- 1.5m at random
- Environmental Sealing: IP40
- Light Levels: 0 to 70, 000LUX

Scanning Performance:
- Scan Pattern: Single line
- Scan Speed: 300 scans/s
- Print Contrast: 20%
- Pitch, Skew: 65° ?75°
- Minimum Width: 3 mil
- Decode Capabilities: Reads all standard 1D and GS1
- DataBarT MSymbologies
