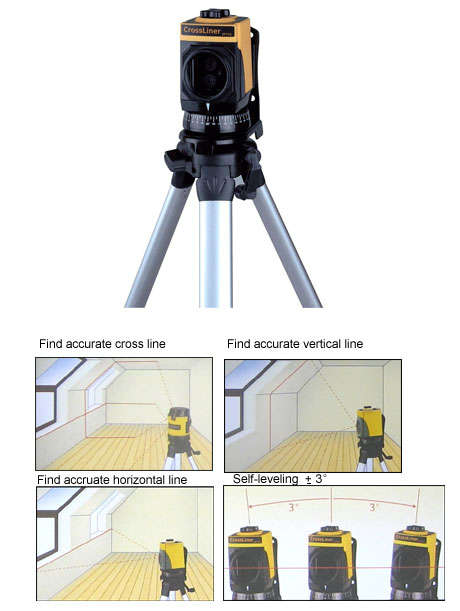

LASER SELF LEVELING CROSS LINER KIT

ENGINEERING WORLD is the importer of this product and other products, and is therefore able to offer great value for money directly to the end user by cutting out the middleman.

�

SELF LEVELING CROSSLINER 7350

The Self Levelling Crossliner Kit is a handy and convenient in house laser marking tool that is equally suitable for DIY or tradesman.

It is supplied in a handy carry case with tripod, batteries and wall bracket.

The Crossliner will accurately project a vertical, horizontal line or both laser lines at the same time.

It is simple and easy to use.

Set up the tripod within 3 degrees of accuracy, fit the base and magnet to tripod and position Crossliner on magnetic base.

Unlock transport safety locking screw, switch on lasers and the unit will level itself out.

A vertical laser line and a horizontal laser line will be projected on to the working surface.

By turning the Crossliner clockwise the laser lines can easily be projected around the room.

The tripod can be levelled on all surfaces including stair cases.

For using the tool at higher positions the use of the wall bracket comes in handy.

�

Some practical applications

�

Built in cupboard and kitchen installations.

Marking out plumbing positions,

Marking out electrical installations,

Hanging pictures and mirrors,

Marking of positions for windows and doors.

Fitting curtain rails and for many other applications.

�

Technical data

Output; Less than 1mW

Wave length; 630-680nm

Power DC 3V 2x 1,5V AA batteries

Precision; +/-1mm/M

Range (interior) Ca.

S10 Metres

Self levelling range; +/- 3 degrees

Suitable operating temperature; -5 to 40 degrees C

�Cross liner comes in own carry box with batteries, tripod and wall bracket included in price.
