VIECAR 2.0 Bluetooth Mini OBD2 Diagnostic Adapter Tool
Brand new
Retail boxed

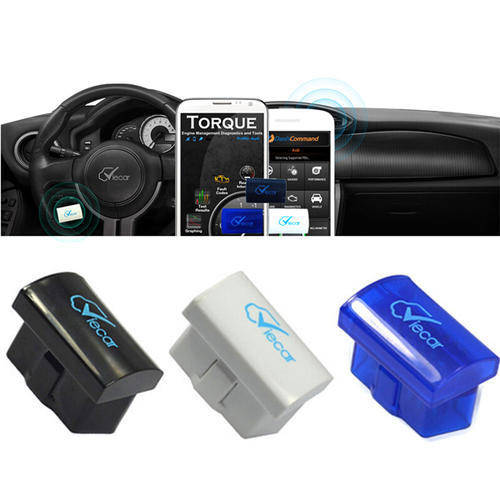

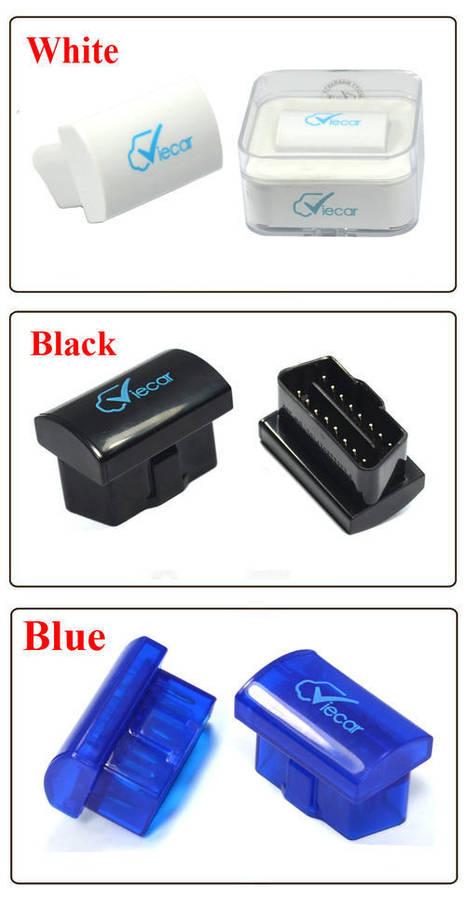

3 colours available: white, black & blue
Supports Android, Symbian & Windows PC/Laptop
R220
Available for Countrywide Postage.
Features:
The newly developed high-quality wireless scan tool, support all OBD2 protocols.
Work with all OBD2 compliant vehicles.
The smallest shape, with the highest level of integration chip.
With bluetooth 2.0, faster data transmission.
Enable to read diagnostic trouble codes.
Small bluetooth interface with a 16 pin socket.
Support different kinds of devices to use this scan tool: for Android system phones, for Symbian system phones, for Windows XP and for WIN7 32bit computers.
Stable performance, low power consumption.
Plug and play, easy installation.
Viecar 2.0 Specifications:
Means of communication: Bluetooth 2.0
Software platform: Android/ Windows/ Symbian System
Power: 9V-16V
Electric current: 25mA
Temperature: -40 C~85 C
Humidity: below 60%
Size: 40mm*25mm*26mm
7 Supported OBD-II protocols:
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible Operation System:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN
Android: Torque_Pro, DashCommand, E OBD2
Symbian: OBDScope
Software supported platforms: Windows XP, Windows 7/8, Android, Symbian.
Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13. Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18.Fuel Pressure
Upcoming Functions:
- Data graphing and logging
- Freeze Frame data
- Continuous and Non-Continuous Oxygen Sensor test results
Package List:

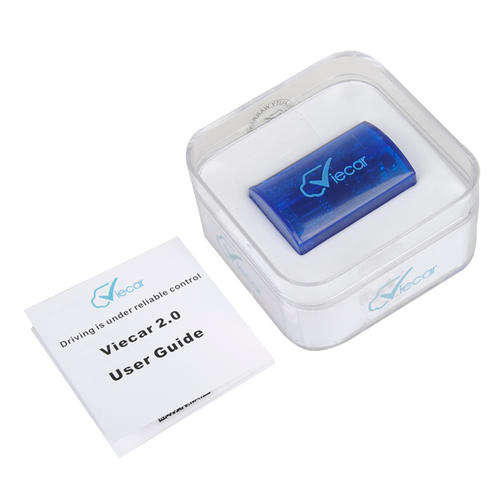

1 x Viecar 2.0 Adapter
1 x User Guide

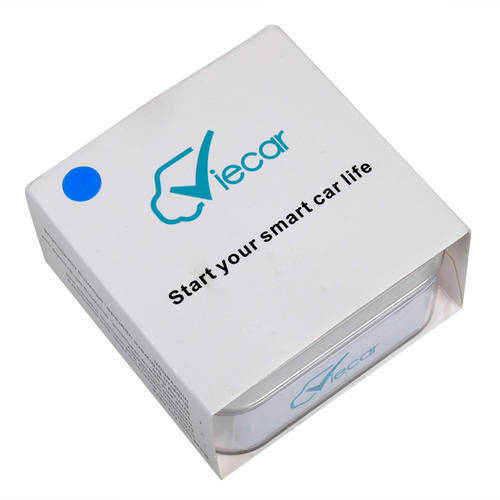

1 x Plastic box casing
