Launch Creader CR-HD Heavy Duty Truck Scanner

CR-HD is the first heavy truck code reader which Launch latest developed. It has integrated the basic diagnostic functions of two heavy duty truck standard protocols (J1939 and J1708), applied 2.8" color LCD with beautiful interface, and equipped with 6PIN and 9PIN additional diagnostic connectors, which can provide highest quality, most efficient, and most professional diagnostic service for heavy duty trucks. From now on, the heavy duty trucks also have their own small-scale diagnostic tool.

Launch Creader CR-HD heavy duty code scanner Functions:

1. Read fault code and Clear fault code
2. Read data streams
3. Launch Creader CR-HD heavy duty support 6PIN, 9PIN, and 16PIN diagnostic connectors
4. Launch Creader CR-HD heavy duty support multiple ECUs
5. Launch Creader CR-HD heavy duty support J1939, and J1708 vehicle communication protocols
6. Launch Creader CR-HD heavy duty with multi-languages function (English, and French, Spanish etc.)
7. With online software upgrade function (USB2.0)

Launch Creader CR-HD heavy duty parameters:

-Screen: 2.8", 262K true color, 320*240 LCD
-Input voltage range: 8~36V
-Operating current: typically -Typical power consumption: -Wire connection: 6PIN, 9PIN, 16PIN diagnostic connector
-Environmental temperature: 0°C~50°C
-Storage temperature and humidity: -20°C~70°C@ RH 60%
-External dimension: L*W*H=121*82*26mm
-Single unit:

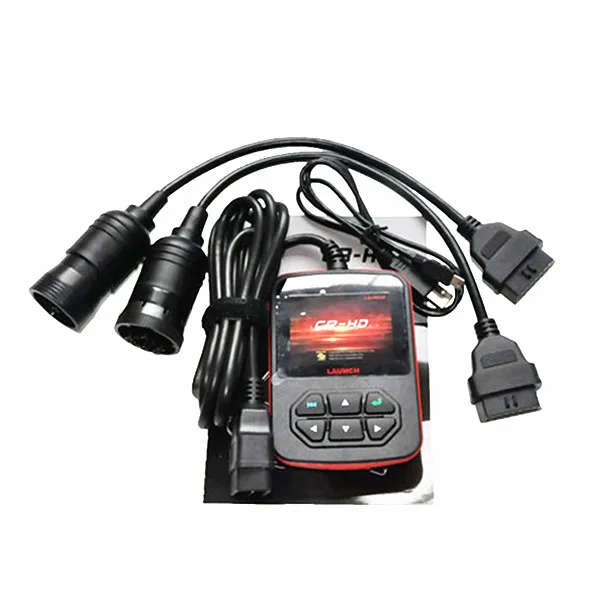

Launch Creader CR-HD heavy duty package contents:

1 x Launch Creader CR-HD heavy duty main unit
1 x OBD-6S Cable
1 x OBD-9S Cable
1 x USB Cable
1 x User's manual
