Launch CRP429C Comprehensive Diagnostic Tool
Launch CRP429C Pro Auto Diagnostic Tool is an revolutionary smart solution passenger car diagnostic tool It inherits features from Launch’s advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
The Launch CRP 429C supports all 10 models of OBDII test. It also supports the system diagnosis of ABS, SRS (Airbags), ENG and AT system, and supports 11 reset functions.
Launch CRP429C
Launch CRP429C Features and Functions
1. Supports all 10 models of OBD2 test
2. Support 4 major systems of Engine , Transmission , ABS and Airbag system
3. 11 Reset Functions: including Oil Lamp Reset, Brake Pad Reset, TPMS Reset, Battery Matching, Injector Programming, Throttle Adaptation, DPF Reset, Gear Learning, Steering Angle Reset, ABS Brake Bleeding, and Anti-Theft Matching.
4. Basic diagnostic functions: Version Information, Read DTCs ,Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged).
5. Support Multi-languages
6. Update: One-Click update online via WiFi , One years free update
7. Print: Supports diagnostic report print outs via Wi-Fi connection to your PC
8. Multiple car models (covering over 40 prevailing models from Asia, America and Europe).
9. Touch screen and button operation model, meets majority of users needs
Auto-Detect Diagnosis: Once the Launch CRP429C and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (setup required).
Diagnostic Feedback: Use this option to submit the vehicle issue to us analysis and troubleshooting
DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.
Displays battery real-time voltage once properly connected to the vehicle
Features screenshot capture. Screen shots and reports sharing are supported.
Touch & Keypad input are supported.
Quick Dial buttons enables you to easily access the corresponding functions.
Launch CRP429C Supported Brands:
ACURA, Alfa Romeo, Audi, BMW, BUGATTI, Chrysler, Citroen, DACIA, Daewoo, Eurod, Fiat, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, SAAB, SAMSUNG, Seat, Skoda, Smart,Sprinter, Subaru, Suzuki， Tlisuzu, SAAB, Toyota, Vauxhall, Volvo, VW, GM, Gmsa, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Kia, Lancia， Landrover, Lexus, Lincoln, Mazda, Mercedes, Mini
Technical Parameters:
Operating System: Android 7.0
Processor: Cortex-A5 processor (1.5 GHz)
RAM: 1GB
ROM: 8GB
Display: 5 inch IPS touch screen
Connectivity: Mini USB 2.0, Wi-Fi
Power and Battery: 4000 mAh lithium-polymer battery
Built-in Lithium Battery: 4000mAh
Ambient: -20℃ ~ 70℃ (storage); -10℃ ~ 50℃ (working)
Product Size: 248.7×93.5×36(mm)
Product Net Weight: 530g

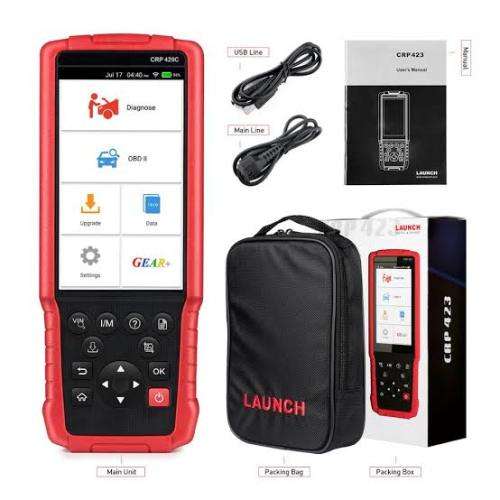

Package List:
1 Main Unit
1 OBDII Diagnostic Cable
1 DC 5V Charging Cable
1 User’s Manual
1 Padded Carry Bag
