Launch X431 Diagnostic Scanner Launch X-431 X 431
with 3years Update


is a specially designed diagnostic tool for automotive technicians.
2. Compact main unitpowerful diagnostic functions, fast and convenient update
universal connectors, make it the first choice for technicians.
3. X431 diagnostic tool is the standard equipment for technicians.
4. The only one tool which can test two vehicles at the same time.
5. This is a brand new item and comes with one year warranty and free update via email or CD.
6. The X431 diagnostic tool comes from one of the most popular manufacturers of diagnostic equipment in the world - LAUNCH.
7. X431 diagnostic tool is small and easy to use with bluetooth connections via a hub plugged into the vehicle OBD making it extremely mobile.
8. Two vehicles can be scanned at the same time via the BLUETOOTH connectors .
9. At a lower cost than launch X431 Master, everyone in your workshop can have
one - no waiting around for people to finish with the only scanner in the workshop.
That is -- increase your efficiency!
10. With a 1GB SD memory card it can store extremely large amounts of data.

X431 diagnostic tool Product character
Standard
Compact main unit, Standard equipment for technicians
Unique
The only diagnostic tool which can work on two vehicles at the same time
Technology
Bluetooth, wireless communication,100 m bluetooth communication,Cable
communication support
Connector
Universal 16PIN connector
Performance
Fully inherited diagnostic functions from X-431. Capable of nearly all domestic
vehicle makes and Asian, European, American vehicle makes
Greatly improved program running speed
4.3 inch high luminance, high resolution color touch screen
Software
More convenient software update
Battary
1530mAh Rechargeable battary
Printer
Standard USB printer connector, external printer support
Language
English,French ,German ,Italian ,Russian ,Spanish,Dutch,Arabic,Polish,Japanese
and Portuguese etc.
Service
Full after sales service system, life time 1 to 1 service


what does the X431 diagnostic tool do
1.Reads / erases fault codes
2. Scans engine
3. Turns off service lights
4. Scans auto transmission
5.Turns off SRS airbag lights
6.Turns off ABS lights
7.Scans body systems including air con & comfort/ convenience systems
8.Live data stream
9.Software updates via email/CD download

Diagun Parameter
Operating System
WIN CE 5.0
CPU
400 MHz ARM9
Memory Card
1G TF
Main Unit
Universal Serial Bus/USB
Main Unit Power
DC 5V
Printer Interface
USB

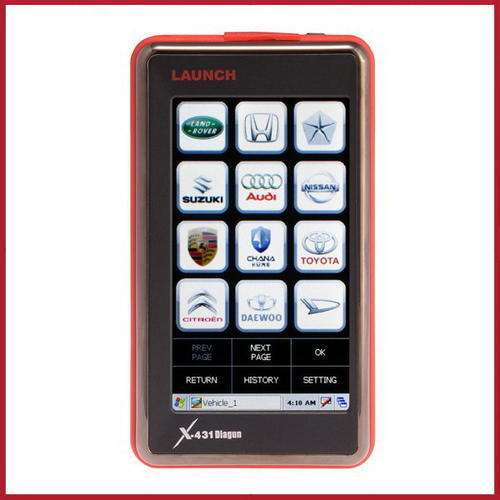

Display Screen
480X272, 4.3-inch LCD with touch
Rechargeable Battery
1530 mAh
Bluetooth
Theoretically 100m, actually 15-20m
Upgrading Interface
USB

Muli-Language Option:
1.English
2.French
3.German
4.Italian
5.Russian
6.Spanish
7.Portuguese etc.

Noted: We can make the language you want, all the diagnosis process and diagnosis results
are your language you want, please tell us before you pay for it!

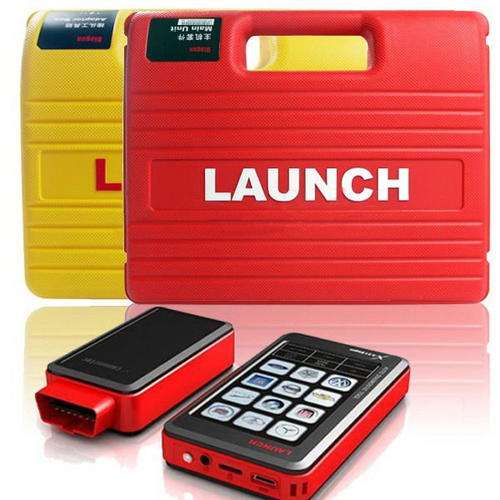

X431 diagnostic tool Packing detailed information :

(1)Adapters and cables in the Yellow box:
*for TOYOTA-17,
*for HONDA-3
*for TOYOTA -22,
*for KIA-20,
*for Mitsubishi/Hyundai-12+16,
*for Nissan-14+16,
*for Fiat-3,
*for Uninversal-3,
*for Hainan Mazda-17+2,
*for Geely-2
*Diagnostic cable 16pin+power cable
*Lighter cable
*for SSANG YONG-14
*for AUDI-4
*for FORD-6+1
*for GMVAS-12
*for AEWOO-12
*for SUBARU-9
*for CHARADE-4
*for SUZUKI-3
*for JMC-16
*for MAZDA-17
*for BENZ-14
*for BENZ-38

(2) Red box:
*Diagun machine PDA,
*Diagun bluetooth connector 16pin
*Diagnostic cable
*Usb cable
*Printer cable
*Extension OBD16 cable
*Card reader
*Charger adapter
*User manual
*Packling list sheet
