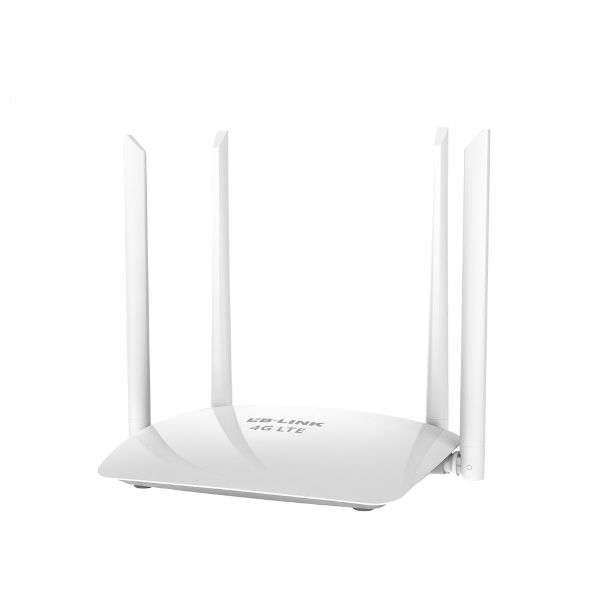

LB-LINK 4G LTE Router With Sim Card Plug and Play

Compatible with the majority of mobile operators and supports

4g/3g lte:-fdd b1/b3/b5/b8 lte-tdd: b34/b38/b39/b40/b41

wcdma:b1/b5/b8 lte downlink up to 300mbps
WLAN function, easy to expand a wireless network.

Prevent loiter network, multi wireless safety ensuring.

Ip broadband band control, ensure the speed.

Support web page management, easy to install.

Support network traffic statistics.

Support 32 wifi devices online simultaneously.

Support lb-link app remote management.

Specifications :

CPU - MT7628DA/580MHz
DRAM/FLASH - 64MB DDR2/8M SPI
Antenna

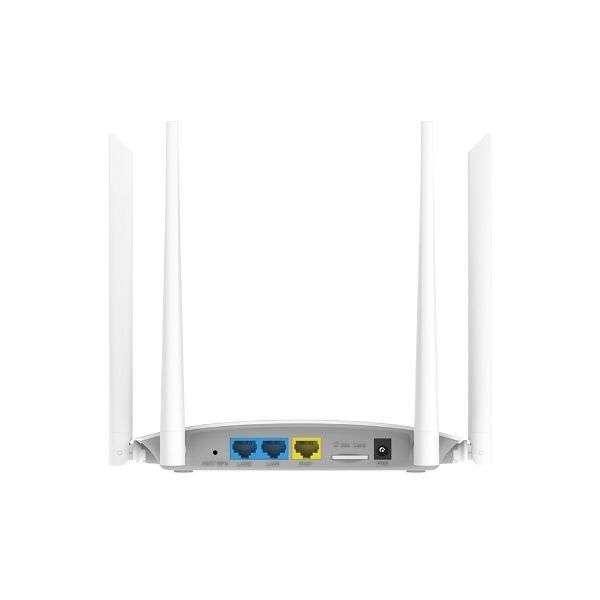

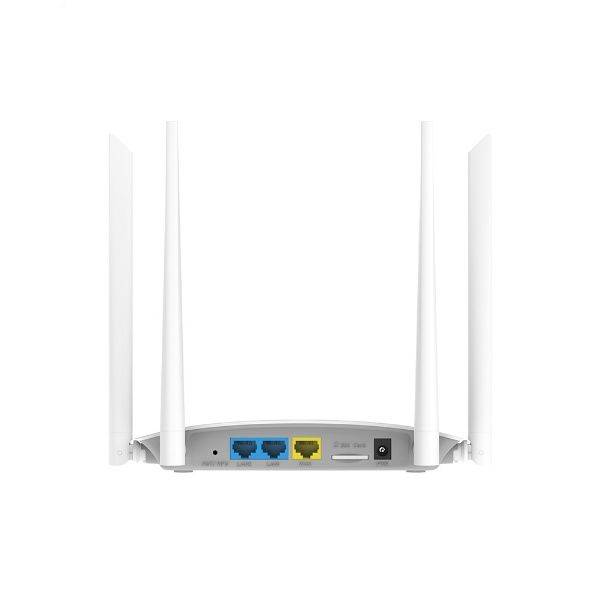

2x RJ45 10M/100M LAN Ethernet interfaces, 1 x RJ45 10M/100M WAN Ethernet interfaces
1 x Reset, 1 x Power jack 12V 1A, 1 x SIM (Standard)
2.4G. 802.11N. 2T2R 4G. 2T2R

Gain - 2.4G 5dBi 4G1-4Dbi
Range - 2.4-2.4835GHZ
Transmit Power - 11b : 1/2/5.5/11Mbps, 11g : 6/9/12/18/24/36/48/54Mbps, 11n : 300Mbps
MAX
Data Encryption - WPA-PSK, WPA2-PSK, WPA/WPA2-PSK
4G Modulation type /GNSS - LTE CAT4 (compatible with LCC/PCIE/M2 package)

Software Speci?cations :

Access mode
Router mode, 4G mode

Basic setting
WAN setting, LAN setting, Mac clone, DNS, 2.4GWIFI setting
2.4G guest network setting, 2.4G channel setting
2.4G signal strength setting, 2.4G channel optimization

Advance setting
Black list setting, Bonding list, Children protection list
Web blacklist, Modify administrator password
QoS

What's in the box
1x BL-CPE450H Wireless Router
