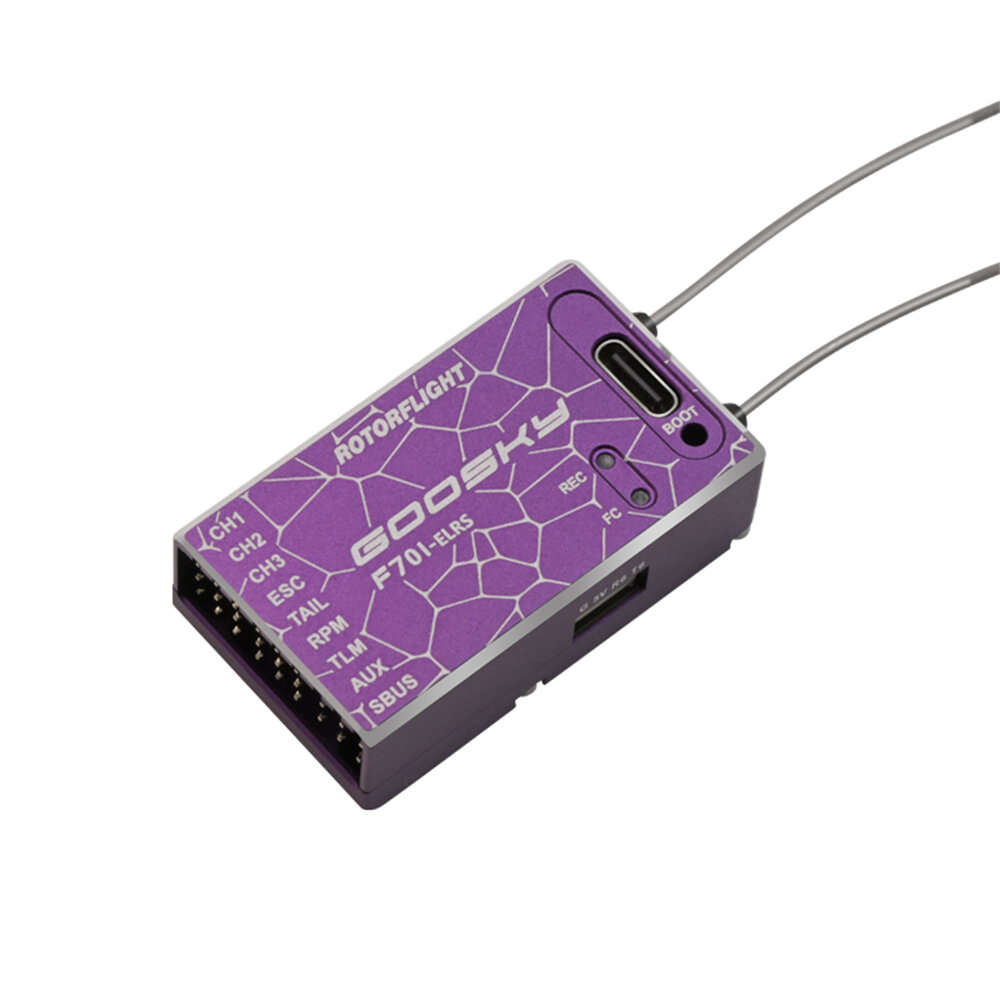

LBT Version - GOOSKY F701-ELRS ROTORFLIGHTR RC Helicopter Spare Parts Flight Controller
Check my rate
View locations
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Specifications:
Firmware: Rotorflight
Main MCU: STM32F722RET6
Gyroscope / Inertial Measurement Unit (IMU): ICM42688P
Barometer: SPL06
Blackbox Flash Memory: 256 MB
Servo Outputs: 4 total (CH1, CH2, CH3, Tail)
Receiver Protocol Support: SBUS, S.Port, MSP, EDGE TX, ELRS
Supported ESC Protocols: PWM, Oneshot, Multishot, DShot300, DShot600
Swashplate / Tail Motor Switching: Supported
RPM Sensor: Supported (via ESC telemetry)
Built-in Receiver: ELRS (UART1)
UART Interfaces: 6 total
Supported Receiver Protocols: CRSF, ELRS, SBUS, FBUS, PPM, MSP, DSMX
ESC Input Voltage Range: 5—16V
Serial Port Power Output: 5V / 1.5A
Features:
1>Highperformance STM32F722 MCU with ICM42688P IMU delivers ultrafast response and precise attitude control for 3D stunt RC helicopters
2>Builtin ELRS receiver on UART1, no extra wiring required; plugandplay setup keeps the model clean and easy to install for hobby pilots
3>Up to six UART ports reserved for GPS, telemetry and expansion devices, giving advanced fliers flexible upgrade and tuning options
4>Supports multiple ESC protocols including PWM, Oneshot, Multishot, Dshot300 and Dshot600, plus RPM feedback for accurate governor performance
5>Wide 5—16 V input and 5 V/1.5 A regulated output power external accessories, with compact aluminum housing that fits neatly into most rotor models

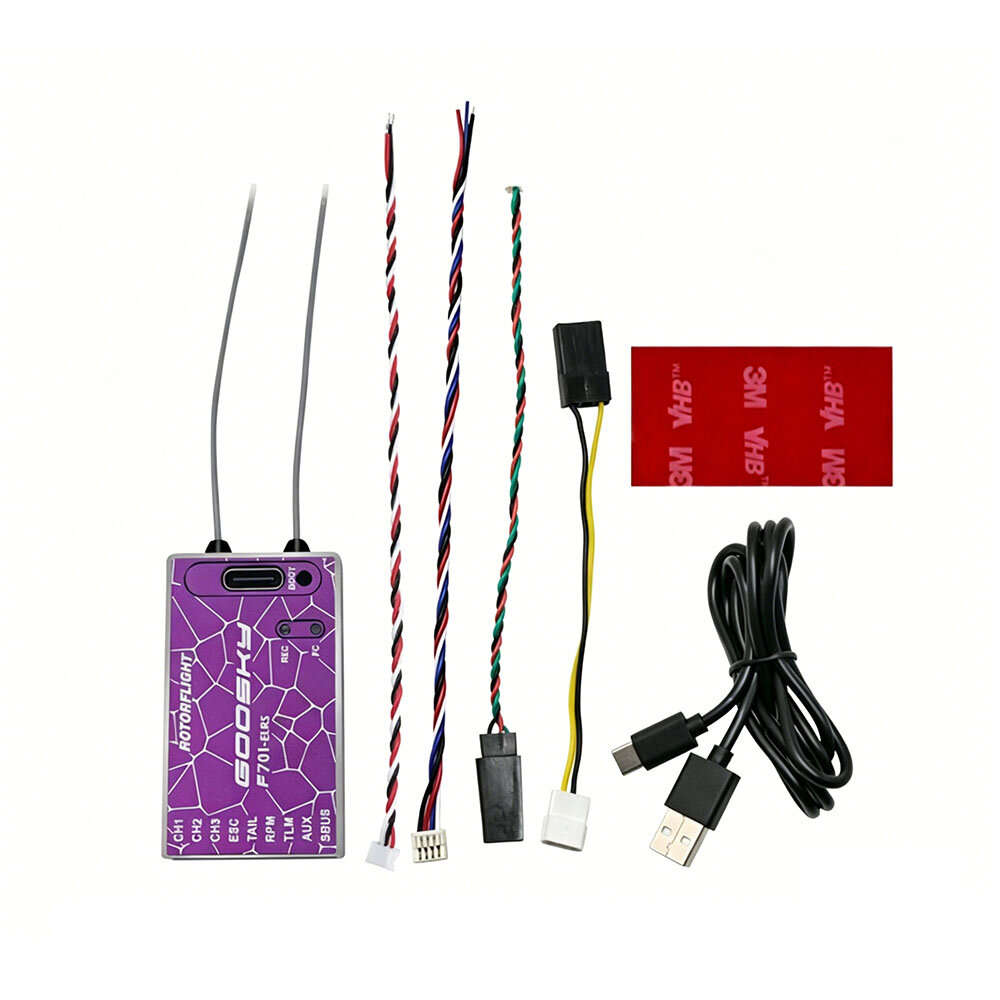

Package Included:
1 x GOOSKY F701-ELRS Flight Controller
