LC100-A LC Meter 1uH-100H Inductance 1pF-100mF Capacitance Table - 0.14kg

New 10 were available
R322.27
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Customer ratings:
Product code
1056801
Bob Shop ID
384446331

LC100-A LC Meter 1uH-100H Inductance 1pF-100mF Capacitance Table

More details and instruction: Click to open

Introduction:

LC-100A Meter based on the LC resonant principle, add in high speed microcontroller’s precision computation. The meter has wide measurement range and high precision, it’s measuring range below 1uH and 1pF. Small size, light weight and easy to carry.

Feature:

Supply voltage: 5V
Interface to power supply: Mini USB or Φ5.5DC Socket
Display: 1602 LCD
Effective display digits: 4 digits
Measurement method of capacitance, Inductance and Large Inductance: LC Resonance
Measurement method of large capacitance: Charge-discharge

Test Frequency:

L Range, C Range: 500kHz
Hi.L Range: 500Hz~50KHz
Resolution (Hi.C Range): 0.01uF
Resolution (Hi.L Range): 0.001mH
Resolution (L Range): 0.001uH
Resolution (C Range): 0.01pF

Package includes:

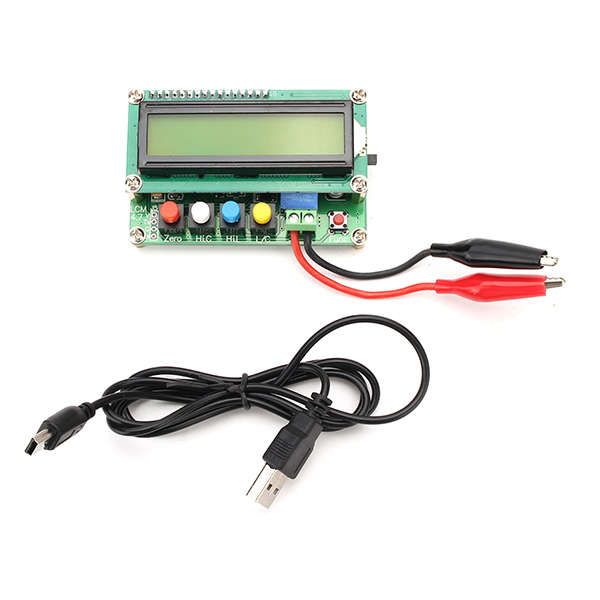

1 x LC-100A Meter

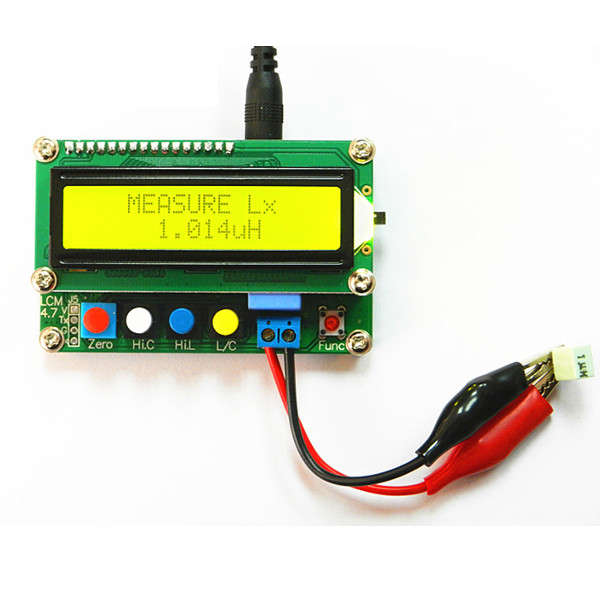

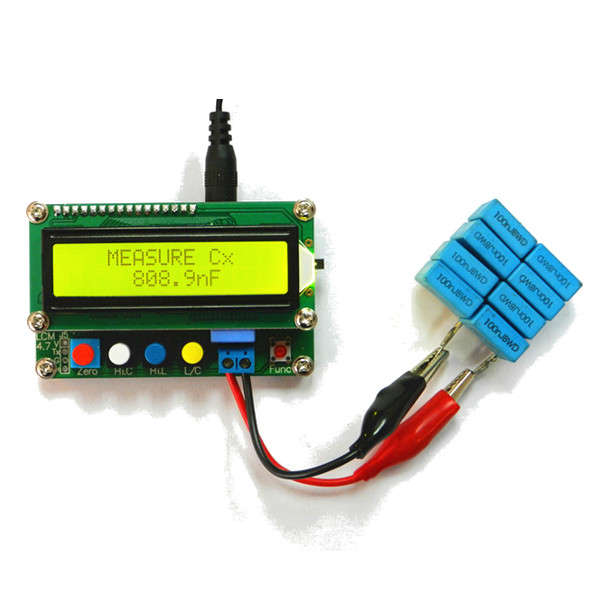

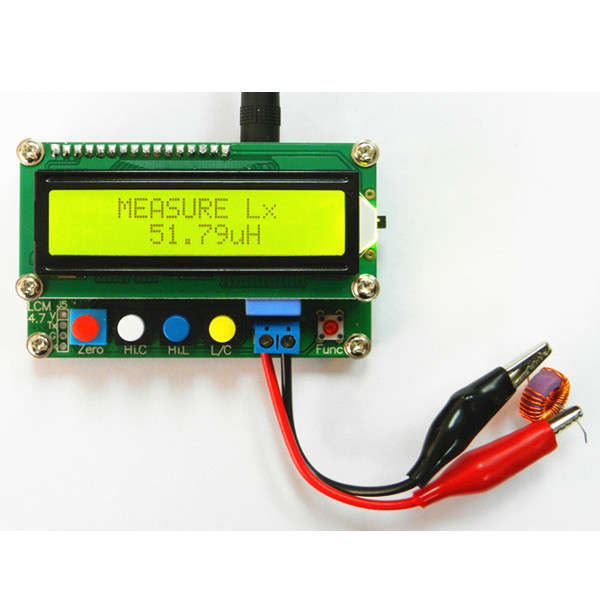

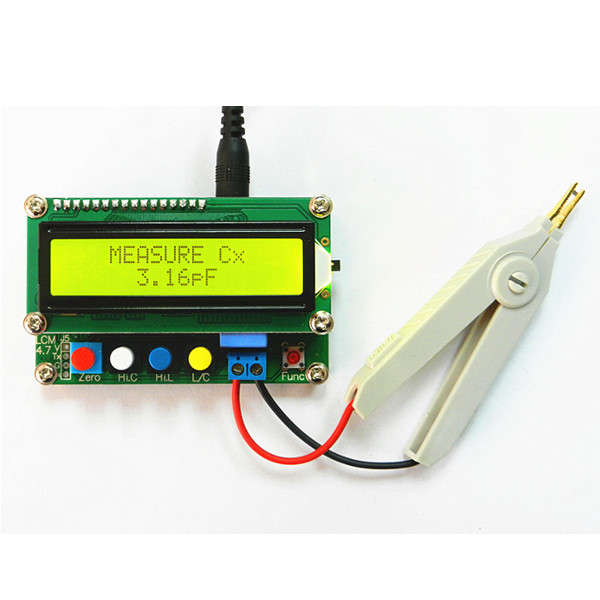

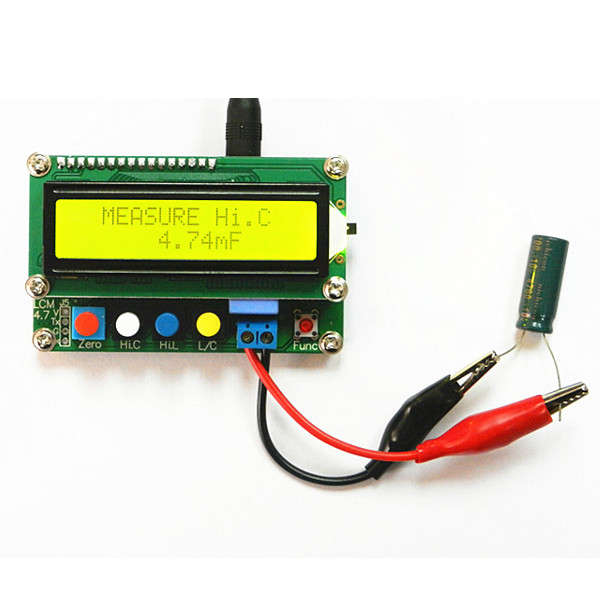

Test diagram for reference only, the package does not contain the test tools:
