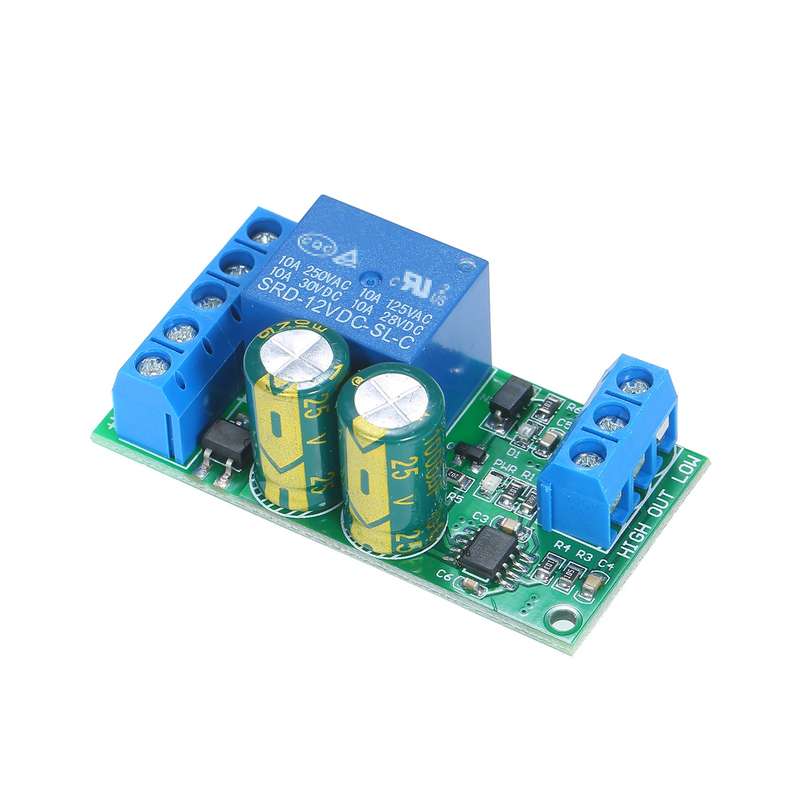

LC25A01 Water Level Automatic Controller Module Aquarium Fish Tank Liquid Level Controller Sen

The water level controller module is convenient for the drainage control of your home.

Features:
Making the aquarium/water tower automatically open the pump when lack of water, automatically stop the pump(solenoid valve) when full of water.
Working Principle: When the water level is lower than the Low level, the water pump starts to supply water to the water tower; when the water level is higher than the High level, the water pump stops supplying water.
Maximum load of 10A / 250V AC, 10A / 125V AC, 10A / 30V DC, 10A / 28V DC, 10A / 12V DC.
With compact size, high switching capacity, simple wiring, high stability and strong anti-interference function.
Can be applied for domestic water tower, aquarium water changer, conducting liquid autocontrol system, auto feeder&waterer, solenoid valve water pump, drainage control, etc.ￂﾠ

Note:
*This product does not require purchasing a separate probe which can be replaced with a household wire.
*For safety, use an AC/DC power supply with good isolation.

Specifications:
Model: LC25A01
Material: FR4

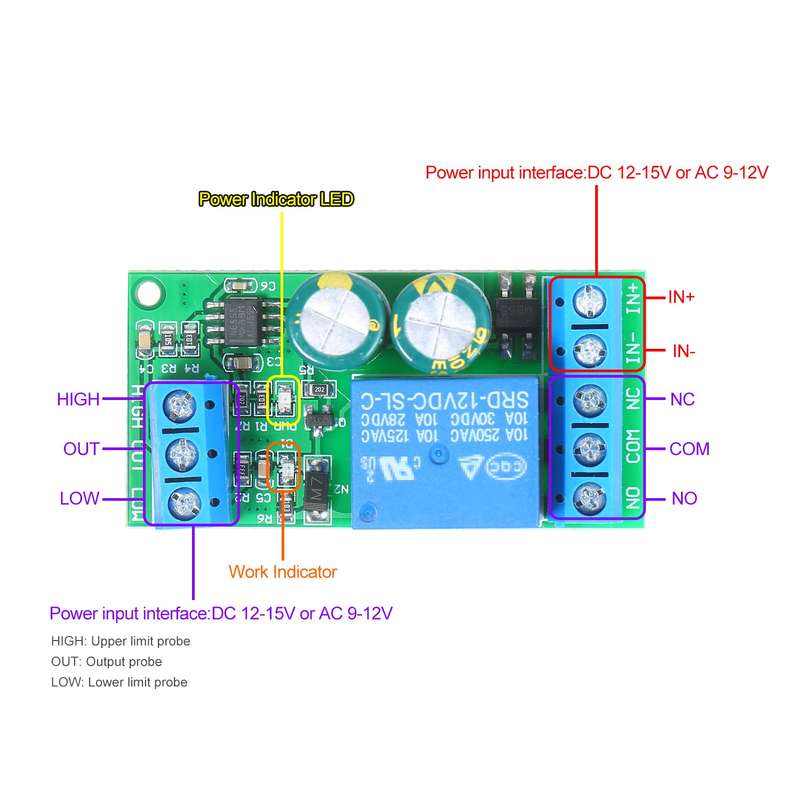

Working voltage: DC 12-15V(AC 9-12V)
Standby current 10MA
Working current 40MA
Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
Item Size: 5.4*2.7*2cm / 2.12*1.06*0.78in
Package Size: 6*3*3cm / 2.36*1.18*1.18in
Item Weight: 24g / 0.84oz
Package Weight: 26g / 0.91oz

Packing List:
1 * Controller Module
