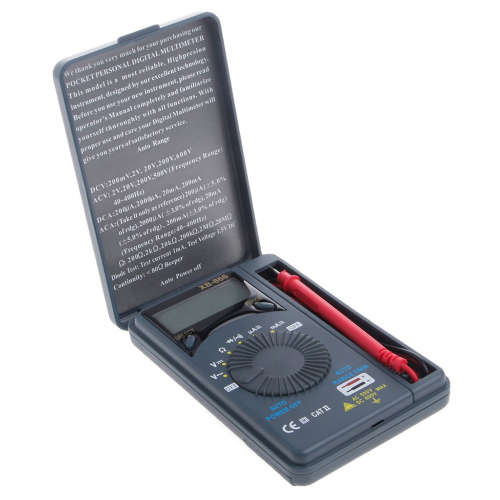

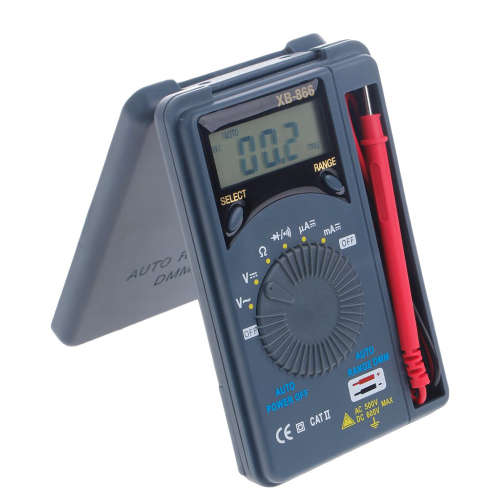

LCD Auto Range Pocket Digital Multimeter Voltmeter Tester Tool
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Product Description
1. It includes 7 function with 25 range.
2. Overrange protection for all ranges.
3. Streamline design and very portable.
4. Overrange Indication: Display" OL" or "-OL"
5. High quality with top-class material for durable and practical use.
6. Comes with a handy carrying pouch - Perfect for use while on the go.
7. Max Voltage Between Terminals And Earth Ground; 600V DC or 500V AC.
8. Sampling Time: approx.0.4second Until showing of function and electrical capacity.
9. Auto-ranging multimeter for AC/DC voltage, AC/DC current, resistance,continuity test, diode test.
10. Accuacy is specified for a period of year after calibration and at 18to 28 with relative humidity to 75%.
Specification:
1. Material: ABS
2. Continuity: <80 Beeper

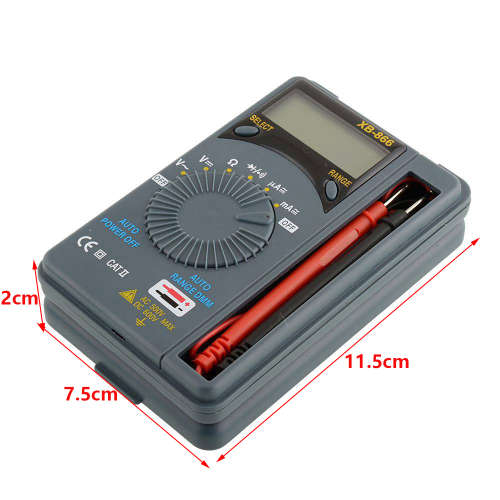

3. Product Size: 11.5x7.5x2
4. DC Voltage: 200mV, 2V, 20V, 200V, 600V
5. AC Voltage: 2V, 20V, 200V, 500V (Frequency Range: 40~400Hz)
6. DC Current: 200uA, 2000uA, 20mA, 200mA
7. AC Current: (Take it only as reference) 200uA(±5% of rdg), 2000uA (±3% of rdg),
20mA (±5% of rdg), 200mA (±3% of rdg) (Frequency Range: 40~400Hz)
8. Resistance: 200, 2K, 20K, 200K, 2M, 20M
9. Diode Test: test current 1mA, test voltage 1.5V DC

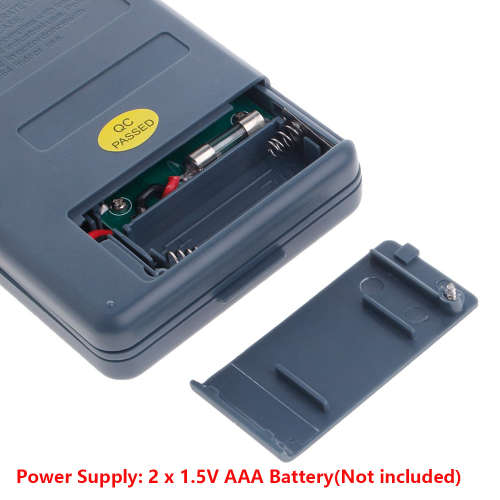

10. Power Supply: 2 x 1.5V AAA Battery(Not included)
Package include:

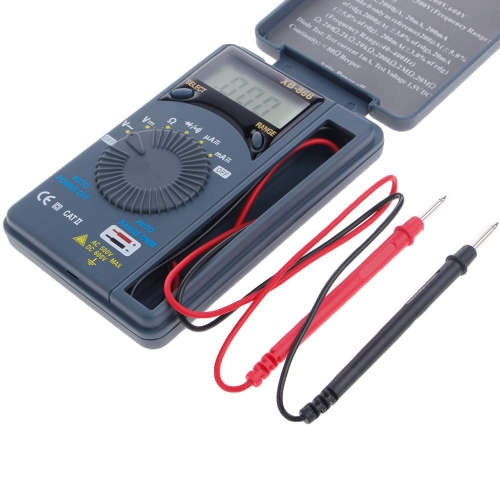

1 x Mini Digital Multimeter with 2 test leads
1 x User Manual
