Battery Capacity Tester with LCD Indicator suitable for use with 12V, 24V, and 30V batteries, type lead acid, Pb-Acid and Lithium LiPo.
Specification:
Input voltage: 8-30V
Input current: 5-12mA
FBattery Type: lead-acid/Pb-Acid battery and Lithium battery
LI 1S/2S /3S / 4S /5S /6S /7S Lead-acid 12V/24V
User Instruction:
Key operation: Button on the rear of the display is used to select parameters....
Batteries model selection:
1. Power off the indicator
2. Hold key
3. Power the indicator on
4. Release button, then the screen will display for symbols in English: XP or XC, where X is the number of cells to be tested.
P1: Pb12V lead-acid battery
P2: Pb24V lead-acid battery
P3: not used
P4: not used
C2: 2 pcs lithium batteries
C3: 3 pcs lithium batteries
C4: 4 pcs lithium batteries
C5: 5 pcs lithium batteries
C6: 6 pcs lithium batteries
C7: 7 pcs lithium batteries
C8: not used
C15: not used

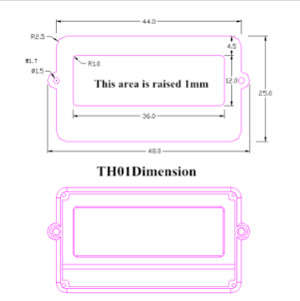

Dimensions: 49 x 25mm
