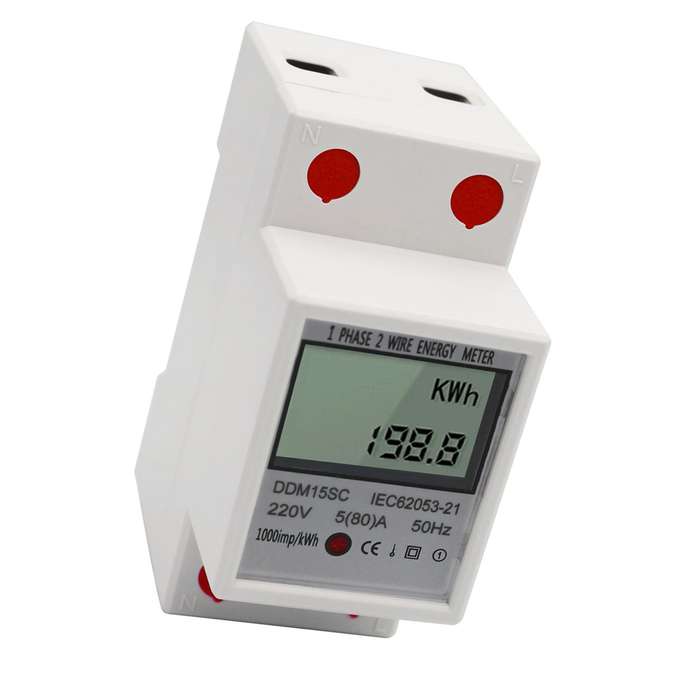

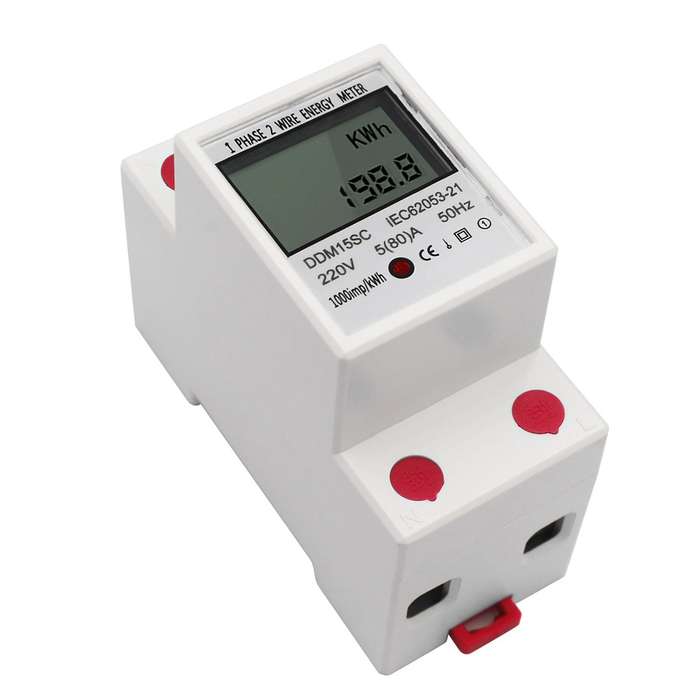

LCD Digital Display Single Phase DIN-Rail Energy Meter 5-80A 220V 50Hz Electronic KWh Meter Po

Features:
Energy meter with LCD digital display, takes turns showing electricity consumption, voltage, current and power.
AC220V/50Hz voltage, 5A-80A current, 17000W power, 1000imp/kwh pulse output and with pulse output indicator.

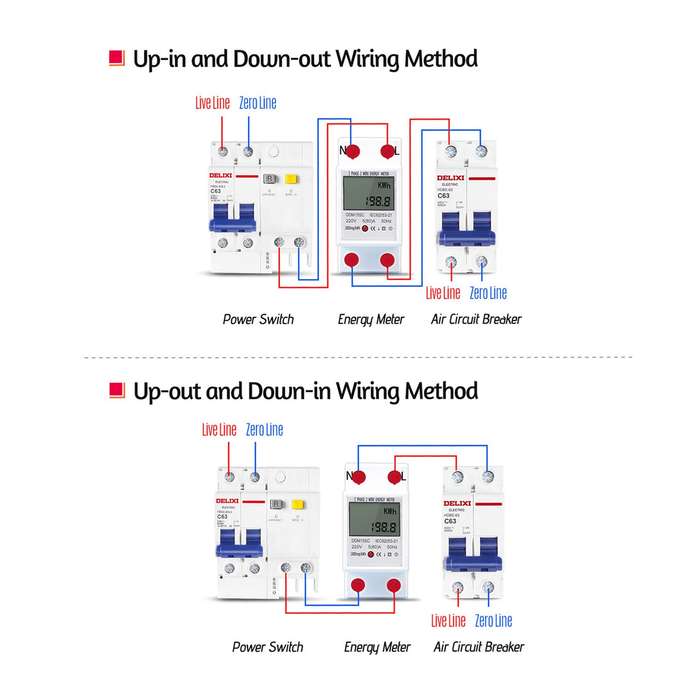

35mm DIN Rail mounting; 17.5mm pole width; supports Up-out and Down-in/ Up-in and Down-out wiring method, easy to install.
Adopt microelectronics and digital processing technology to measure electric energy, accurate and reliable.
Large scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance.

Specifications:
Material: Plastic
Model: DDM15SC
Accuracy: First Grade
Reference Voltage: 220V/50Hz
Reference Current: 5-80A
Display: LCD Digital Display
Installation: 35mm DIN Rail
Pole Width: 17.5mm
Wiring Method: Up-out and Down-in/ Up-in and Down-out
Power: 17000W
Environment Temperature: -20￢ﾄﾃ~+50￢ﾄﾃ
Item Size: approx. 7.8 * 3.7 * 6.6cm/ 3.1 * 1.5 * 2.6in
Item Weight: 200g/ 7.1oz
Package Size: 8 * 7 * 4cm/ 3.1 * 2.8 * 1.6in
Package Weight: 300g/ 10.6oz

Note:
This energy meter doesn't has the reset function.

Package List:
1 * Energy Meter

ￂﾠ
