>>>Manual: click here to open<<<

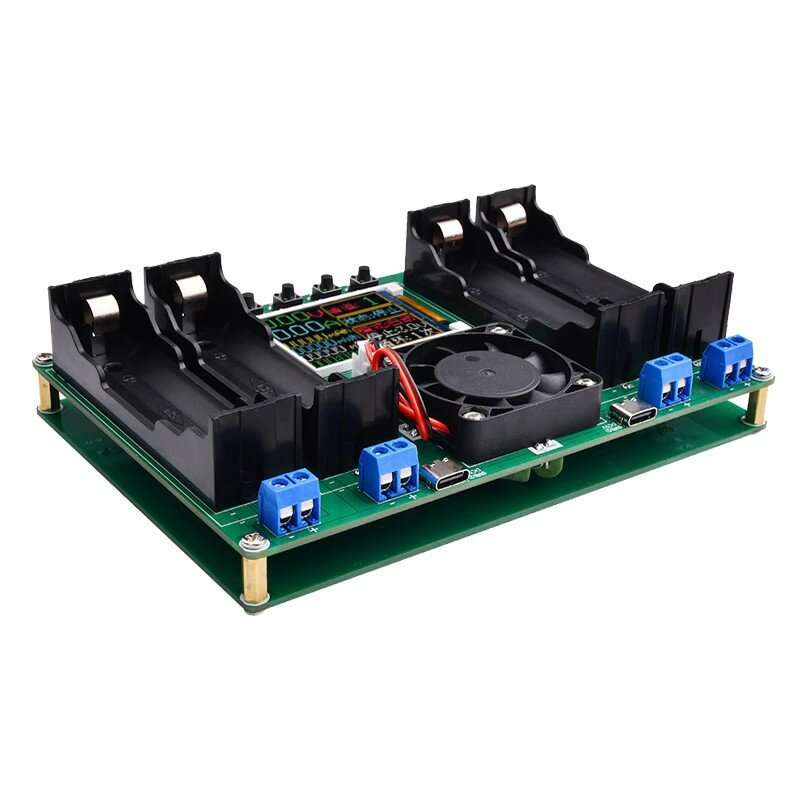

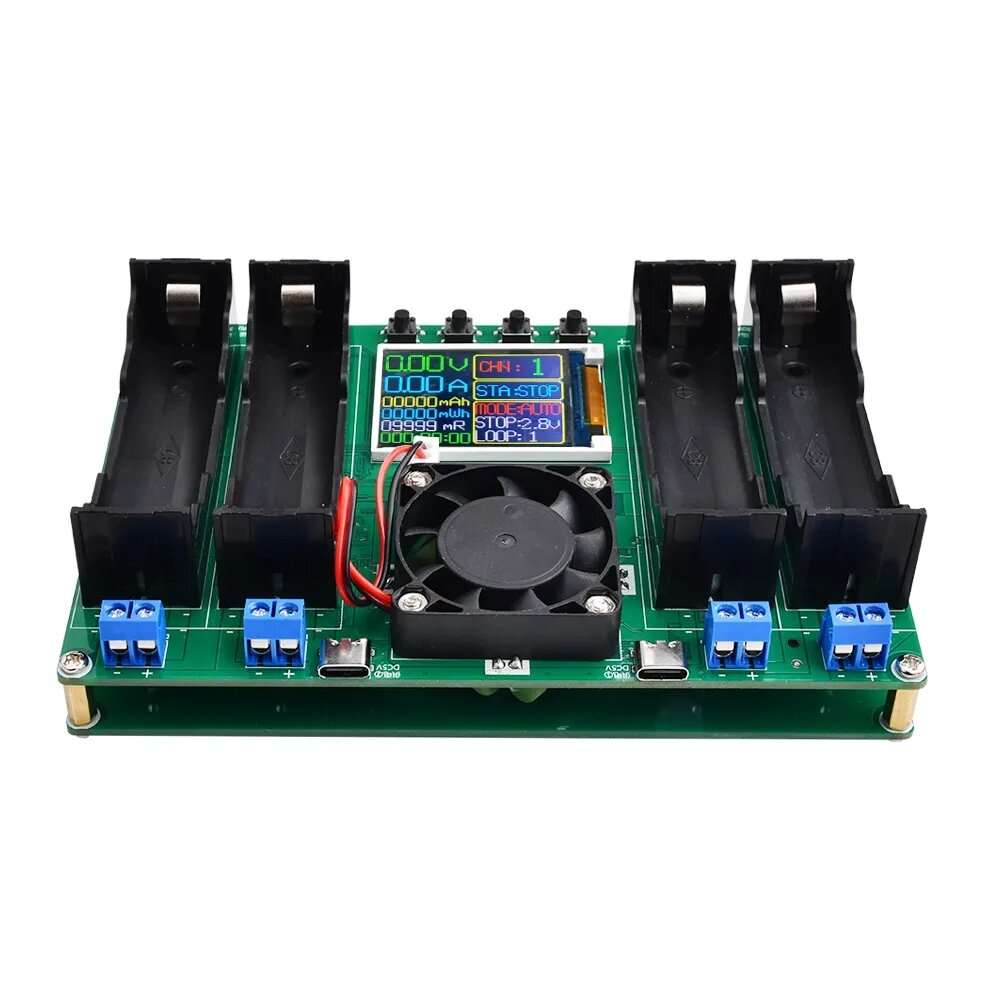

Specifications:Working voltage: DC5VApplicable battery: suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2VPower supply interface: two Type-C power supply interfacesSystem language: English Test quantity: 4-way charging and discharging measurementInternal resistance measurement: support, use DC two-wire method to test internal resistanceCharging function: support, automatic cut-off charging when fully charged (lithium iron phosphate battery charging is not supported)Discharge function: support, automatically stop when conditions are met, and the discharge current is not adjustableAutomatic charging and discharging: supported. The battery is fully charged at the end of automatic modeCyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode)Status prompt: SupportedCooling mode: fan active coolingOverheat protection: supportStop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gearsDischarge current: the maximum current is about 1A, which is not adjustable, and does not support stand-alone modification
Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2VPower-off saving: only save the set parameters, not the measurement dataWeight200g
Package Included:
1 x Battery Capacity Tester
