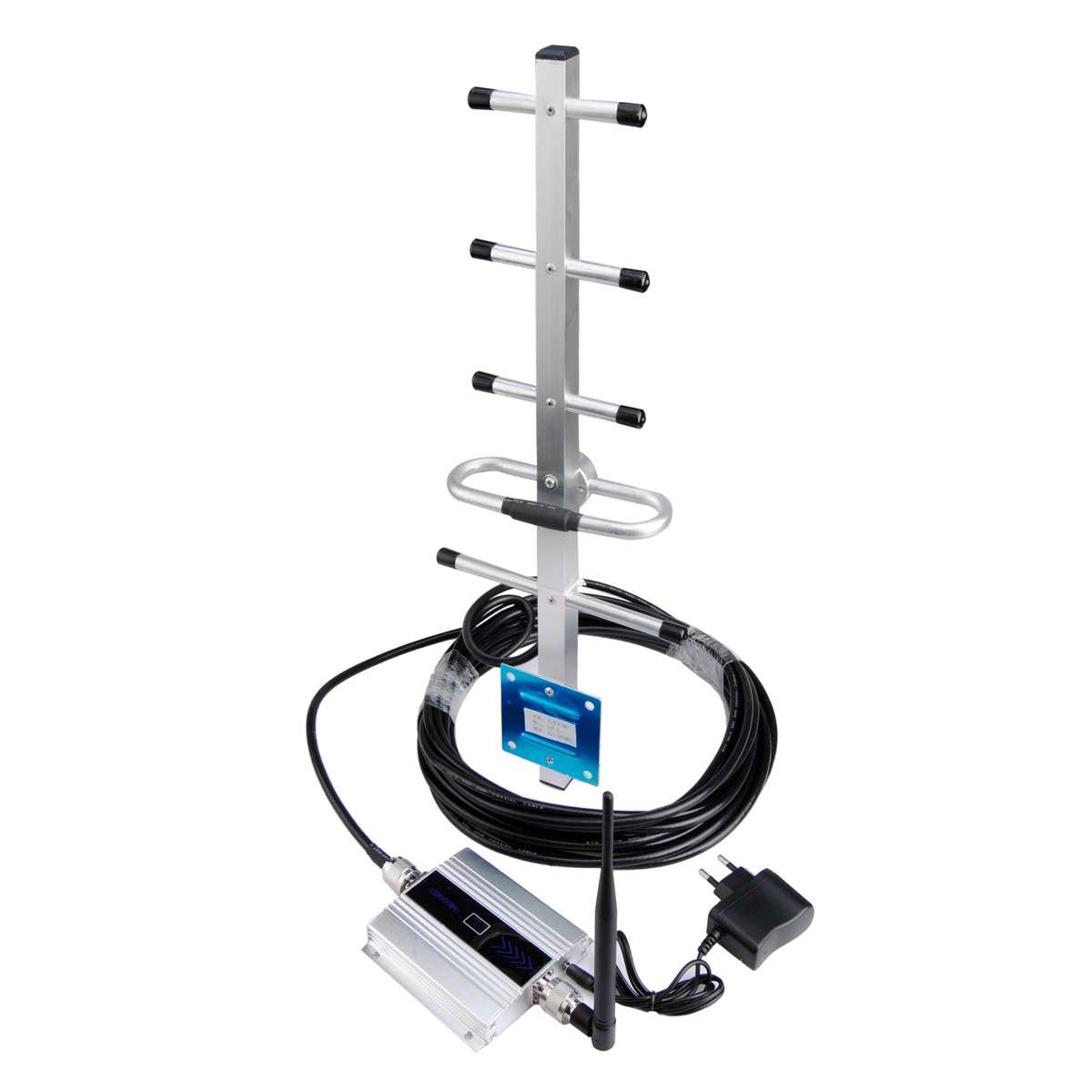

LCD Display High Gain GSM 980Mhz Signal Booster Amplifier with 20M Cable + Yagi Antenna

Description :

LCD Display High Gain GSM 980Mhz Signal Booster Amplifier with 20M Cable + Yagi Antenna

This mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. It is ideal for house, home, office use.



Specification :

1. Frequency range : Up link GSM 890-915
                                   Downlink GSM 935-960
2. Gain(dB) GSM Up link : 55
3. GSM Downlink : 60
4. Gain adjustable range : MGC 30dB
5. Output power(dBm) :   20
6. Pass band ripple GSM : 4dB
7. Guard band rejection : GSM(BW-60dB) 42 MHz (BW-70dB) 45 MHz

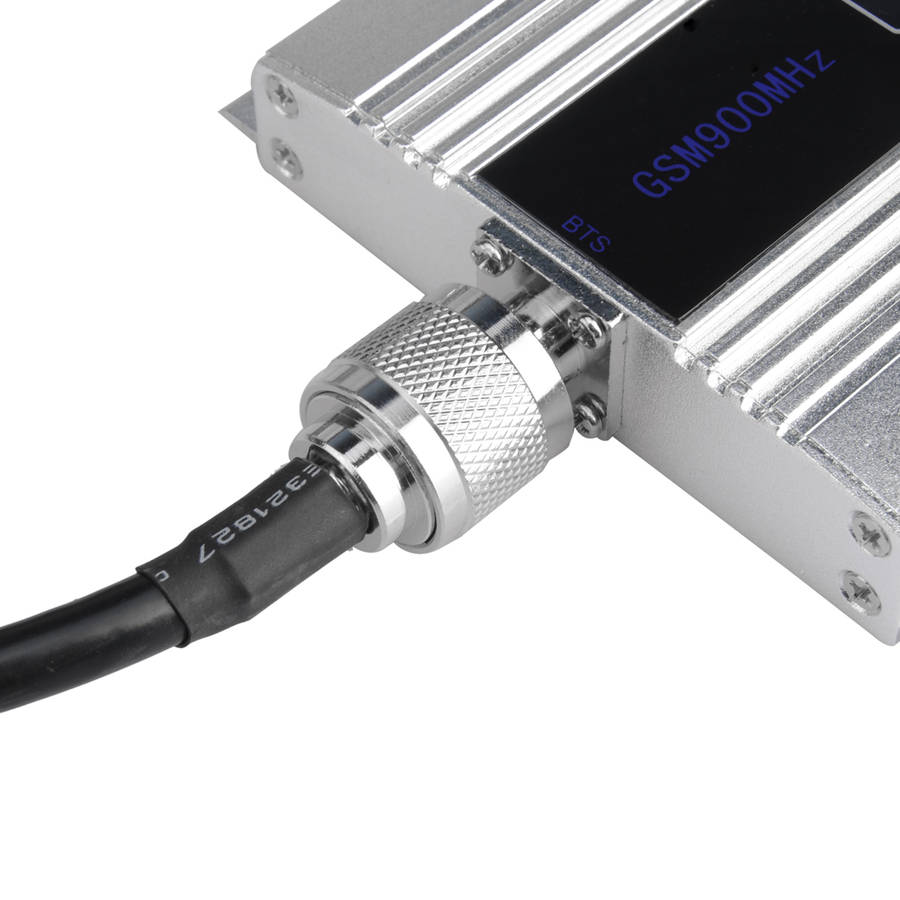

8. I/O impedance : 50/N Connector
9. I/O return loss : ≤-10dB
10. Noise igure : ≤-8dB
11. Intermodulation attenuation (Po=13dBm) : ≥40dBc
12. Transmission Delay : ≤0.5us
13. Ambient temperature : -10~50
14. Power supply : AC110-220V±10% 45~55Hz
15. Antenna Type : Yagi
16. Size : 14 x 10 x 2cm(L x W x H)

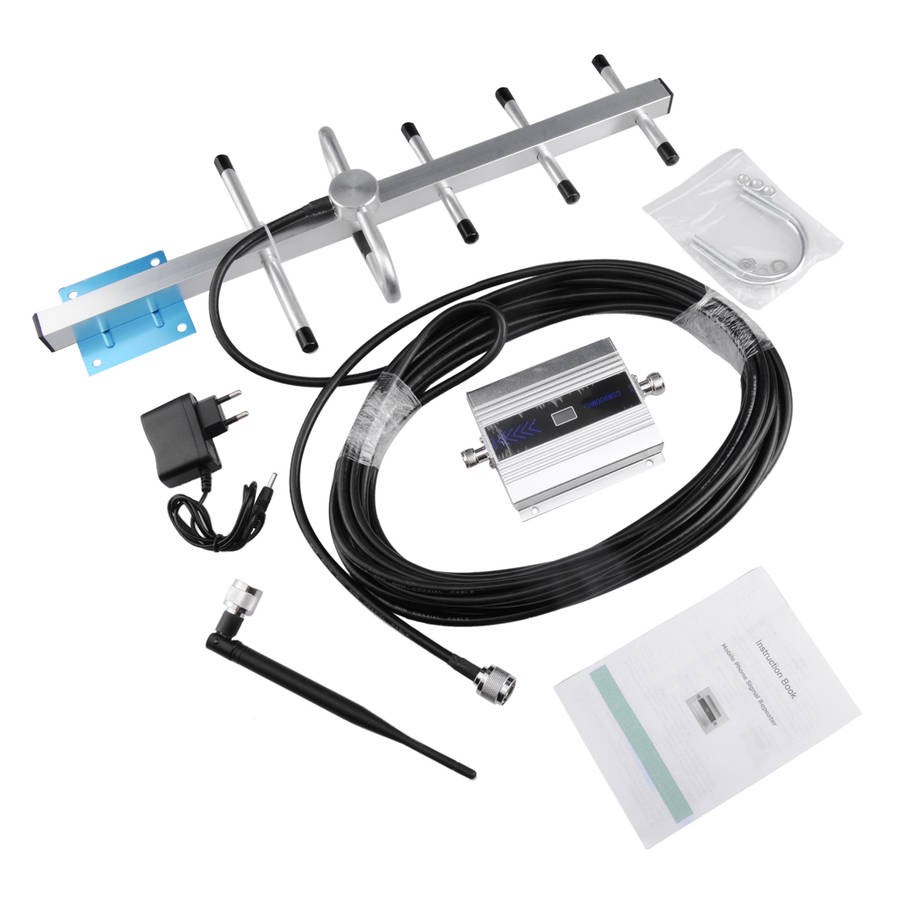

Package includeds :

1 x GSM Signal Booster

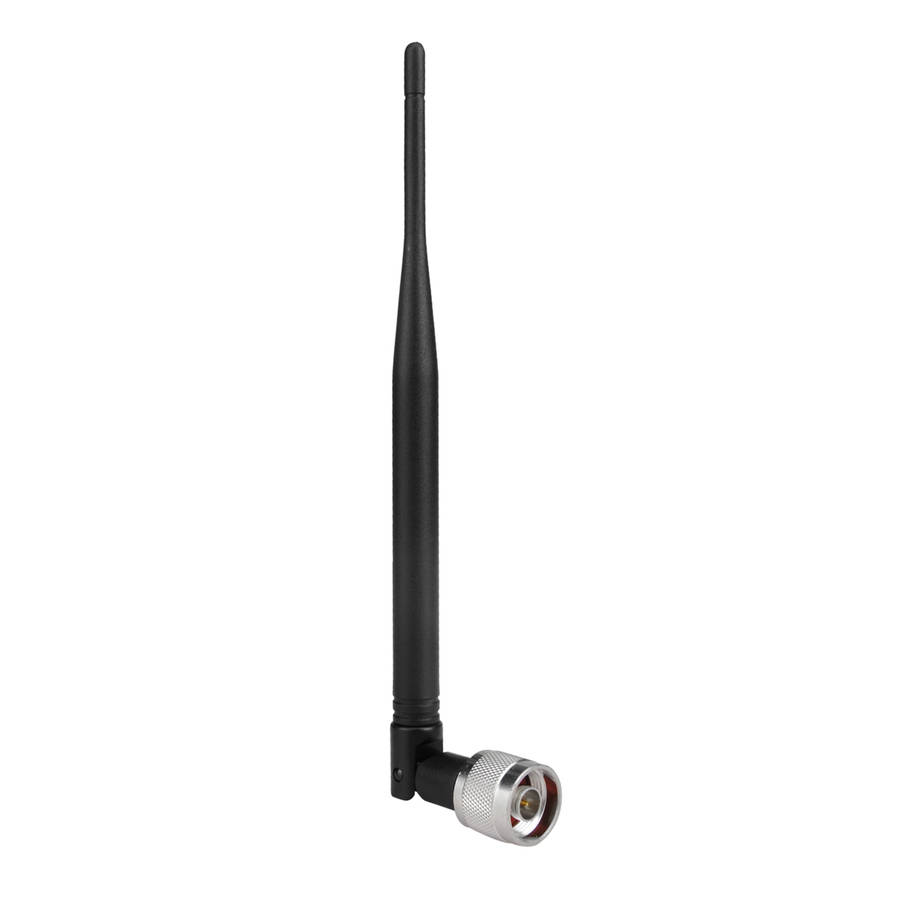

1 x Indoor antenna

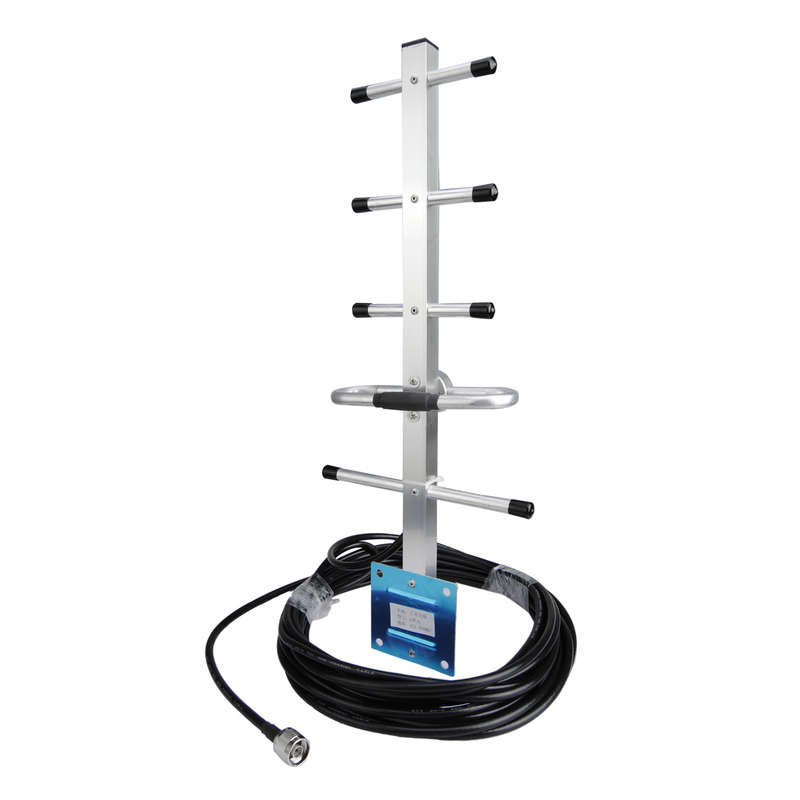

1 x Outdoor Yagi antenna (comes with 20m cable)
1 x Power adapter (Comes with a mini plug adapter according to your country :)
1 x User Manual
