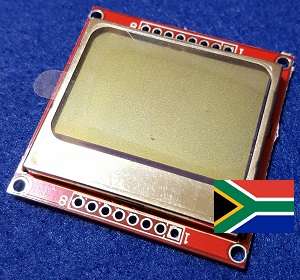

Nokia 5110 LCD Module

• 84 x 48 dot matrix LCD
• serial interface
• Support different types of MCU, such as the SPI,MCS51 serial mode 0 of AVR .
• Transfer rate up to 4Mbps
• Very compact and integrated design
• lower than 200μA power requirement, with power-down mode.
• Power supply voltage: 2.7V-3.3V
• Data interface level: 2.7-5V
• Backlight power supply voltage: highest 3.3V
• Module size: 43.6mm x 43.1mm(width x height)
• Backlight: Blue
• Mounting holes in corners
• Provided with two rows wiring ports, arranged as follows:

1ï¼ÂÂÂŽRST--------- reset
2ï¼ÂÂÂŽCE------------chip selection
3ï¼ÂÂÂŽDC-----------data/commands choice
4ï¼ÂÂÂŽDIN-----------serial data line
5ï¼ÂÂÂŽCLK------------serial Clock Speed
6ï¼ÂÂÂŽ3.3V------------VCC
7ï¼ÂÂÂŽLIGHT--------- backlight control terminal
8ï¼ÂÂÂŽGND-----------power negative
