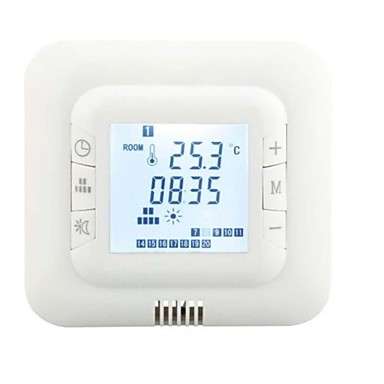

LCD Screen Digital Programmable Underfloor Heating Thermostat Room Temperature Controller (Max 16A, AC110V-220V, White)..!
Product Information
Key Features
1. Suitable for almost all electric under floor heating systems
2. 5+2 or 7 days 4 periods programmable. Clock controlled program mode. Each day can be split into 24 single hour periods. Each of these periods can be set to operate at either a comfort temperature, or an energy saving temperature. Both temperatures (Between 5'C & 30'C) are chosen by the user. The thermostat will operate automatically according to the time and temperature that has been set for each period. (The energy saving mode can be set to a temperature low enough that effectively means the heating is turned off) A typical example of a set program would be:
Monday
Comfort mode @25'C from 6:00AM to 9:00AM
Energy save mode @14'C from 9:00AM to 4:00PM
Comfort mode @25'C from 4.00PM to 10.00PM
Energy save mode @14'C from 10.00PM to 6.00AM
3. 7-day timer. Each day of the week can be programmed individually
4. Holiday mode - Temperature can be easily switched to a low level or off whilst the room is unoccupied for a long period of time
5. The scheduled event program can be easily overridden at any time and the operating temperature can be set to a desired level. The thermostat will then revert back to the pre-set temperature at the next change of mode
6. The scheduled event program can be switched off allowing manual operation of the thermostat if desired
7. Combination of temperature sensor options - Air sensor / Floor sensor or Air & Floor sensor
8. Over heating protection cut out function. (Temperature to be set by user)
9. Floor sensor with 3m cable included
10. Air sensor built into thermostat
11. Battery backup to save settings during power failure
12. It is also compatible with non-underfloor heating system as sensor can be disabled
13. The backlight can be automatically closed in working mode if you don't operate it continuously
14. The thermostat will switch a maximum load of 16amps. (Please see advice below)
15. Blue back lit LCD screen
16. Two sensors: built-in sensor and floor sensor
17. 1 year manufacturer's warranty
18. Full operating & installation instructions included
Manufacturer Specs
Power Supply: AC220V +/- 10% 50/60Hz (also compatible with 110V)
Max Load: 16A
Power Consumption: 2W
Setting Range: 5-30'C
Floor Overheating Protection: 30-60'C
Switching Differential: 1.0'C
Ambient Temperature: -10-60'C
Protective Housing: IP20
Housing Material: ABS & PC Fire-resistant
Certification: CE
Floor Sensor: Rubber-thermoplastic NTC 10K
Internal Air Sensor: NTC 10K
Dimensions (cm): L9.5*W9.5*H8
Weight (kg): 0.26
