LCD1602 RGB Module, 16x2 Characters LCD, RGB Backlight, 3.3V/5V, I2C Bus
New
Indicative market price: R352.21
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Henley on Klip, Meyerton
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Tuesday, 14 May.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 2 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
South Africa
Product code:
2373
Bob Shop ID:
613701577
Features at a glance
- Incorporates character LCD panel LCD1602
- Adjustable RGB backlight color, up to 16M (2563) backlight colors in theory
- I2C control interface, only two signal pins are required, saving the IO resource
- Compatible with 3.3V/5V operating voltage
- Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)
Specifications
- Operating voltage: 3.3 ~ 5V
- LCD controller: AiP31068
- Communication Interface: I2C
- RGB driver: PCA9633
- Display Panel: character LCD
- Display size:64.5 16.0mm
- Characters: 16 2
- Dimensions: 87.0 32.0 13.0mm
- Backlight colours: 16M
- Operating voltage: -20 ~ 70

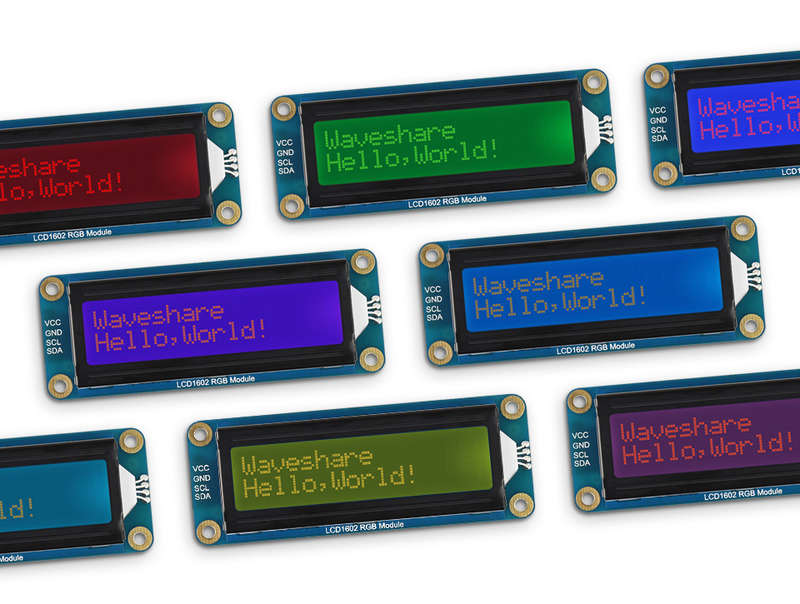

Adjustable RGB backlight color - up to 16M colors available

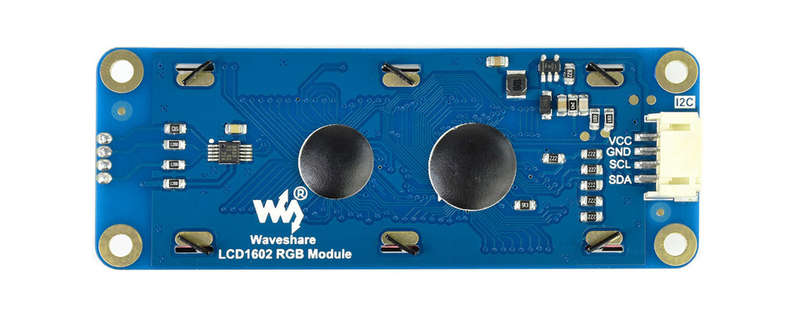

I2C control interface
for connecting with host boards like Raspberry Pi / Arduino...
| VCC | 3.3V ~ 5V power input |
| GND | GND |
| SCL | I2C clock pin |
| SDA | I2C data pin |
Hardware connection

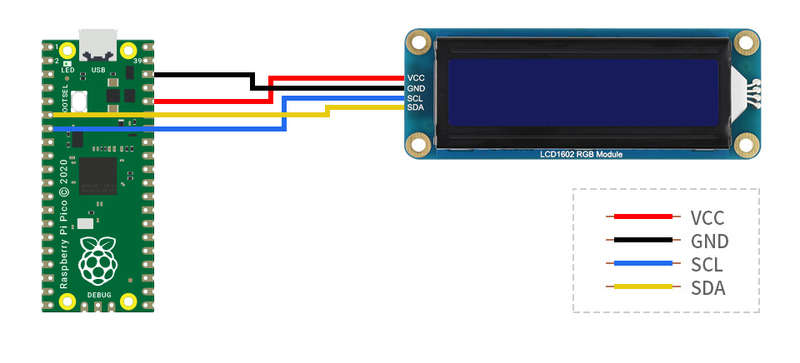

connecting with Raspberry Pi Pico

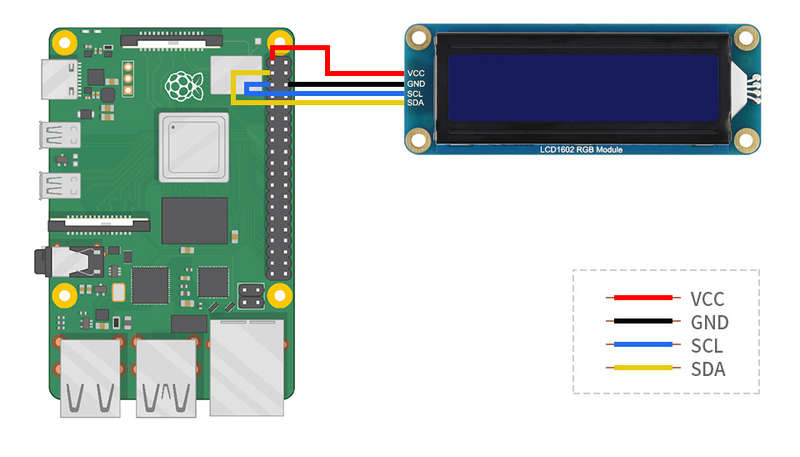

connecting with Raspberry Pi

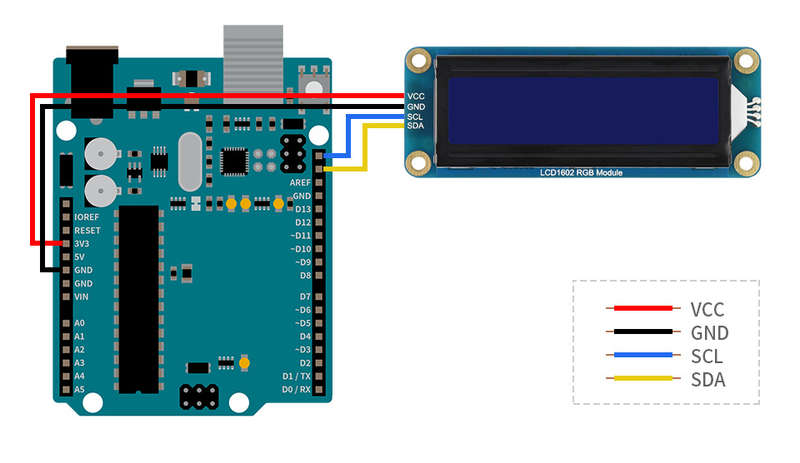

connecting with Arduino board

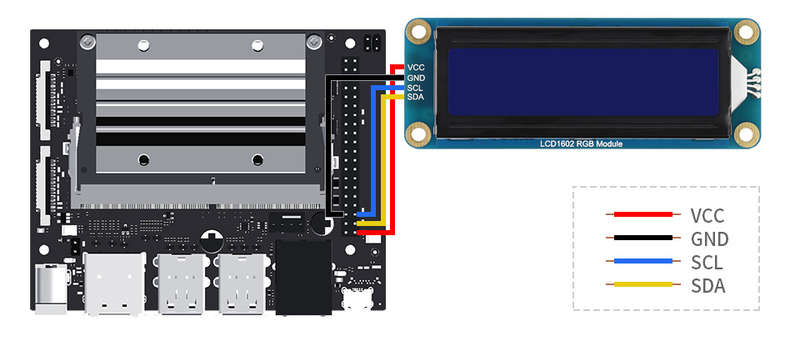

connecting with Jetson Nano Developer Kit

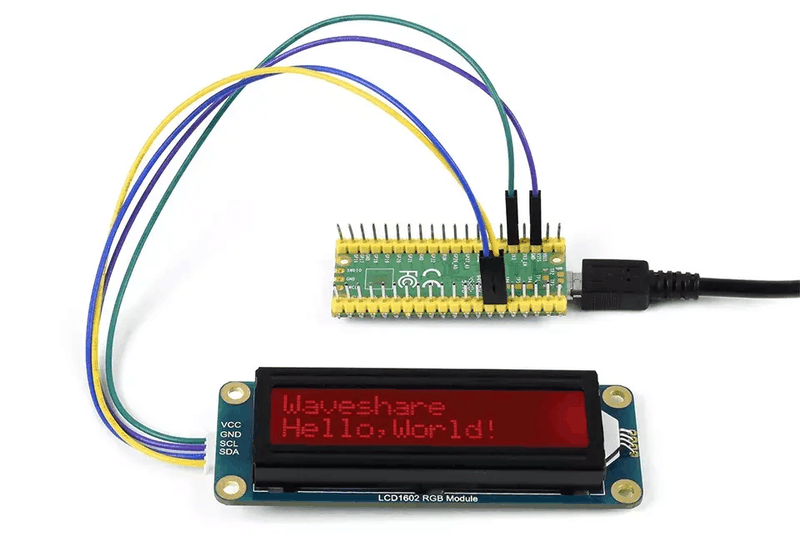

Demonstration

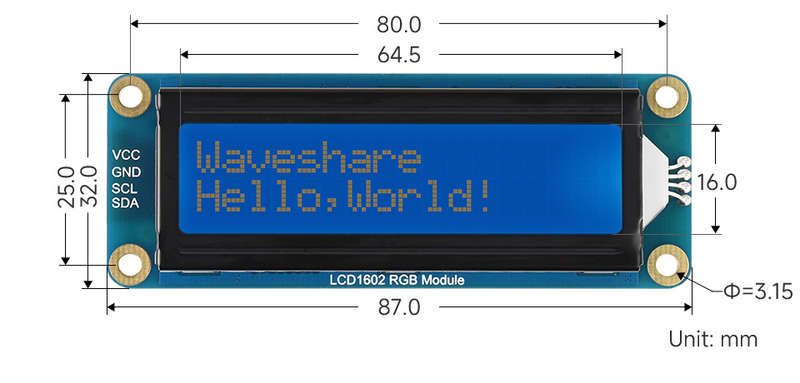

Outline dimensions:
What's in the box?
1 x RGB 1602 LCD
1 x RGB 1602 LCD
Resources
Wiki: LCD1602_RGB_Module
