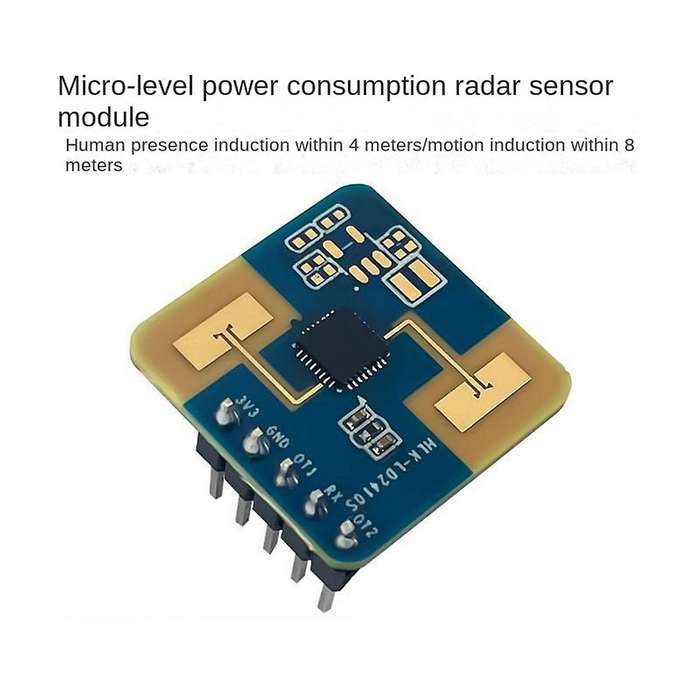

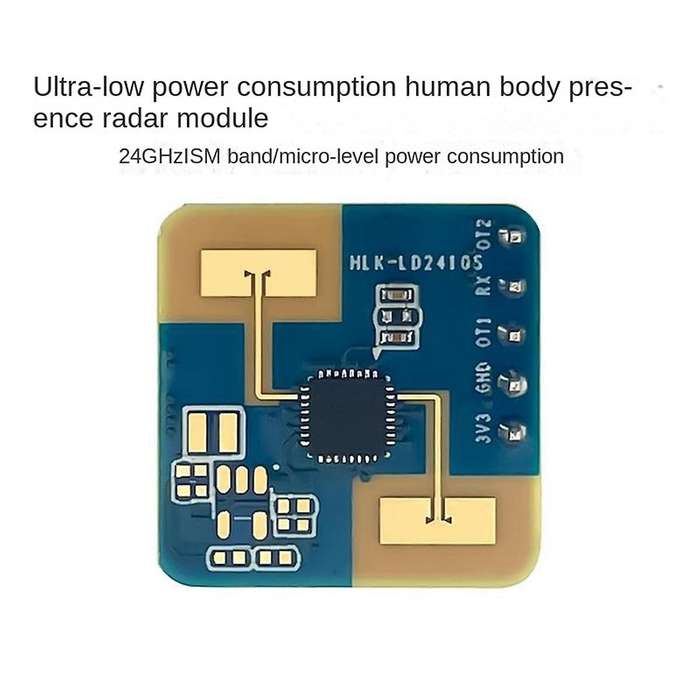

LD2410S Motion Detection Radar Sensor Module 24GHz Human Presence Radar Sensor, for Smart Home

Equipped with a single-chip smart millimeter wave sensor SoC and smart algorithm firmwareWall mountable, with a large detection anglecompliant with 24GHz ISM band, No Commission Spectrum RegulationsOffers a wide voltage range of 3.0V to 3.6VMinimal operating current of 0.1 mA at 1Hz reported frequencyFrequency: 24G-24.25GHzModulation : FMCWDetection distance: motion detection within 8m\/sensor within 4mDetection angle: 60Power supply: 3.3V(Typ.)Current: ~0.12mA(Typ.)Output serial port level: 3.3VSweep bandwidth: 250MHz (in line with CE\/FCC certification standards)Maximum equivalent omnidirectional radiated power: 10dBmData refresh cycle: 40s (Typ. configurable)Data format: Serial port ASCII output\/high and low levels 3.3V&Package form: Default with pinsMaterial: PCBcolour: bluePackage Contents: 1 x Sensor ModuleOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
