LD2415H Radar Module 24G Millimeter Wave Vehicle Speed Feedback Long Range Speed Sensor Serial Commu

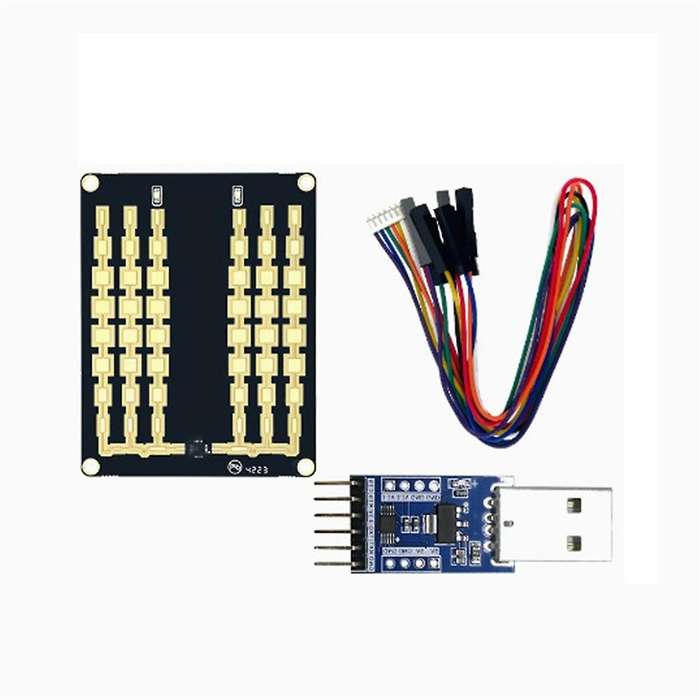

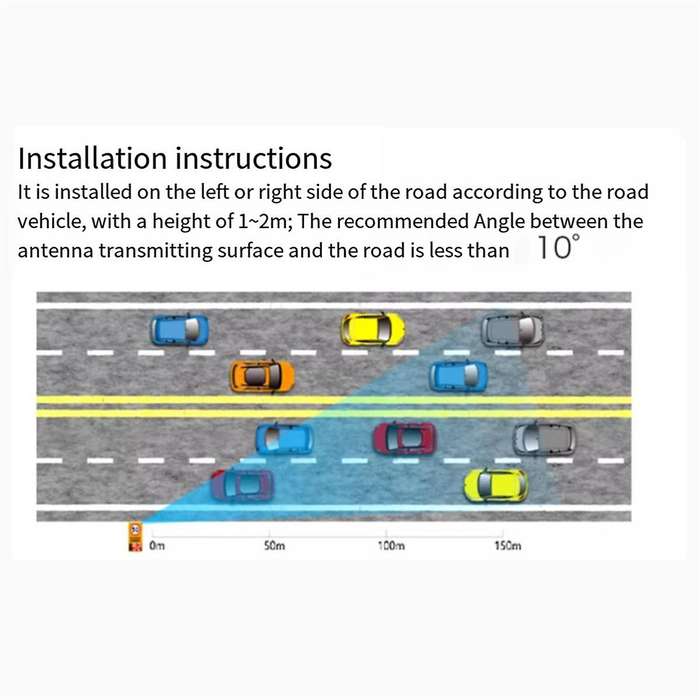

1. LD2415H Speed Radar Is A Millimeter-Wave Radar Module Integrating Microstrip Antenna, Radio Frequency Circuit and Signal Processing Circuit. It Directly Outputs The Speed Information Of The Target and Can Be Used for Long-Distance Car Speed Measurement Of More Than 180 Meters. Using An Integrated Radio Frequency Chip, The Frequency Stability Is Extremely High and The Speed Measurement Accuracy Reaches 1km\/H.2. Widely Used In Speed Reminders and Early Warnings On Road Curves and Road Openings On Various Types Of Roads Such As Highways, Urban Trunk Lines, City and County Highways, and Urban and Rural Trunk Roads.3. Install It On The Left Or Right Side Of The Road According to The Direction Of Road Vehicles, with A Height Of 1~2m; The Recommended Angle Between The Antenna Emission and The Road Is Less Than 10.4. This Radar Only Detects Relatively Moving Targets In The Inspected Area, and Does Not Detect Completely Stationary Targets. The Output Result Is Information Such As The Speed Of The Nearest\/Fastest Target In Relative Motion Within The Detection Area.5. If There Are Obstructions Such As Water Or Metal In The Direction Of Radar Emission That Strongly Reflect Millimeter Wave Signals, The Radar Detection Effect Will Be Seriously Affected.Description:1. Working Frequency: 24.125Ghz (Customizable Frequency)2. Transmit Power: 18DBM (TYPE.)3. Modulation : CW4. Antenna Gain: Transmitting Antenna 16dbi\/Receiving 18.4DBI5. Detection Angle: Horizontal 40\/ Pitch Angle 166. Detection Distance: 180m7. Measuring Range: 1~240km\/h8.Output Power Eirp:20DBM9. Speed Measurement Error: Less than 1km\/H10. Power Supply Requirements: 9~24V\/Less than 50mA@12V11. Overall Dimensions: 69 x 53mm12. Working Temperature: -20~+8513.Ambient Temperature: -40~+12514. Data Format: Rs485\/Ttl Serial PortMaterial: PCBColor: as shownPackage Contents:1 x LD2415H Module1 x Serial Port Board Module1 x Connecting CableNote:Different Batches May Have Differences In Product Appearance, Color, and Printed Characters, Which Will Not Affect The UseOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
